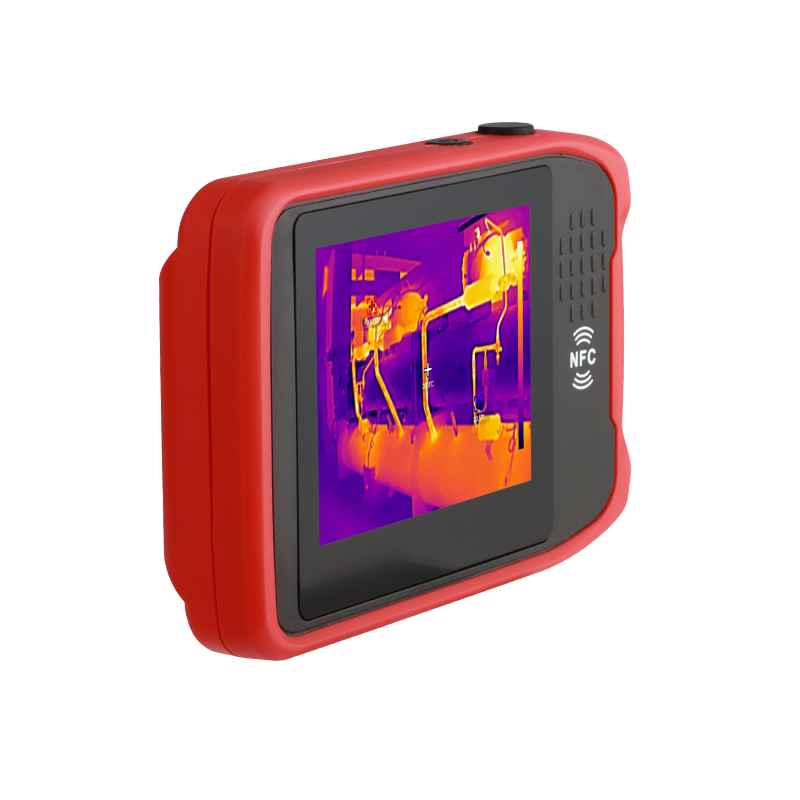

UTi720T
Portable Thermal Camera
UTi720T is with ergonomic design, perfectly fits human palm for fast detect the potential problems in building diagnosis, automotive maintenance, electrical equipments inspection, etc. industry. UTi720T features a 3.5″ touch display screen and high-performance infrared detector with 256×192 pixels to ensure the display effect of infrared thermal imaging. Thanks to the rich functions such as Smart meter, Wi-Fi live stream, etc., helps users improve the working effect to deal with the complex and severe scenarios.
Description
Features :
- 256×192 pixels / 12μm infrared detector
- Temp. measurement range from -20℃ to 550℃

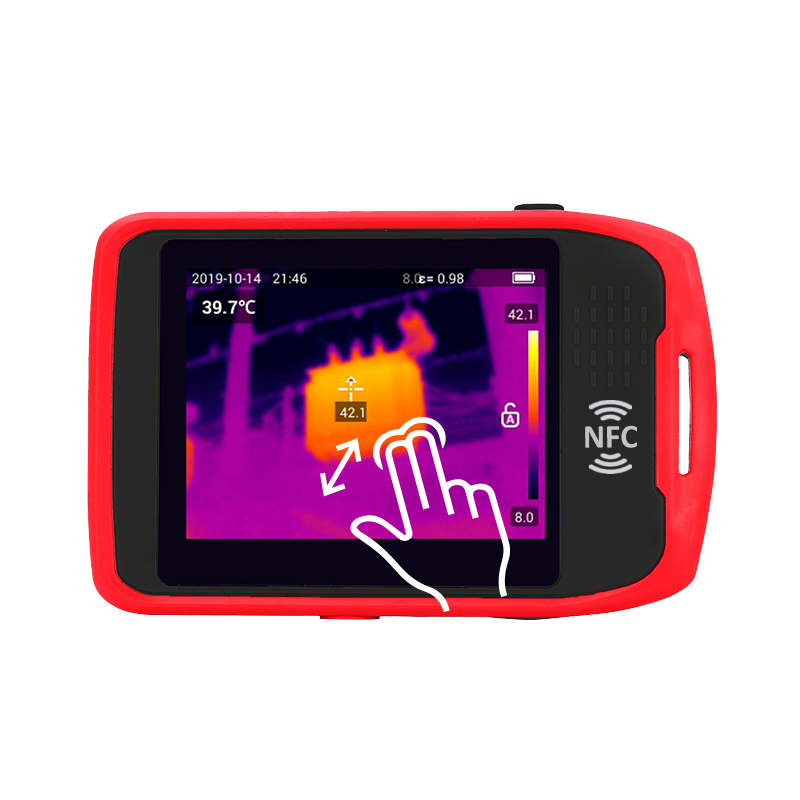

- 3.5″ Touch display screen
- 2MP digital camera
- Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
- Smart meter

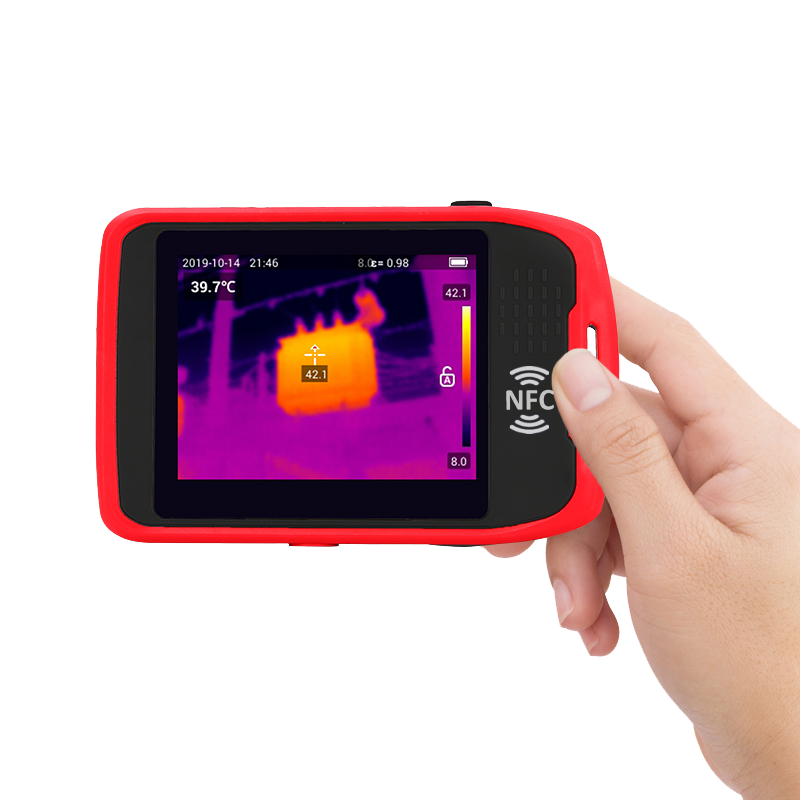

- Wi-Fi connection via NFC
- PC & APP analysis software, Wi-Fi live stream & reverse control are supported on APP
- Multi-languages OS
- LED light
- IP54 and wistand the drop of 1m height
Specifications
| Technical Data | |
| Display | 3.5” TFT Touch (640×480) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤50mK |
| Focus | Focus Free |
| Field of view(FOV) | 56°(H) × 42°(V) |
| Spatial resolution(IFOV) | 7.6mrad |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Visual image, Fusion (T-Mix), PIP |

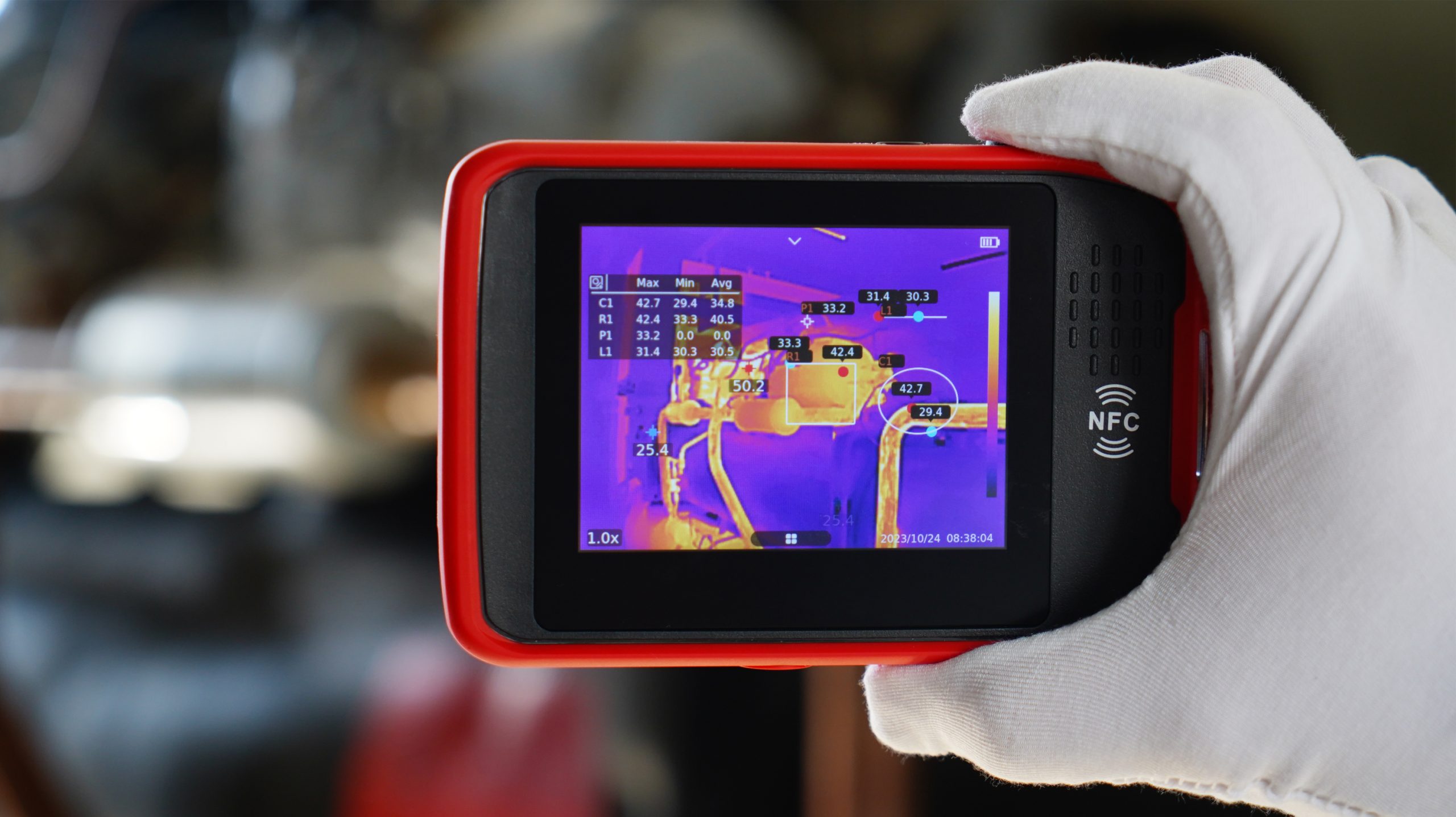

| On screen analyzer | 5 Points/1 Line/ 3 Rectangles/ 3 Circles |
| Isotherm | Auto/Manual/Above/Below/Section/Ratio |
| Hi/Lo temperature alarm | LCD animation & LED flashlight |
| Hi/Lo temperature tracking | √ |
| Digital camera resolution | 2MP |
| Digital zoom | 1.0~8× continuous |
| Video recording | √ |
| Wi-Fi / Wi-Fi live streaming | √ |
| Bluetooth | √ |
| LED lighting | √ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 1800mAh rechargeable Li-ion battery |
| Operating time | ≥2.2 hours (with Wi-Fi off) |

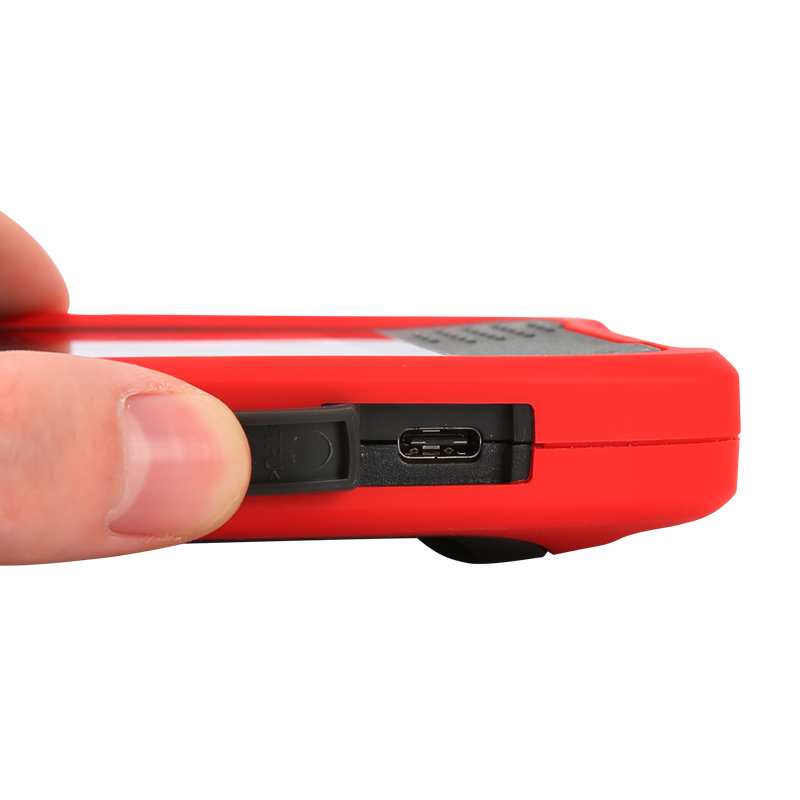

| USB | Type-C |
| Storage | 12GB Internal |
| Image storage format | JPG |
| Video storage format | .avi |
| Protection | IP54 & 1m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | EN, FR, DE, ES, IT, SV, PL, CZ |
| Weight | 213g |
| Dimension | 133.05mmx85.4mmx24.1mm |

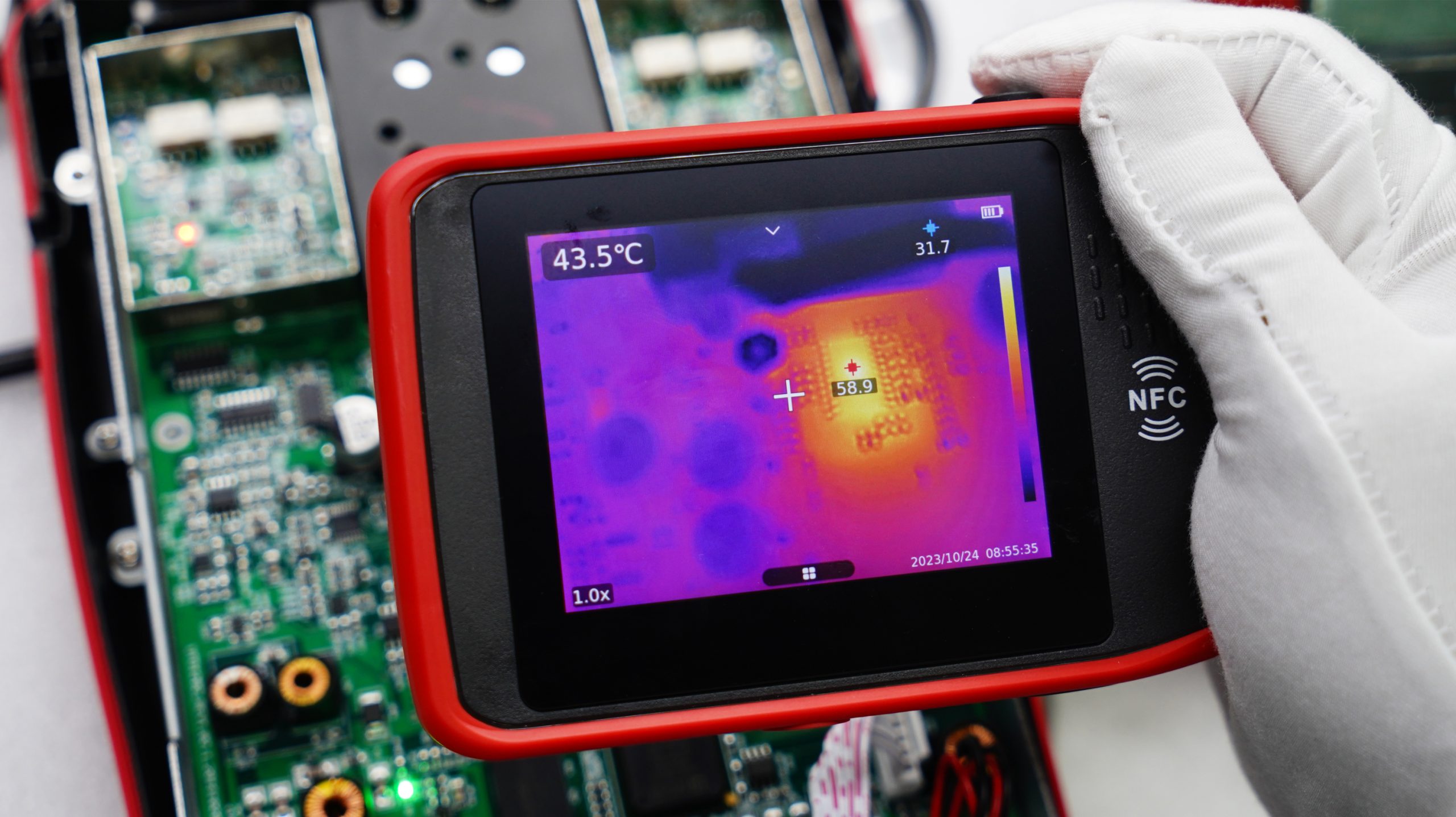

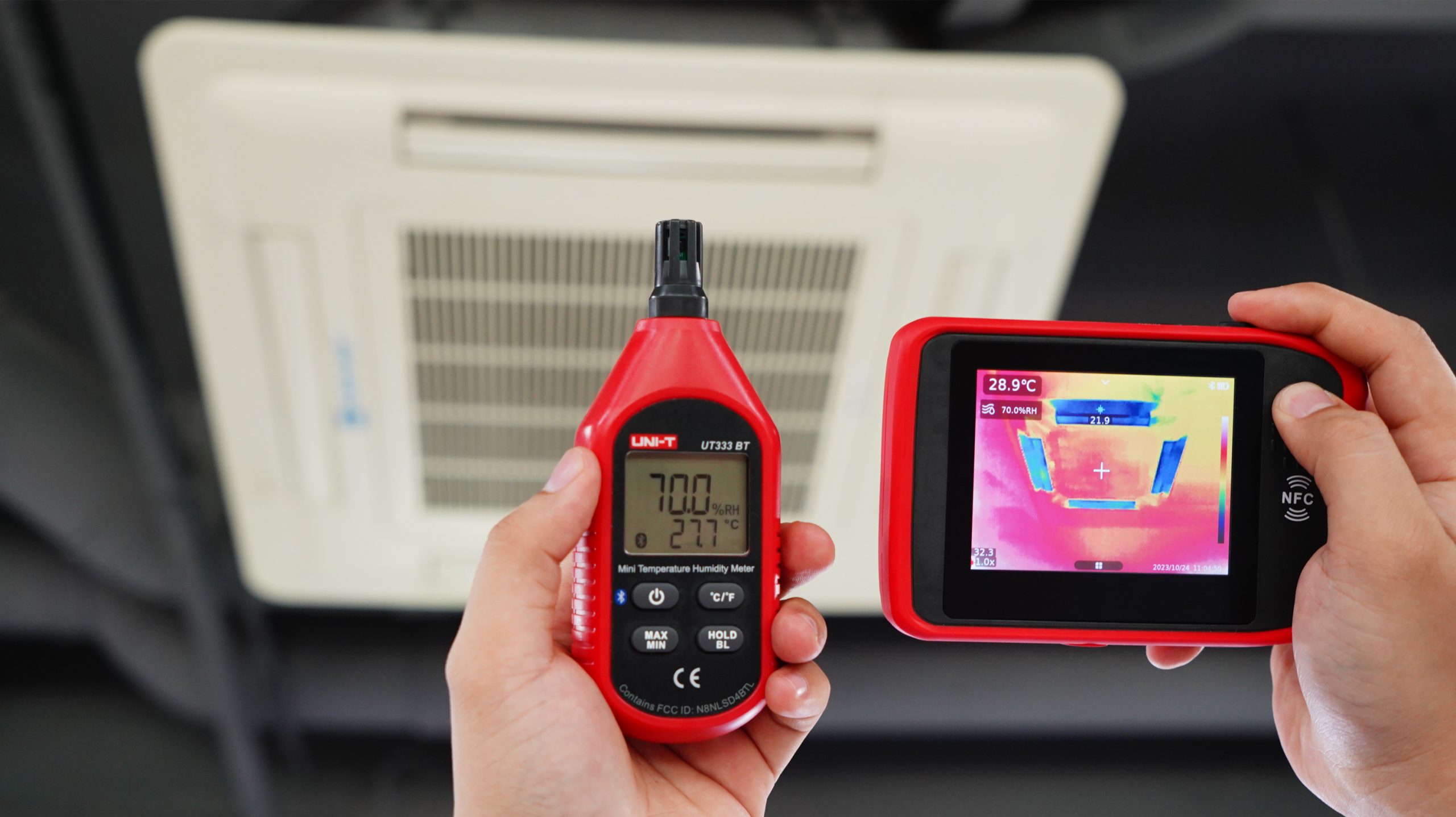

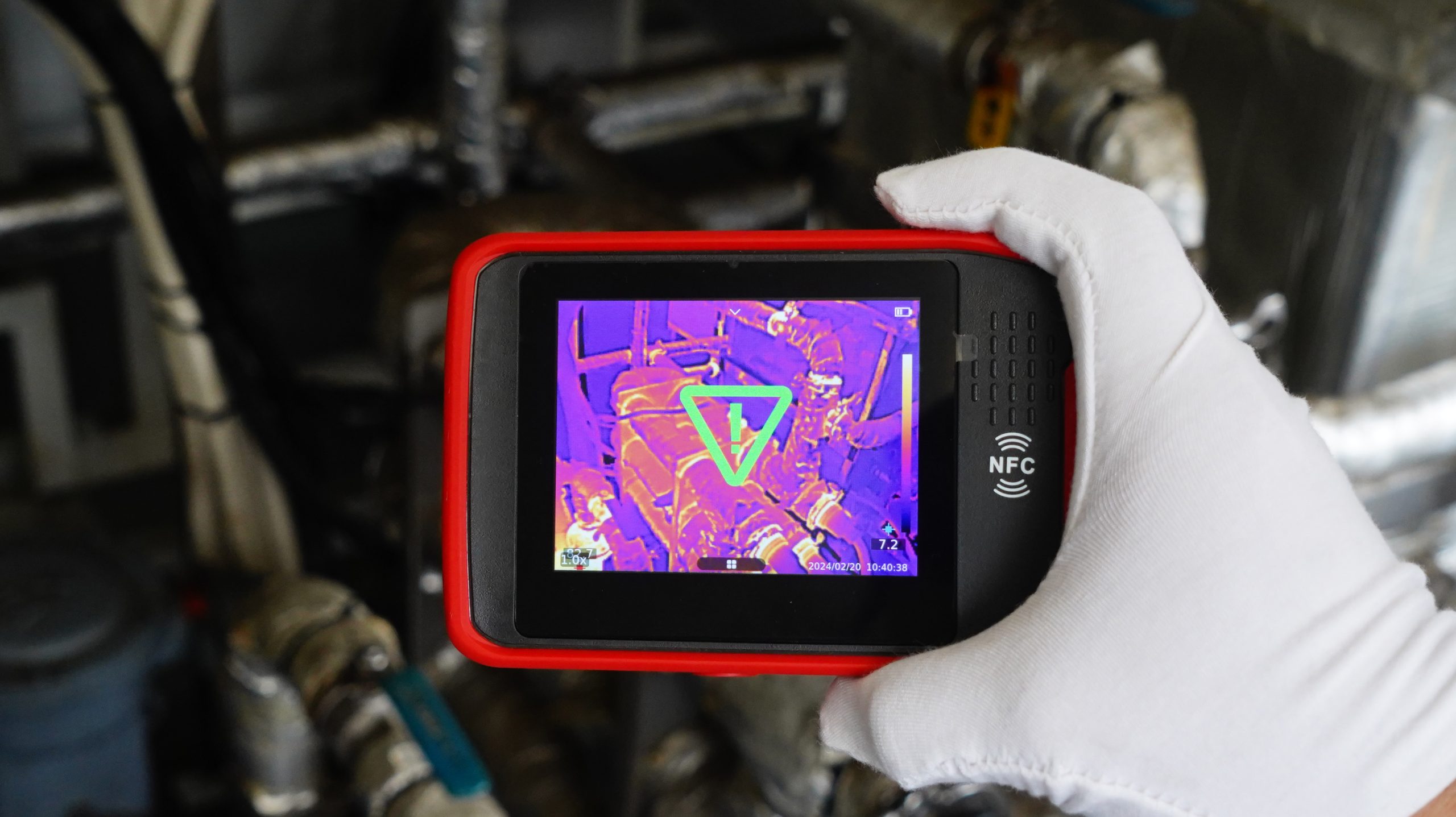

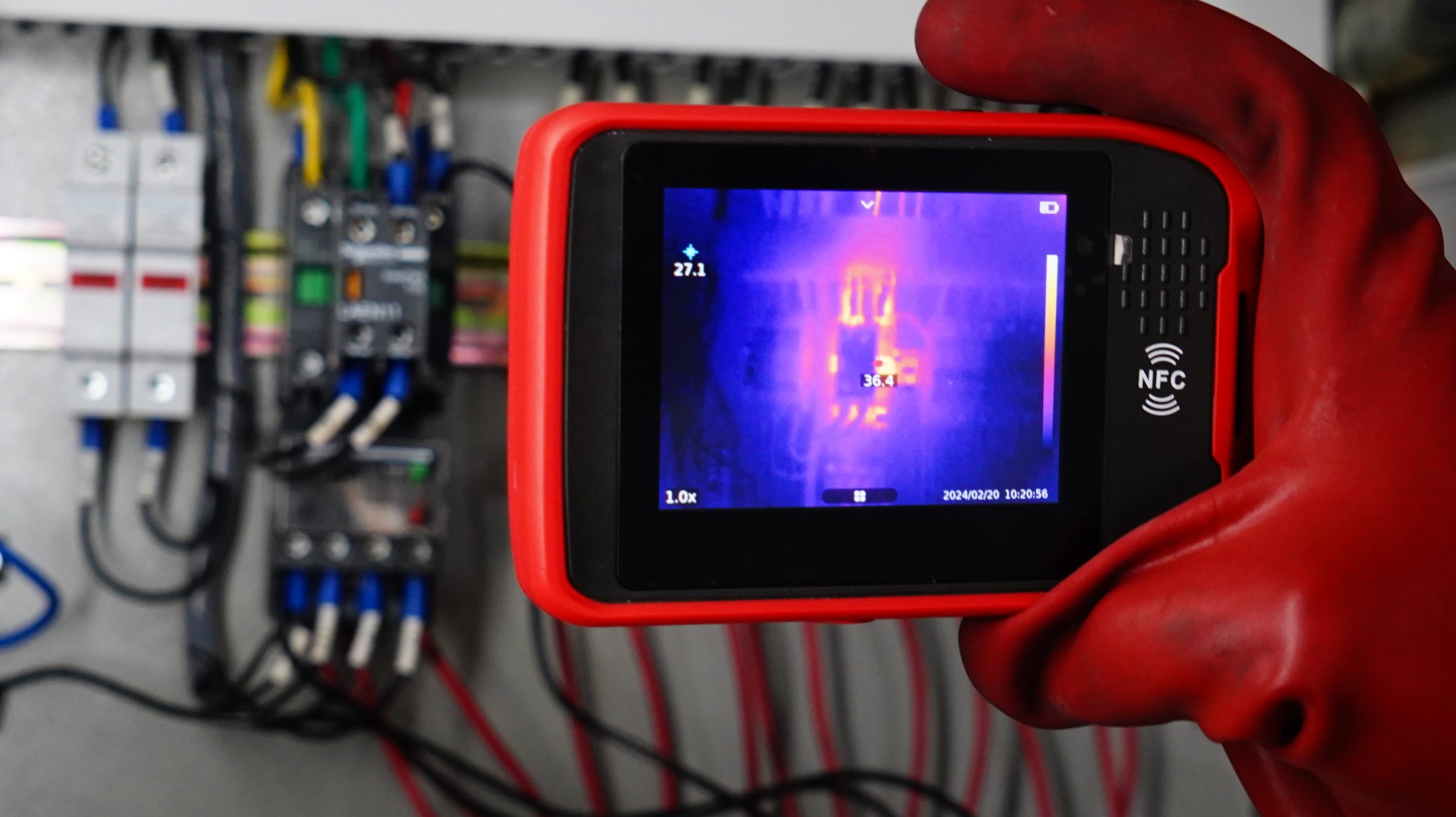

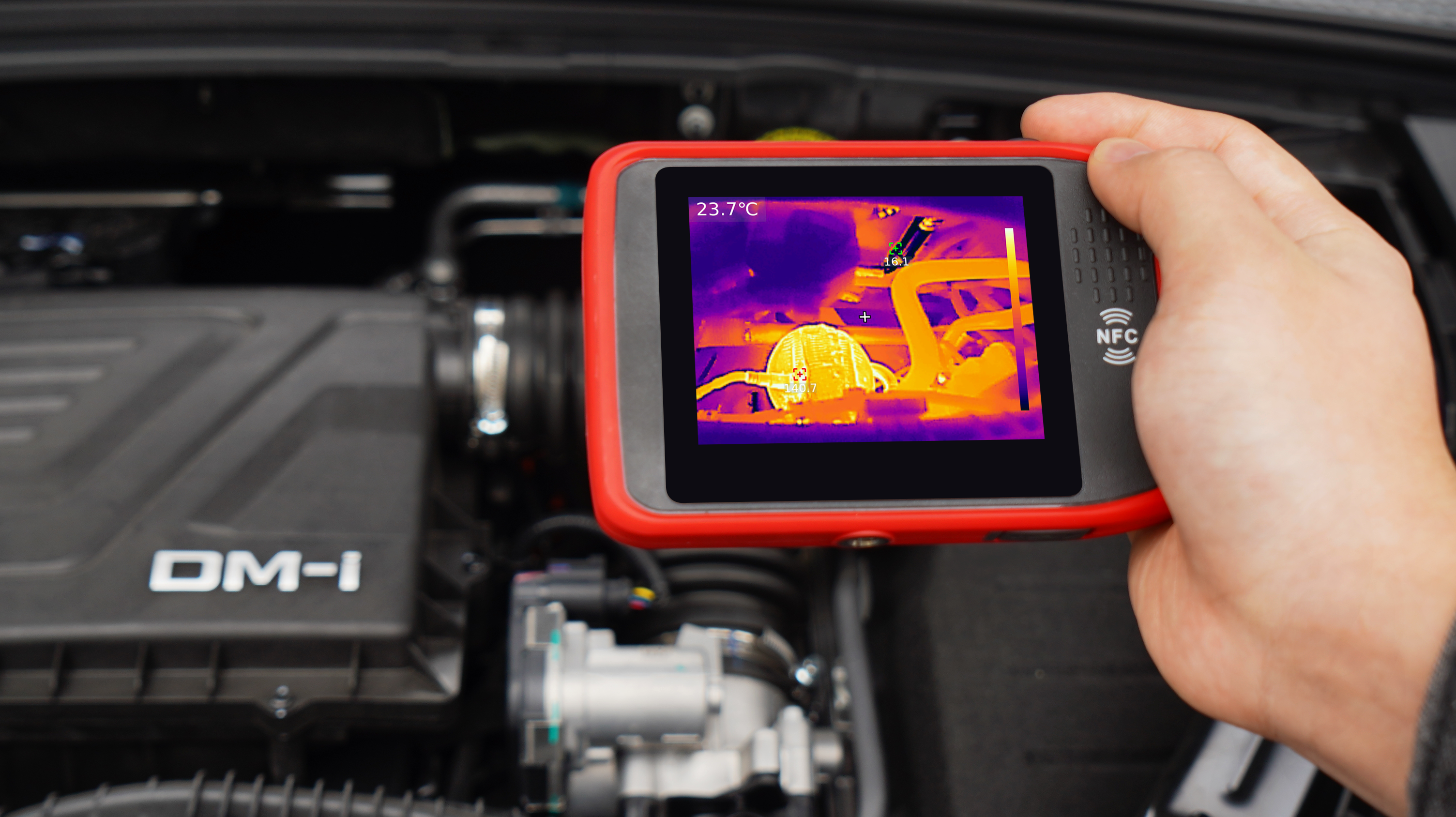

Applications
