UT568B

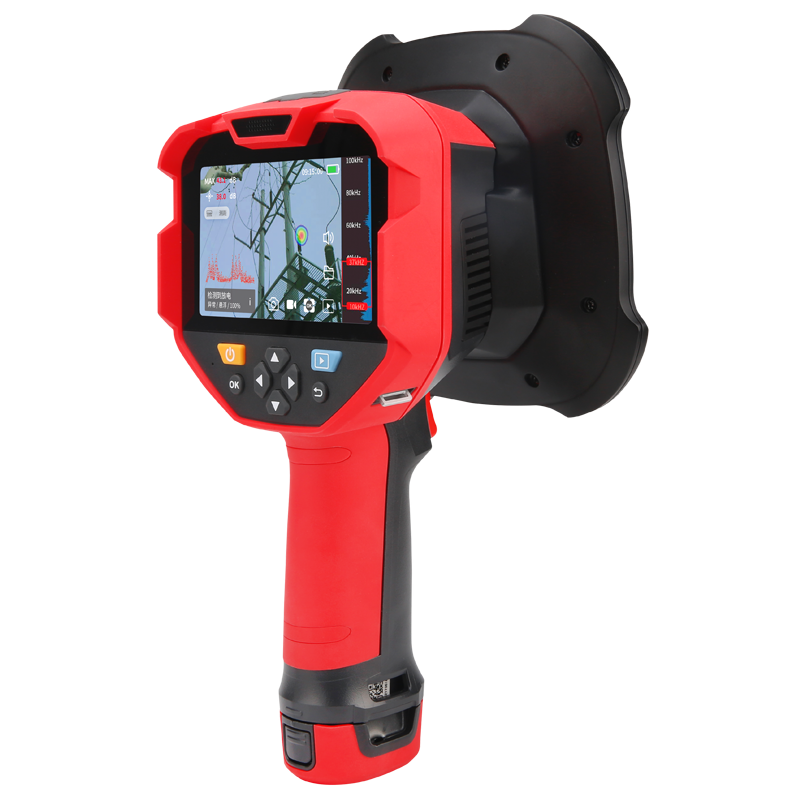

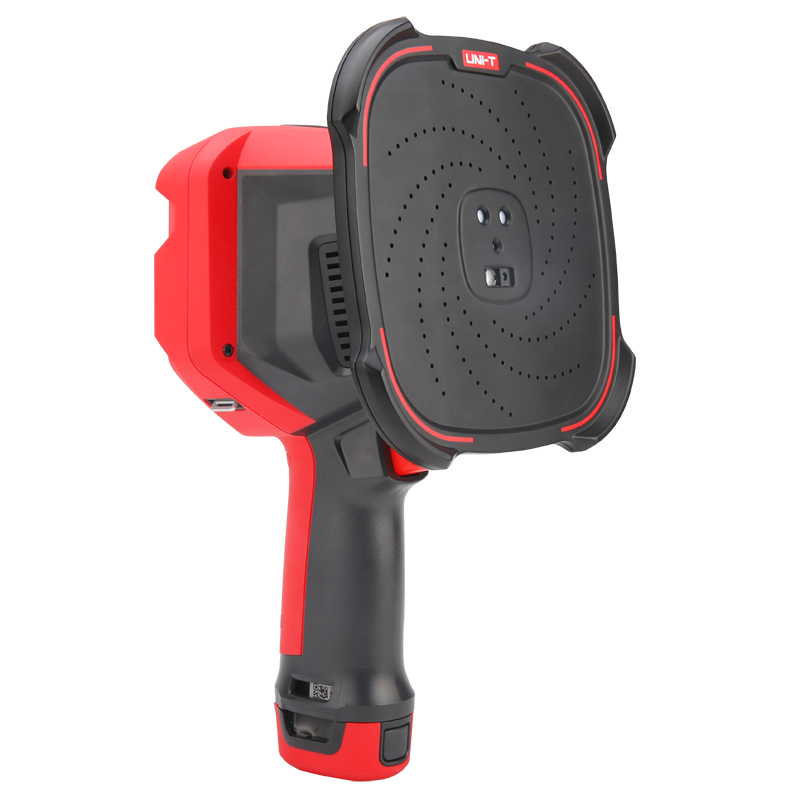

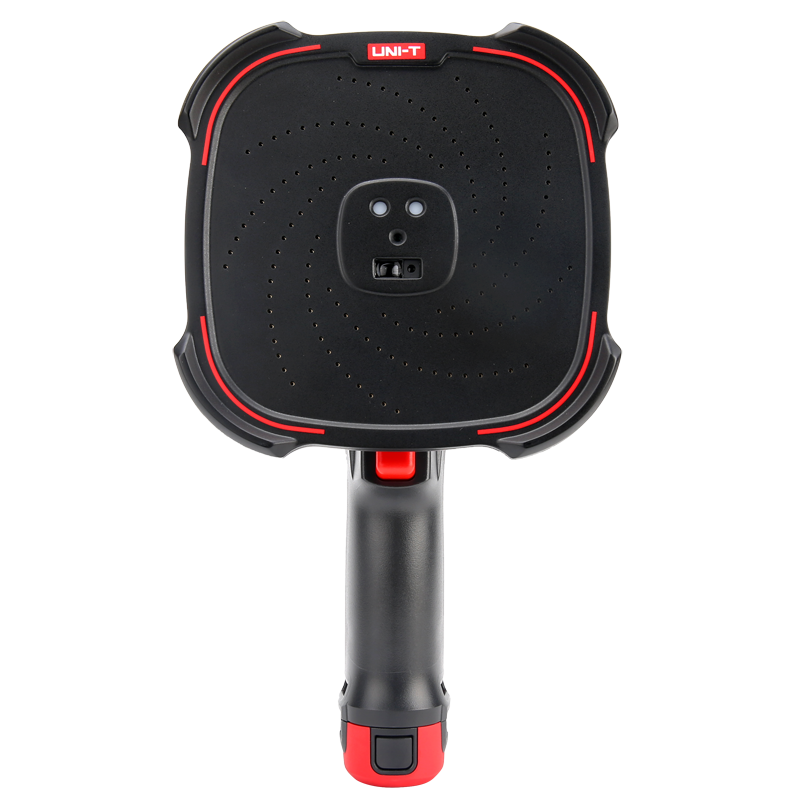

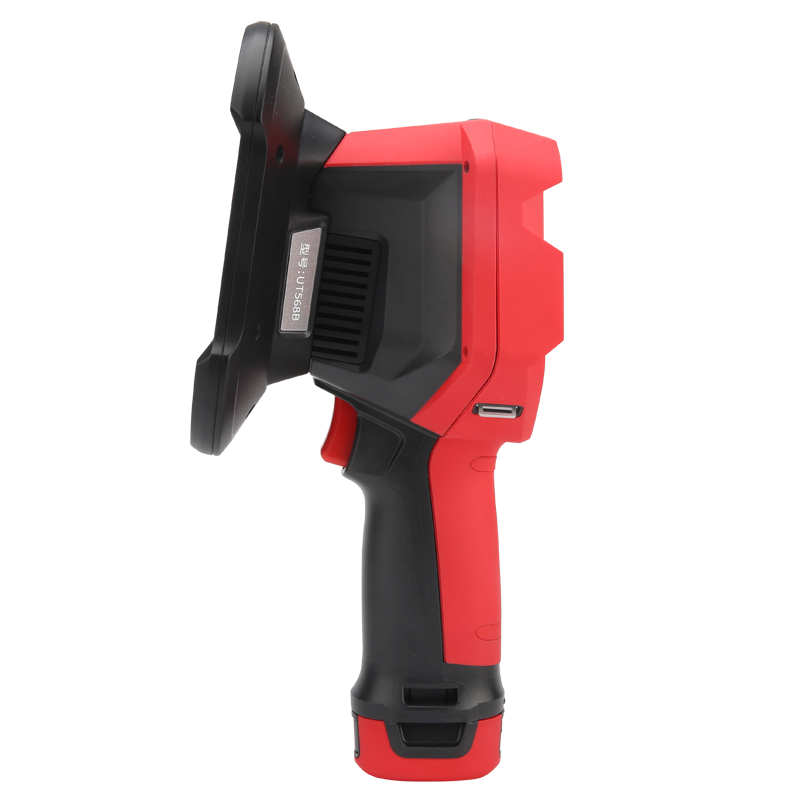

Acoustic Imaging Camera
UT568 Acoustic Imaging Camera is a handy & profession tool specially designed for compressed air leakage and partial discharge detection. With 138 low-noise MEMS microphone arrays and an adjustable bandwidth from 2kHz to 100kHz for precise sound source localization. The measurement range covering 0.3m to 150m is sufficient to handle various tricky measurement requirements. Supports to real-time display the leakage data, and fully documents and reporting your finding.
Description
Features :
- With 138 low-noise MEMS microphone channels
- Adjustable bandwidth from 2kHz to 100kHz
- Measurement range covering 0.3m to 150m
- 4.3″ touch display screen
- Sound sampling rate up to 200kHz
- With a 13MP digital camera
- LRF up to 30m
- Photo capturing & video recording
- Supplementray Lighting
- Professional analysis software (PC+APP)
- Detachable & rechargeable Li-ion battery pack
Specifications
| Technical Data | |
| Microphones channels | 138 |
| Microphones type | High sensitivity digital MEMS microphones |
| Array plane size | Approx. 150mm |
| Microphones sensitivity | -26dBFS@1kHz |
| Sound pressure sensitivity | Lower limit: <20dB Upper limit: >120dB |
| SNR(Signal to noise ratio) | 64dB@1kHz |
| Bandwidth | 2kHz~100kHz |
| Sound sampling rate | 200kHz |
| Minimum leak rate | >0.15m/s (0.5MPa, 0.5m), >0.2m/s (0.5MPa, 1m) |
| Detection distance | 0.3~150m |
| Acoustic imaging frame rate | 25FPS |
| Display | 4.3″ Touch display screen |
| FOV | 60°(H) x 40°(V) |
| Digital camera resolution(pixels) | 13MP |
| Working temperature | -20~50℃ |
| Functions | |
| Discharge detection type | Corona, Floating, Surface |
| Display mode | Single, Multi, Hologram |
| Threshold adjustment | Flitering background noise |
| LRF | 30m |
| Auto enhancement | √ |
| Photo capturing / video recording | √ |
| Wireless connection | Wi-Fi & Bluetooth |
| Annotation | Text & voice |
| General Characteristics | |
| USB | Type-C |
| Communication interface | Data transmission & report generating |
| Storage capacity | 128GB SD card |
| Image format | JPG |
| Video format | MP4 |
| Audio format | WAV |
| Languages | ZH,EN |
| Weight | 1.35kg |
| Dimension | 163mm×286mm×140mm |

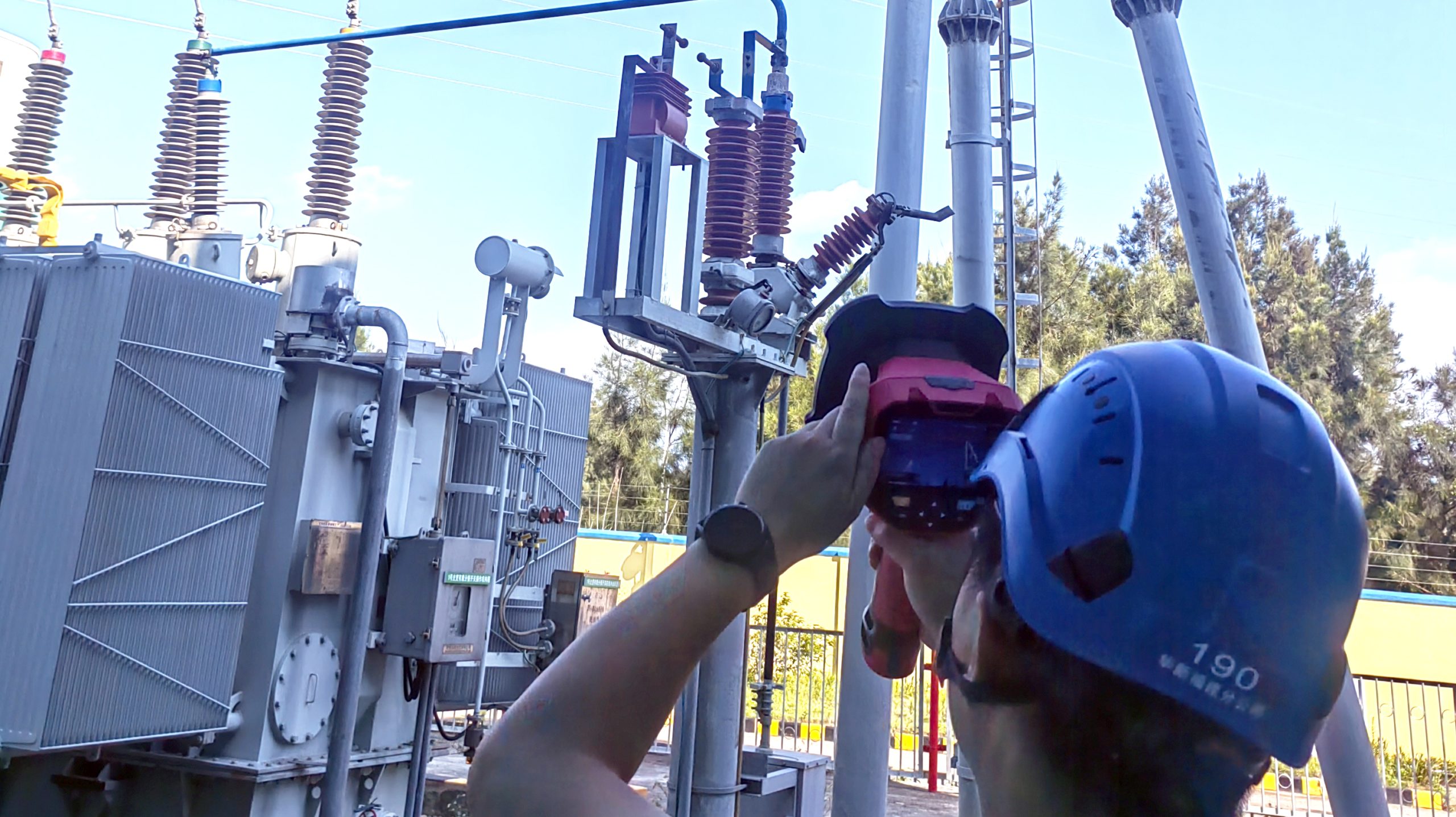

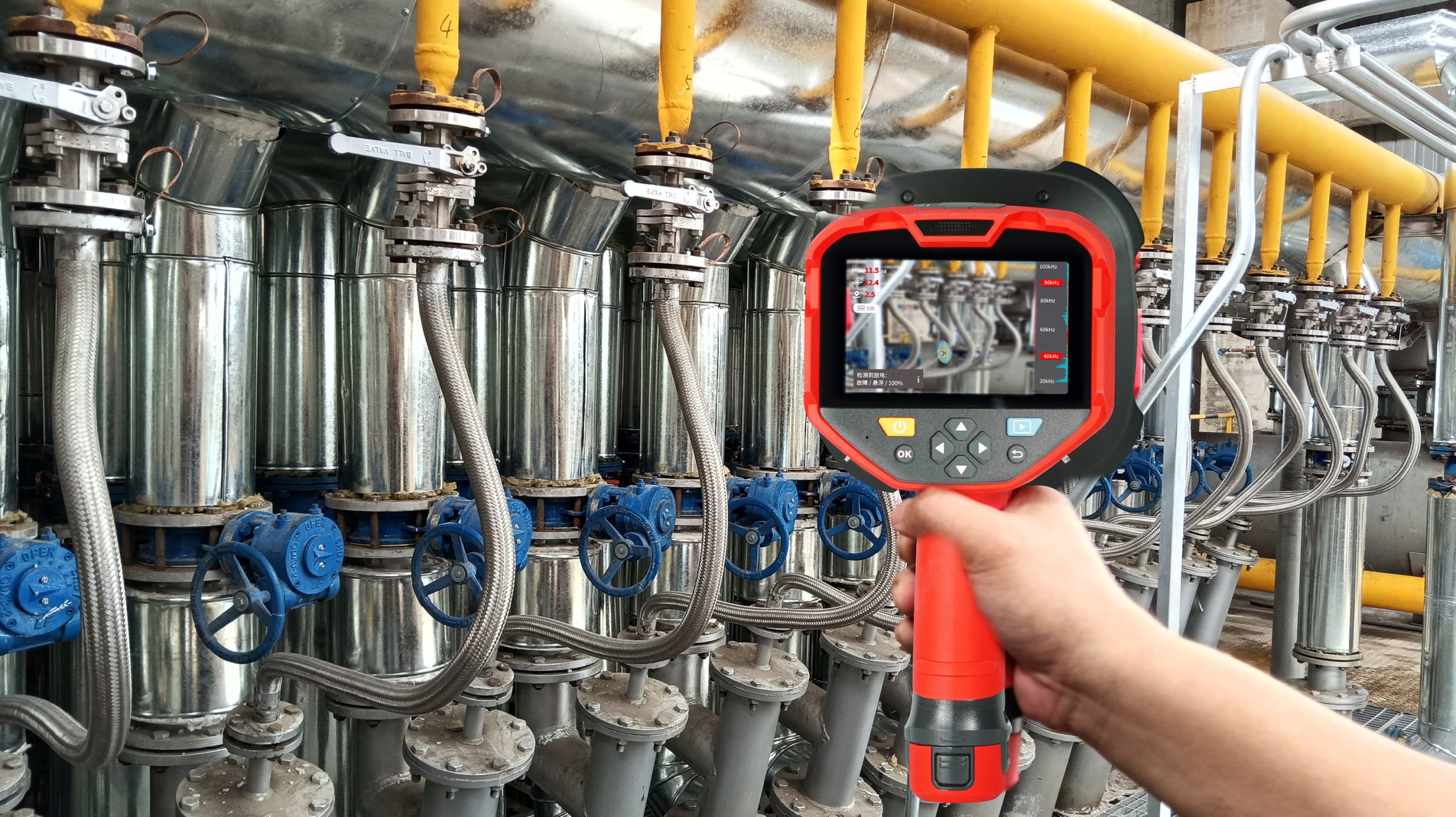

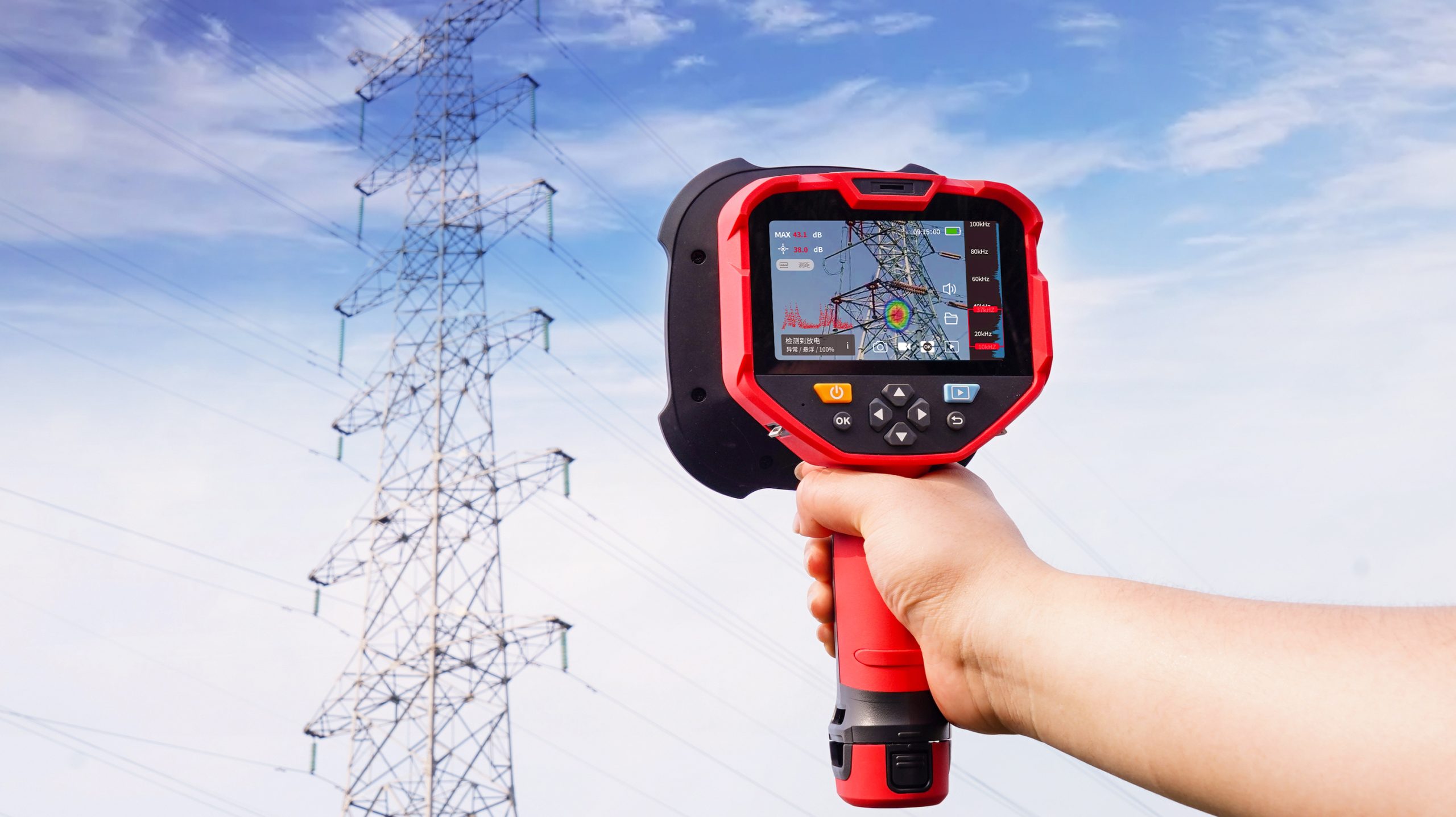

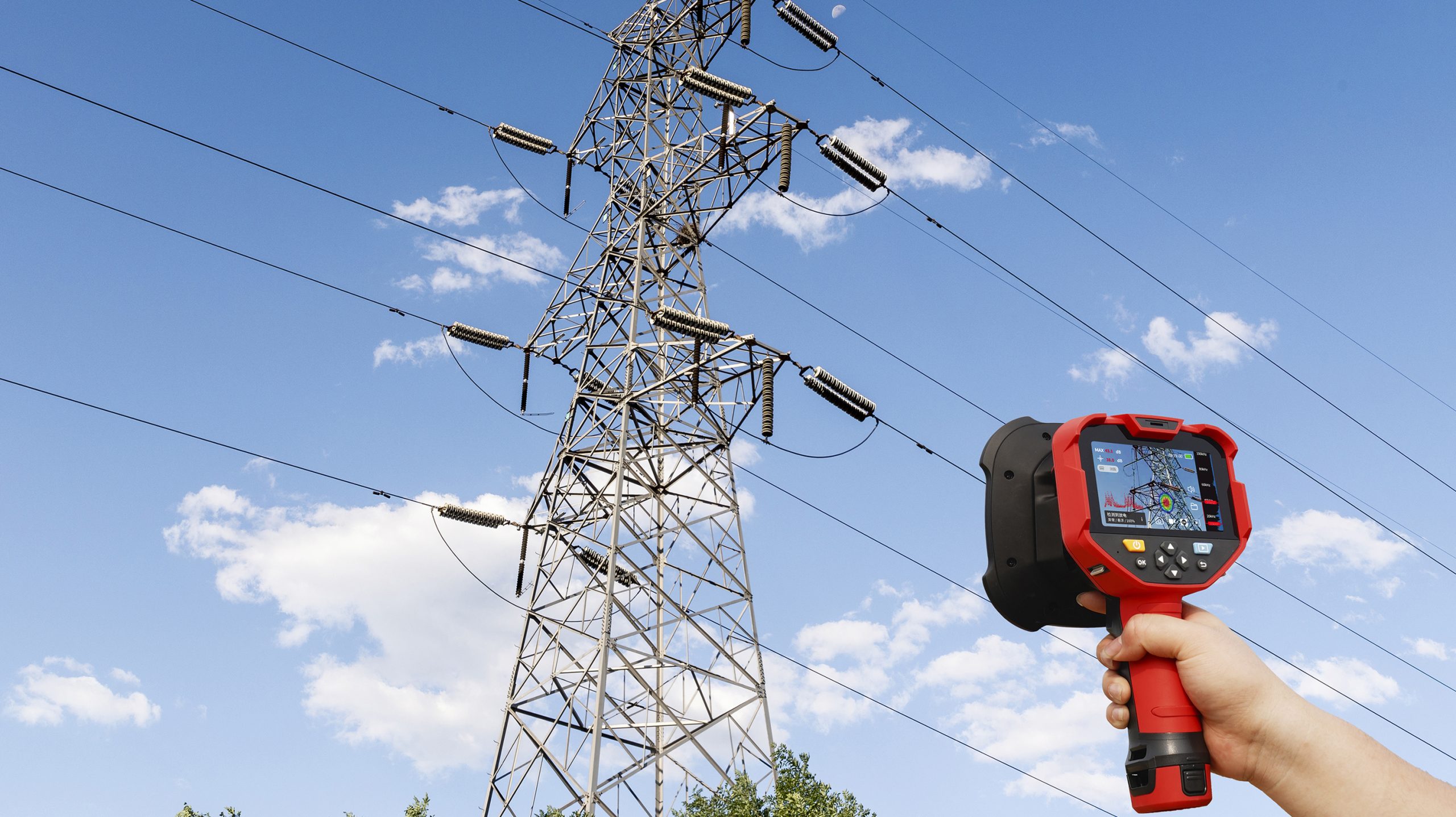

Applications
