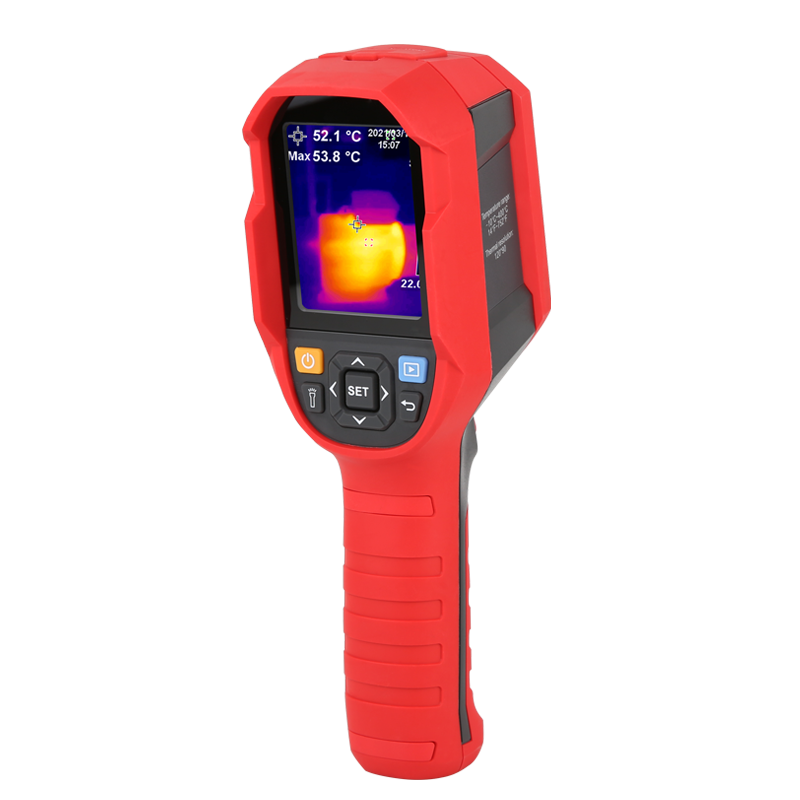

UTi120B

Heavy Duty Thermal Camera
Rated 0 out of 5
(be the first to review)

UTi120B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance and attractive price, with 120×90 pixels IR resolution which can automatically track the objective’s temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

Description

Heavy Duty Thermal Camera

UTi120B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance and attractive price, with 120×90 pixels IR resolution which can automatically track the objective’s temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications

Features :

  • Durable and user-friendly
  • 2.8” TFT display screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modess:Thermal,Visual image,Fusion
  • Buzzer alarm
  • Color palettes: 5(White hot, Black hot, Red hot, Ironbow, Rainbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP65
  • 2m drop proof

Product Specifications of UTi120B

Technical Data
IR resolution (Pixels) 120×90
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 5
(White hot, Black hot, Red hot, Ironbow, Rainbow)
Image modes Thermal,Visual image,Fusion
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
PC software analysis
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time  ≥6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 10
Standard carton size 500mm×315mm×295mm
Standard carton G.W. 10.1kg

Applications of UTi120B

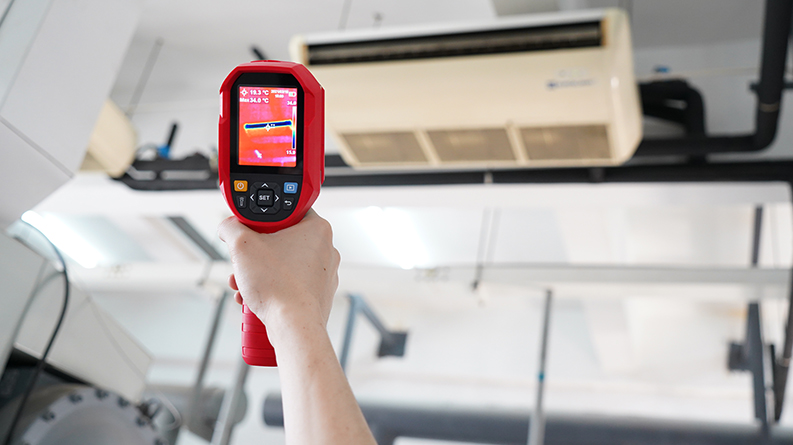

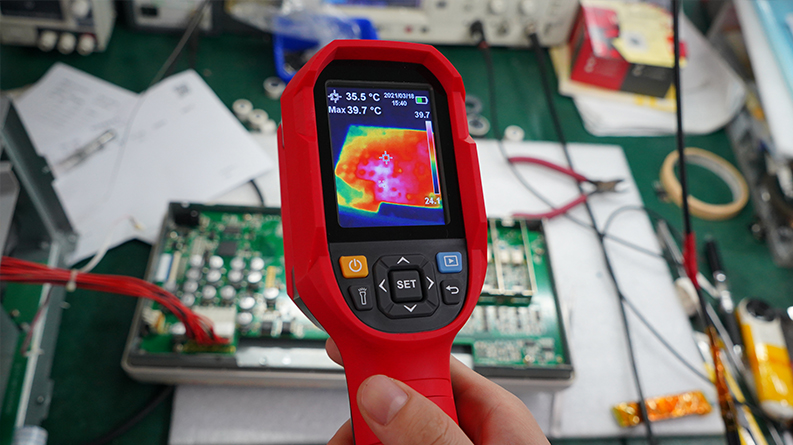

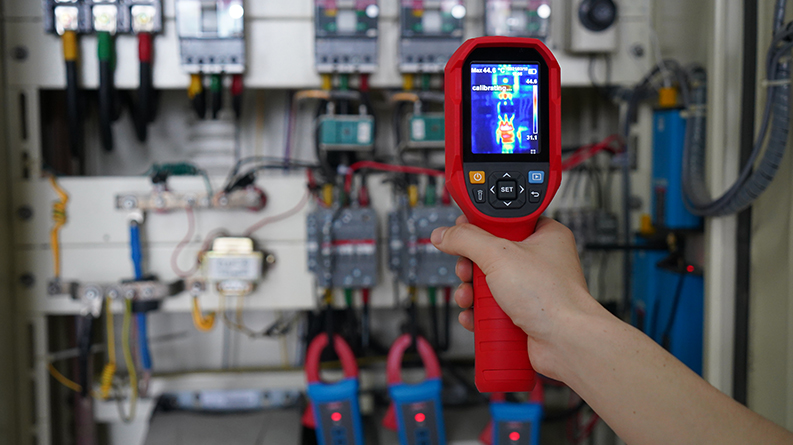

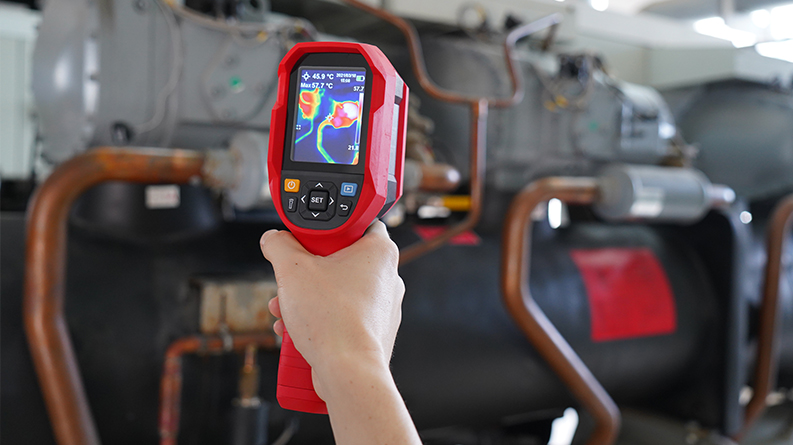

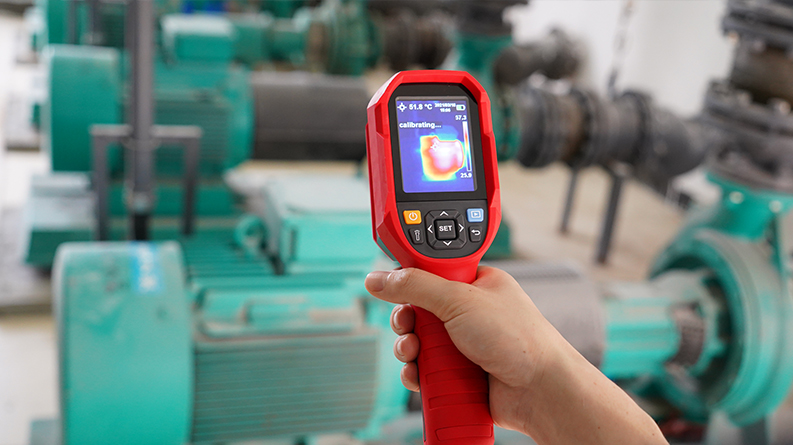

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
