UTx325

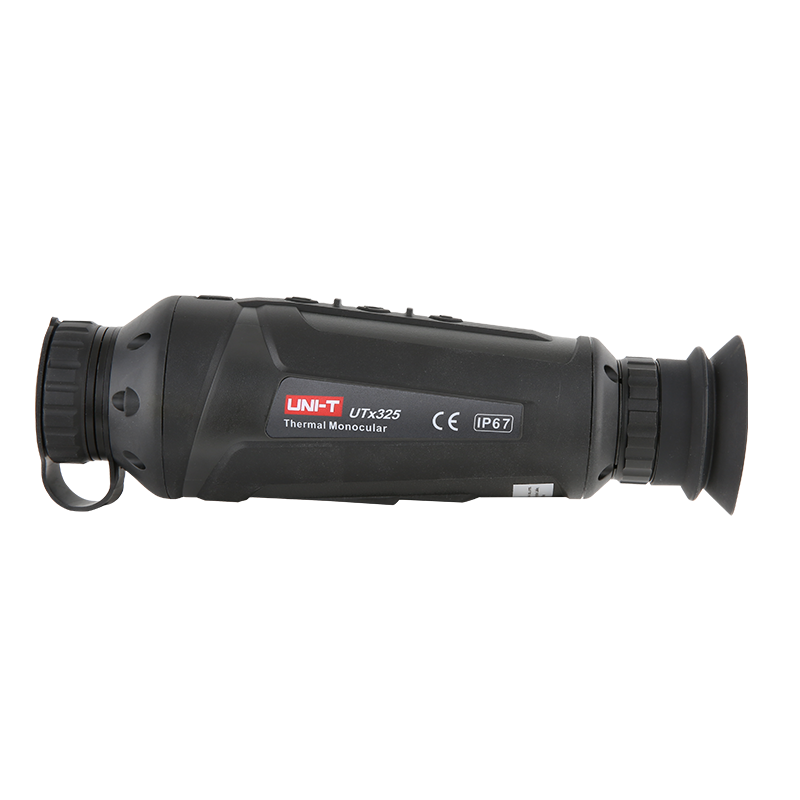

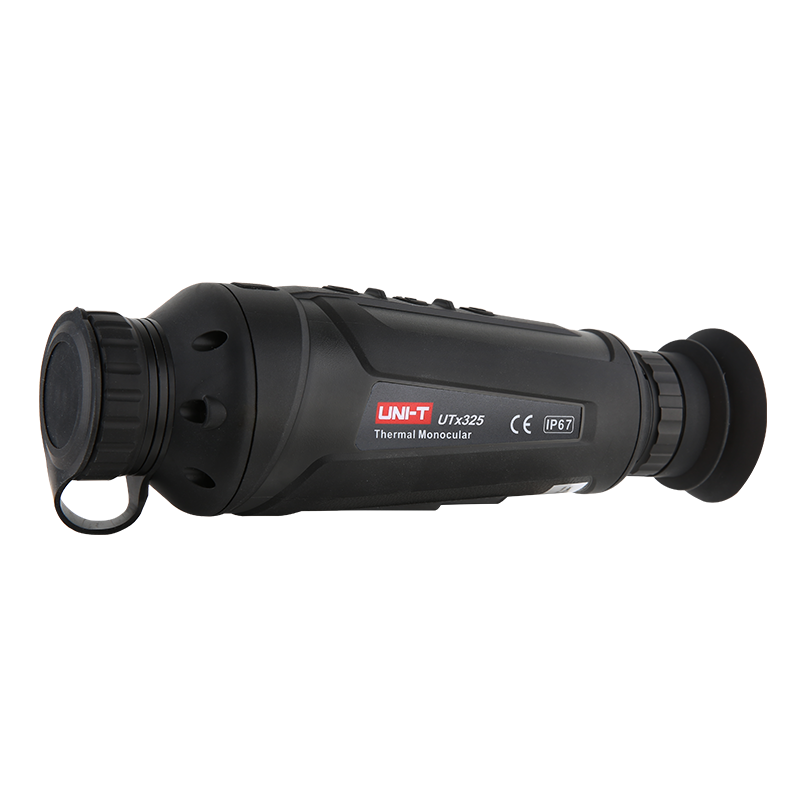

UTx325 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can widely be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.
Description
Thermal Imaging Monocular
UTx325 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.
Features :
- Lightweight and portable
- IR resolution: 384×288
- Display: 1280×960 0.4”LCOS
- Hot trace
- Color palettes: 5(Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
- PC software analysis
- IP67
- 2m drop proof
Product Specifications of UTx325
| Technical Data | |
| Display | 0.4” LCOS (1280×960) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 384×288 |
| Spectral range | 8~14µm |
| Pixel size | 12μm |
| Frame rate | ≤50Hz |
| Thermal sensitivity(NETD) | ≤40mK |
| Focus | Manual focus |
| Lens focal length | 25mm |
| Field of view(FOV) | 10.5°(H) x 7.9°(V) |
| Diopter adjustment | -4D~+5D |
| Functions | |
| Color palettes | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom | 2x, 4x / 1.0~4x continuous |
| Calibration modes | Auto, Manual, Background |
| DDE | Details & Edge |
| Hot trace | √ |
| Photo viewing | PC |
| Video output | MCX interface |
| General Characteristics | |
| Battery | 4000mAh rechargeable Li-ion battery |
| Operating time | ≥8 hours |
| USB | Type-C |
| Storage | 16GB Internal |
| Protection | IP67 & 2m drop proof |
| Certificates | UL, CE, UKCA, RoHS |
| Languages | ZH, EN |
| Weight | 428g |
| Dimension | 207.6mm×62mm×62mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, English Manual, Tool Box |
| Standard individual packing | Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 370mm×140mm×275mm |
| Standard carton G.W. | 1.9kg |
Applications of UTx325
Animal observation, hunting, navigation, security, camping &search, law enforcement etc.
