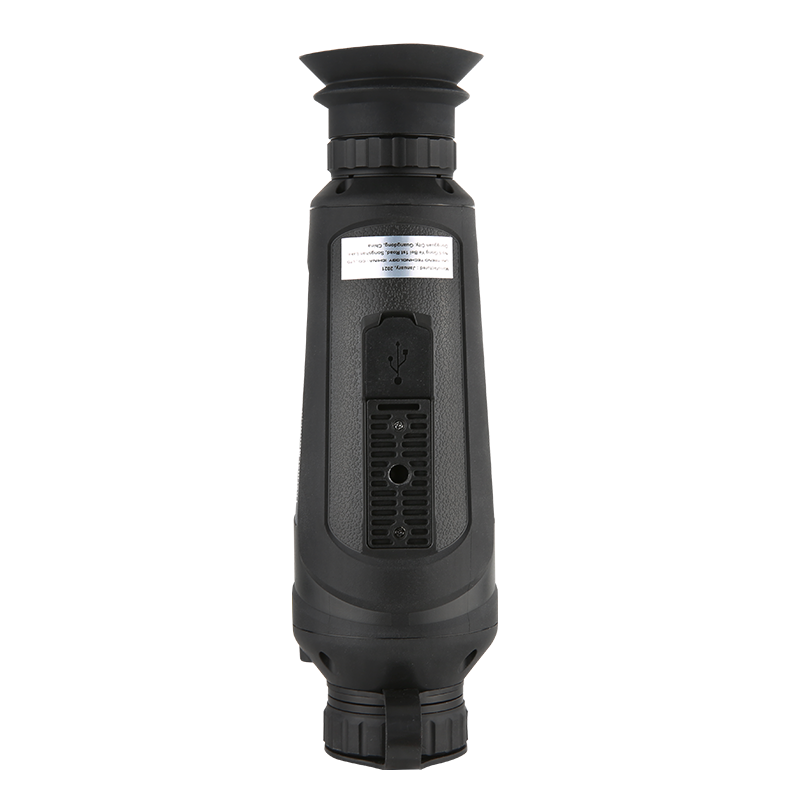

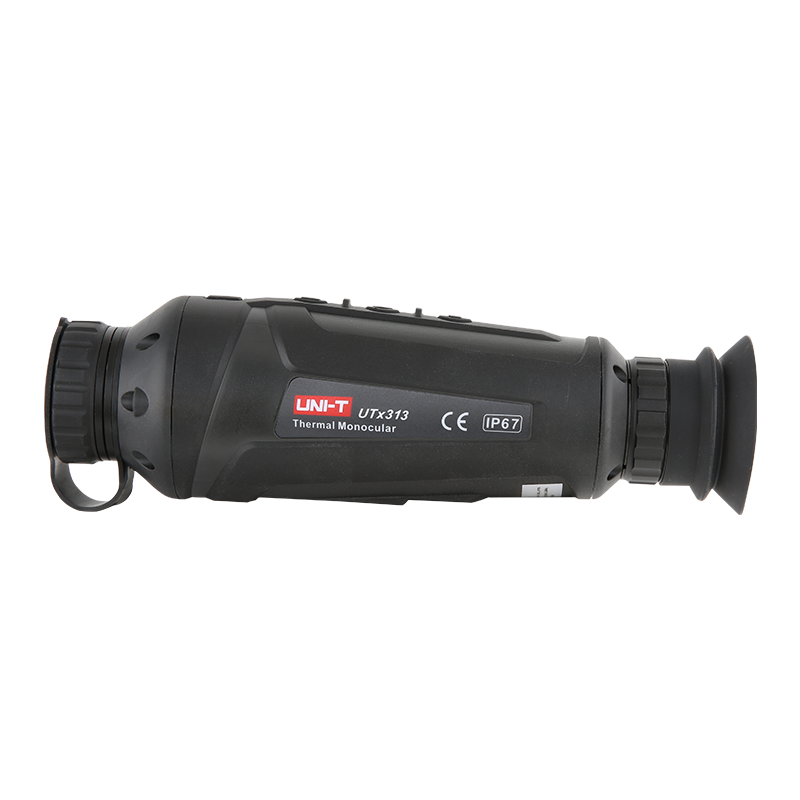

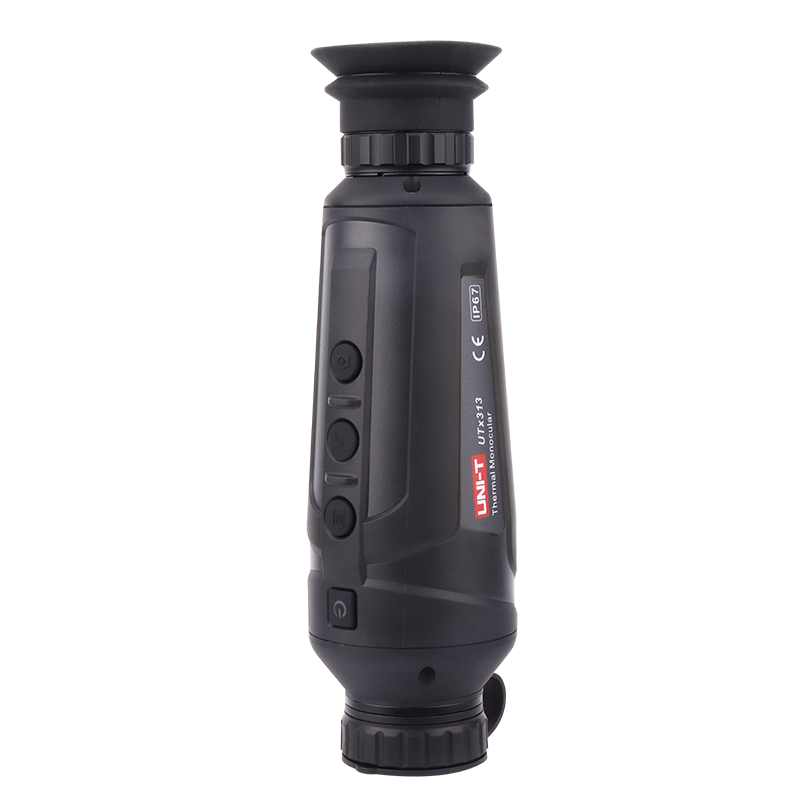

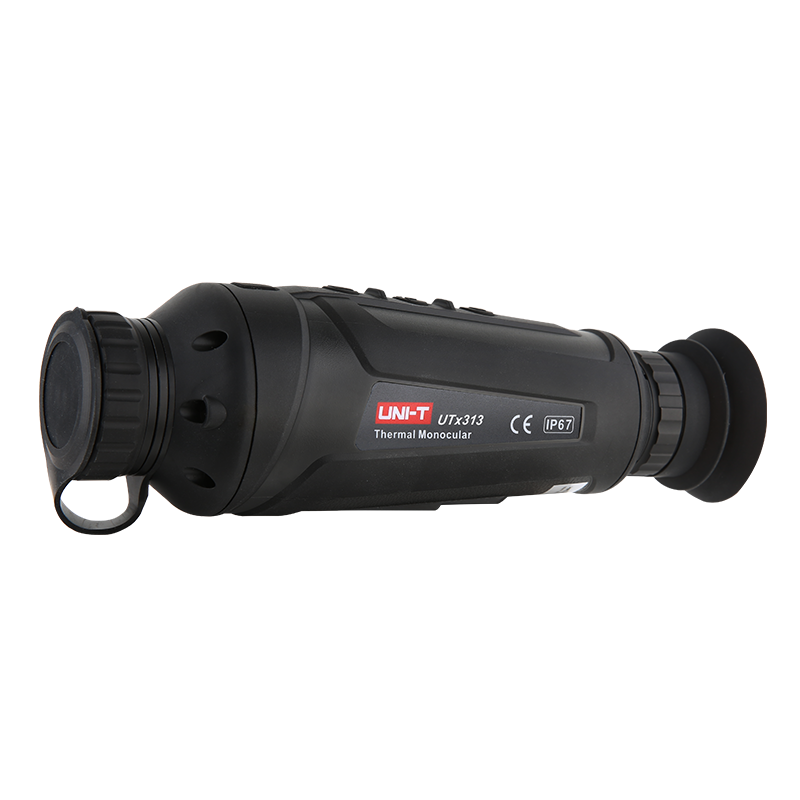

UTx313

Thermal Imaging Monocular
Rated 0 out of 5
(be the first to review)

UTx313 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing.  The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can  be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.

Description

Thermal Imaging Monocular

UTx313 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing.  The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can  be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.

Features :

  • Lightweight and portable
  • IR resolution: 384×288
  • Display: 1280×960 0.4”LCOS
  • Hot trace
  • Color palettes: 5(Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
  • PC software analysis
  • IP67
  • 2m drop proof

Product Specifications of UTx313

Technical Data
Display 0.4” LCOS (1280×960)
Detector type UFPA (Vanadium oxide)
IR resolution(Pixels) 384×288
Spectral range 8~14µm
Pixel size 12μm
Frame rate ≤50Hz
Thermal sensitivity(NETD) ≤40mK
Focus Manual focus
Lens focal length 13.5mm
Field of view(FOV) 20.3°(H) x 15.2°(V)
Diopter adjustment  -4D~+5D
Functions
Color palettes Black hot, White hot, Hottest, Ironbow, Rainbow
Digital zoom 2x, 4x / 1.0~4x continuous
Calibration modes Auto, Manual, Background
DDE Details & Edge
Hot trace
Photo viewing PC
Video output MCX interface
General Characteristics
Battery 4000mAh rechargeable Li-ion battery
Operating time ≥8 hours
USB Type-C
Storage 16GB Internal
Protection IP67 & 2m drop proof
Certificates UL, CE, UKCA, RoHS
Languages ZH, EN
Weight 428g
Dimension 207.6mm×62mm×62mm
Packing Details
Standard accessories Type-C USB cable, English Manual, Tool Box
Standard individual packing Gift box
Standard Qty per carton 1pcs
Standard carton size 370mm×140mm×275mm
Standard carton G.W. 1.9kg

Applications of UTx313

Animal observation, hunting, navigation, security, camping &search, law enforcement etc.



20220614151825 1
Animal observation



20220614151825 2
Security
