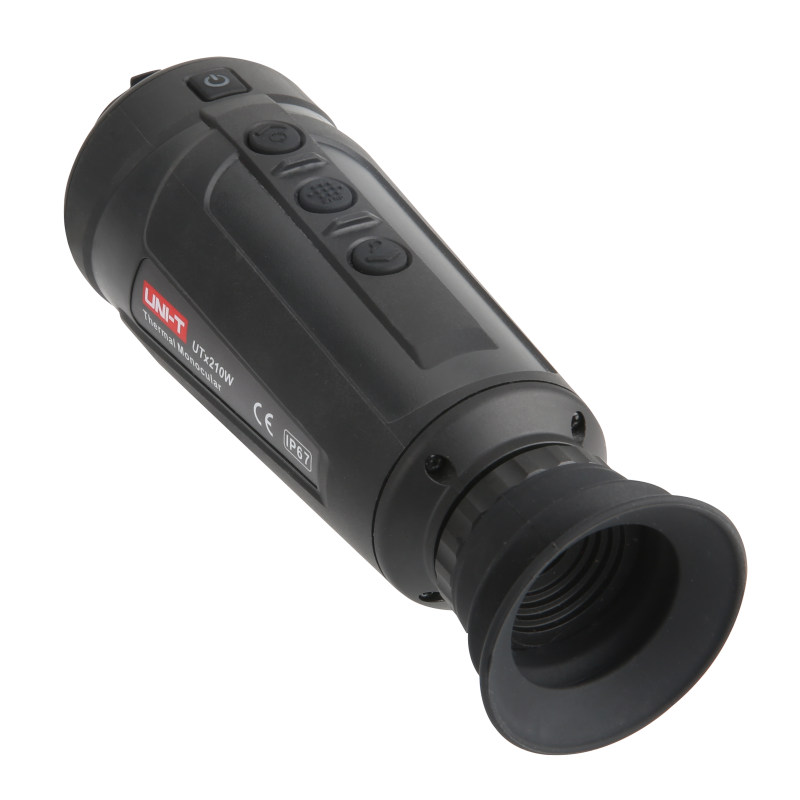

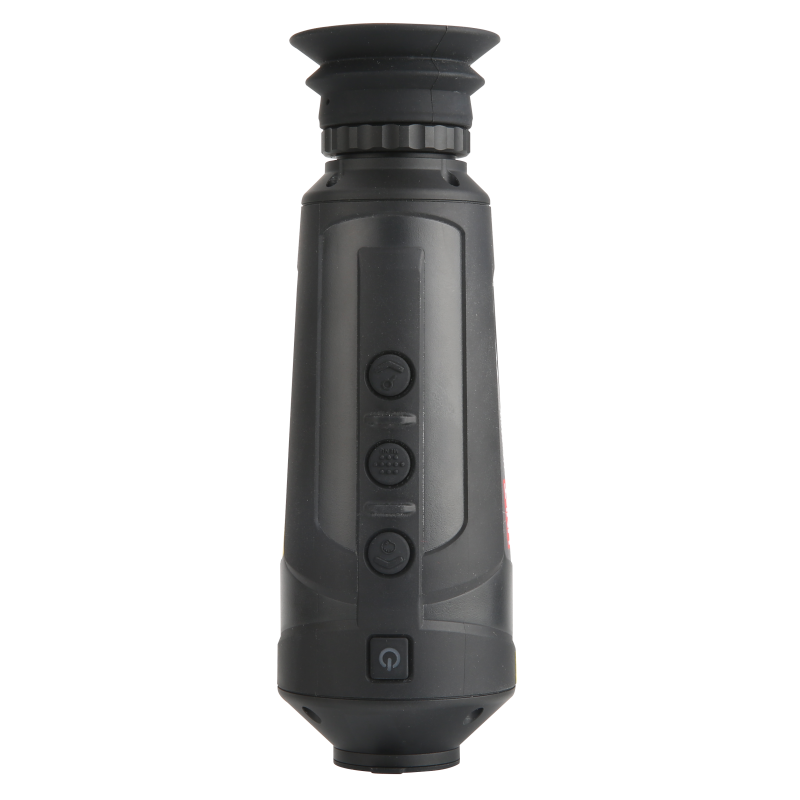

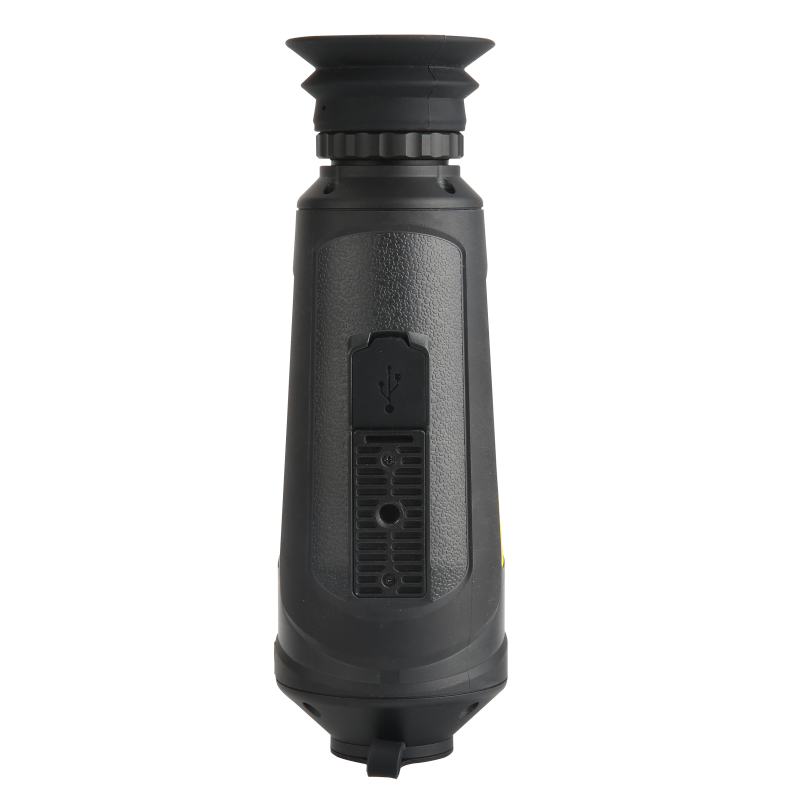

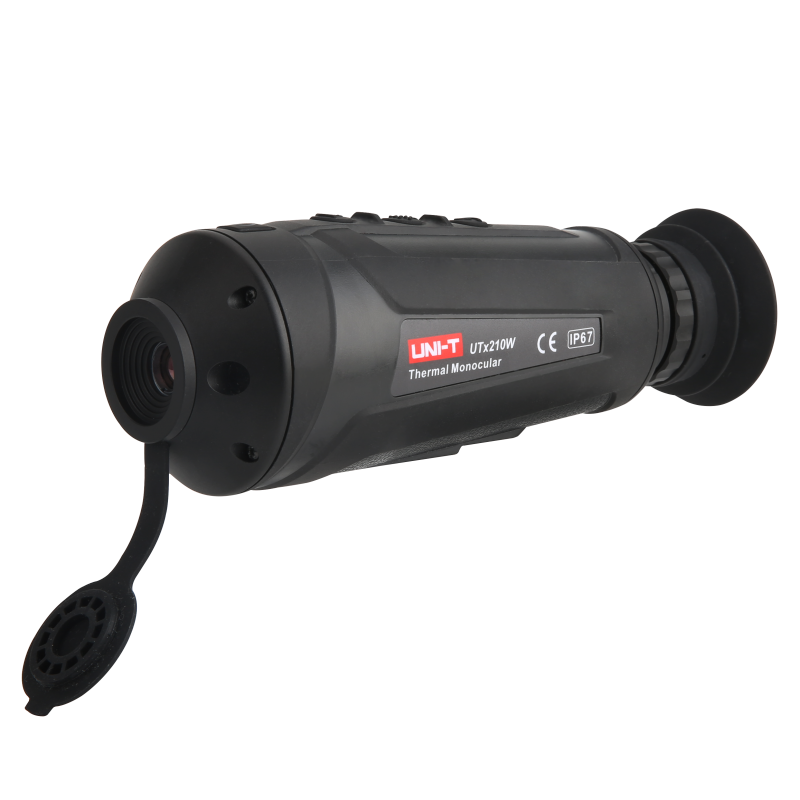

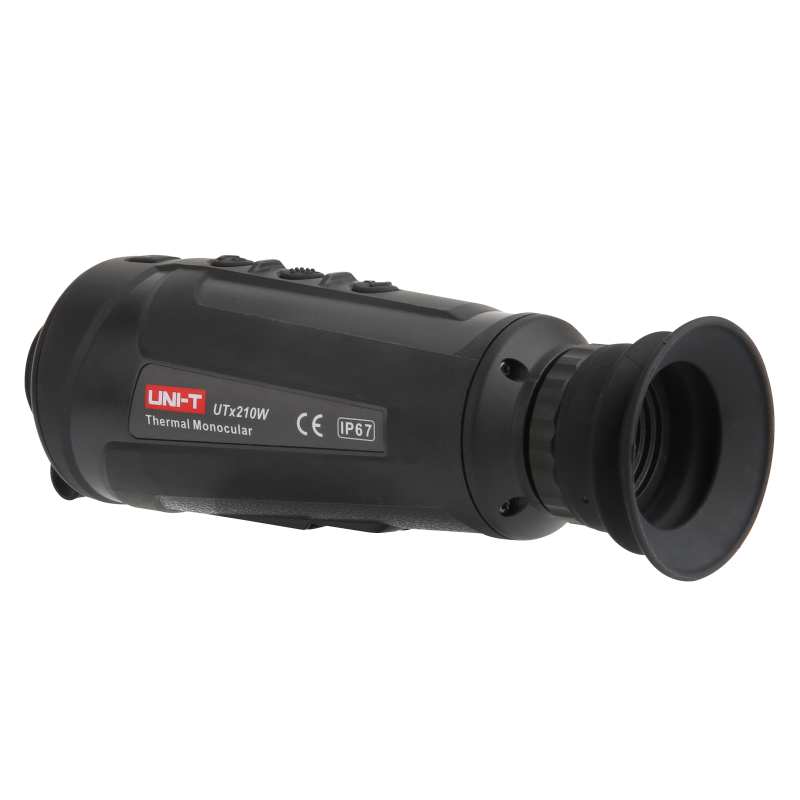

UTx210W
Thermal Monocular
Featuring a 256×192 detector and 10mm focal length lens. 0.23″ (640×400) display screen and 50Hz frame rate provide exceptional thermal vision. The built-in video recording, 8x magnification, and stadiametric functions make UTx210W show its capabilities in unknown forest and wooded scenarios.
Description
Features :
- 256×192 detector
- 50Hz frame rate
- ≤0.035℃ thermal sensitivity
- 10mm lens focal length
- 8x magnification
- Stadiametric ranging
- PIP
- Video recording & snapshot capturing
- Play via “Thermal Xplorer” through Wi-Fi connect
- Multilingual OS
- IP67 rating & withstand the drop of 2m height
Specifications
| Technical Data | |
| Display | 0.23″ OLED (640×400) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 8~14µm |
| Pixel size | 12μm |
| Frame rate | ≤50Hz |
| Thermal sensitivity(NETD) | ≤35mK |
| Focus | Focus free |
| Lens focal length | 10mm |
| Field of view(FOV) | 17.5°(H) × 13.1°(V) |
| Eyepiece relief distance | 19.9mm |
| Diopter adjustment | -5D~+5D |
| Functions | |
| Color palettes | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom | 2x, 4x, 8x / 1.0~8x continuous |
| Scene modes | Bird, Forest, Rock |
| Calibration modes | Auto, Manual, Background |
| Distance measurement | Stadiametric ranging |
| Hot trace | √ |
| PIP | √ |
| Video recording | √ |
| Photo viewing | Device Local, PC, APP |
| Wi-Fi download photo | √ |
| Wi-Fi live streaming | √ |
| Video output | Type-C interface |
| Analysis software | APP (Android & iOS) |
| General Characteristics | |
| Battery | 4000mAh rechargeable Li-ion battery |
| Operating time | ≥6 hours |
| USB | Type-C |
| Storage | Built-in 16GB |
| Image storage format | PNG |
| Video storage format | MP4 |
| Protection | IP67 & 2m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | EN, FR, DE, ES, IT, RU, UA |
| Weight | 410g (Inc. battery) |
| Dimension | 185.5mm×63.7mm×62mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Quick Start Guide, Tool Box |
| Standard individual packing | Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 370mm×140mm×275mm |
| Standard carton G.W. | 1.9kg |
