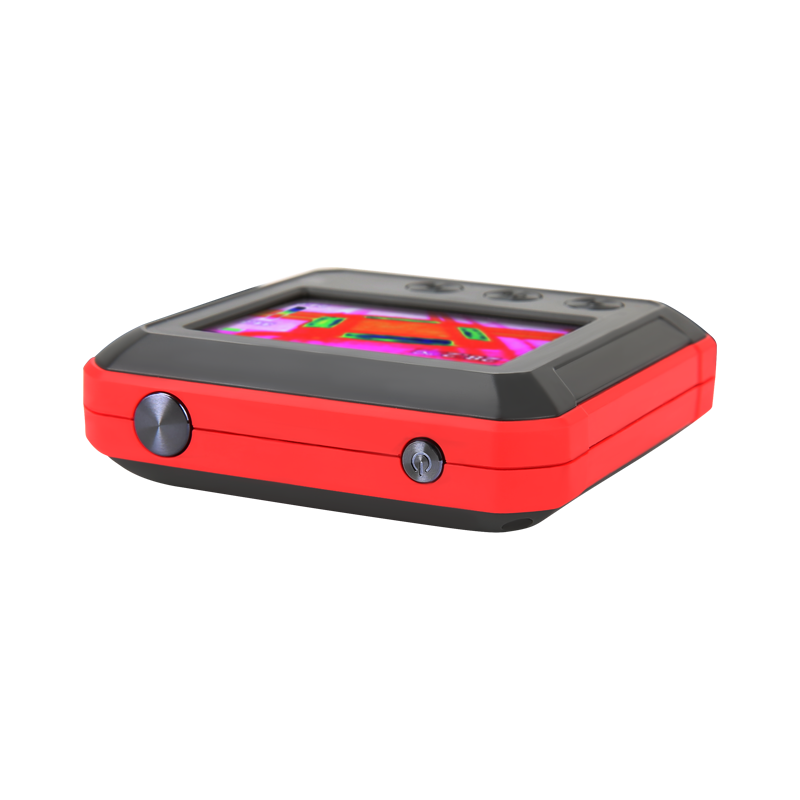

UTi80P
UTi80P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -10°C to 400°C, which can be widely used in many applications.
Description
Pocket-sized Thermal Camera
UTi80P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -10°C to 400°C, which can be widely used in many applications.
Features :
- Mini and portable
- 2.4” TFT display screen (320×240 Pixels)
- IR resolution: 80×60
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 3(Iron, Rainbow, Grey)
- PC software analysis
- Rechargeable Li-ion battery

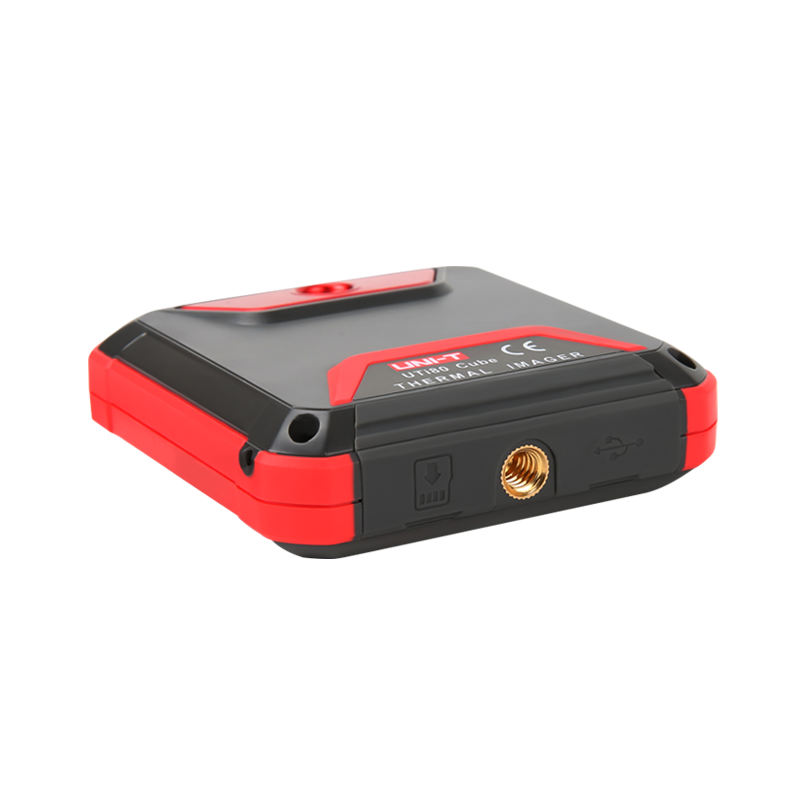

- 1/4” tripod mounting hole
- 1m drop proof
Product Specifications of UTi80P
| Functions | |
| ☑ Color palettes: 3 (Ironbow, Grey, Rainbow) ☑ Auto tracking and alarm for high/low temperature ☑ PC software analysis ☑ Auto power off: 5/10/30mins(default)/off |
|
| Technical Data | |
| IR resolution (Pixels) | 80×60 |
| Display | 2.4” TFT LCD (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤150mK |
| Spatial resolution(IFOV) | 11mrad |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -10℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 1300mAh) |
| Battery operation time | ≥3.5 hours |
| USB | Micro USB |
| Drop proof | 1m |
| Storage | 16GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,RoHS |
| Product net weight | 125g |
| Product size | 76mm×76mm×24mm |
| Packing Details | |
| Standard accessories | Hand strap, Carrying bag, Micro SD card, Micro USB cable, English manual,Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 5 |
| Standard carton size | 455mm×145mm×150mm |
| Standard carton G.W. | 2.8kg |
Applications of UTi80P
Motor inspection:
The thermal camera UTi80P can detect the imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoid fire risk, engineer can also use the thermal imager check the protection situation regularly to ensure the safety production.
HVAC inspection:
Using UTi80P can check the temperature change of pipeline without any body touch, detect the potential problems such as pipeline thinning, corrosion, leakage. Avoid the risk to human and environment.
