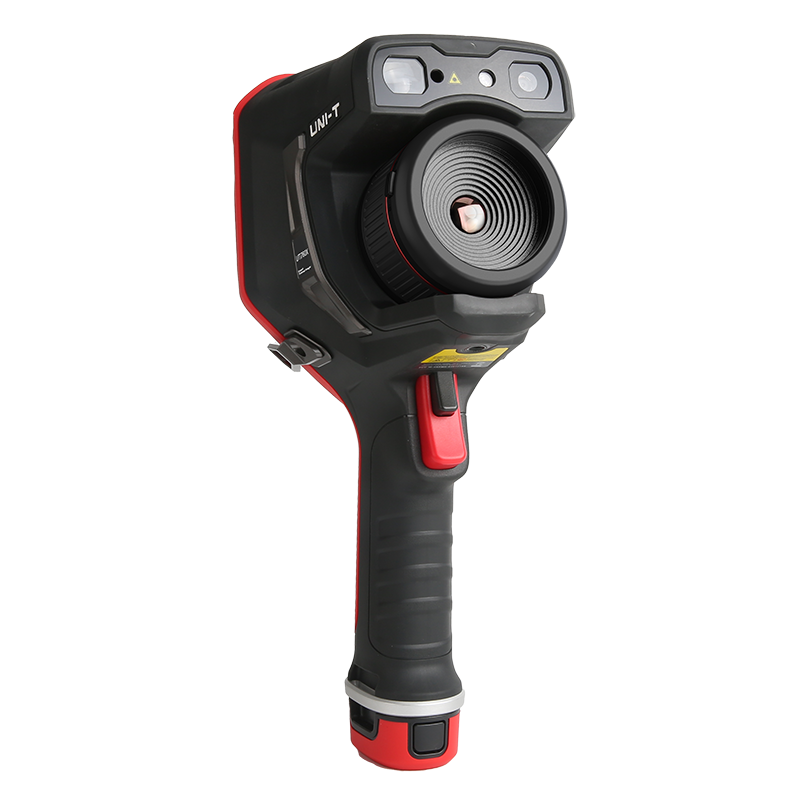

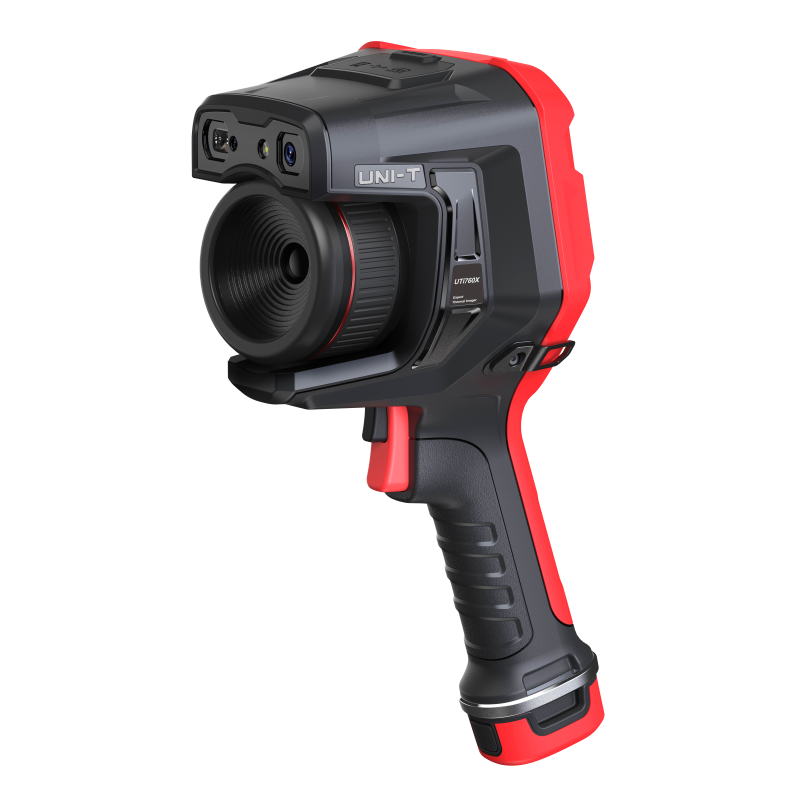

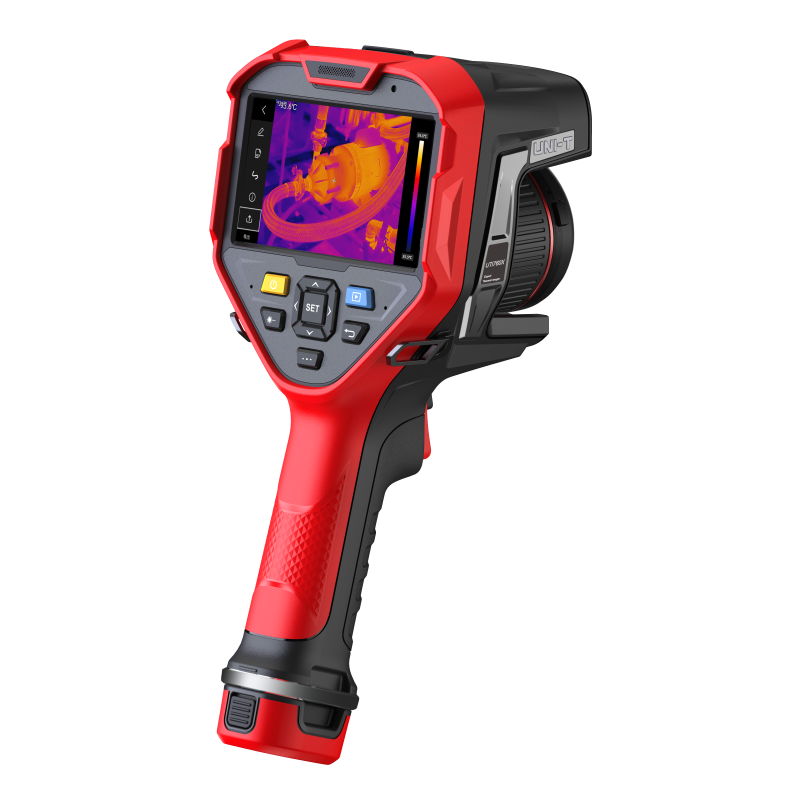

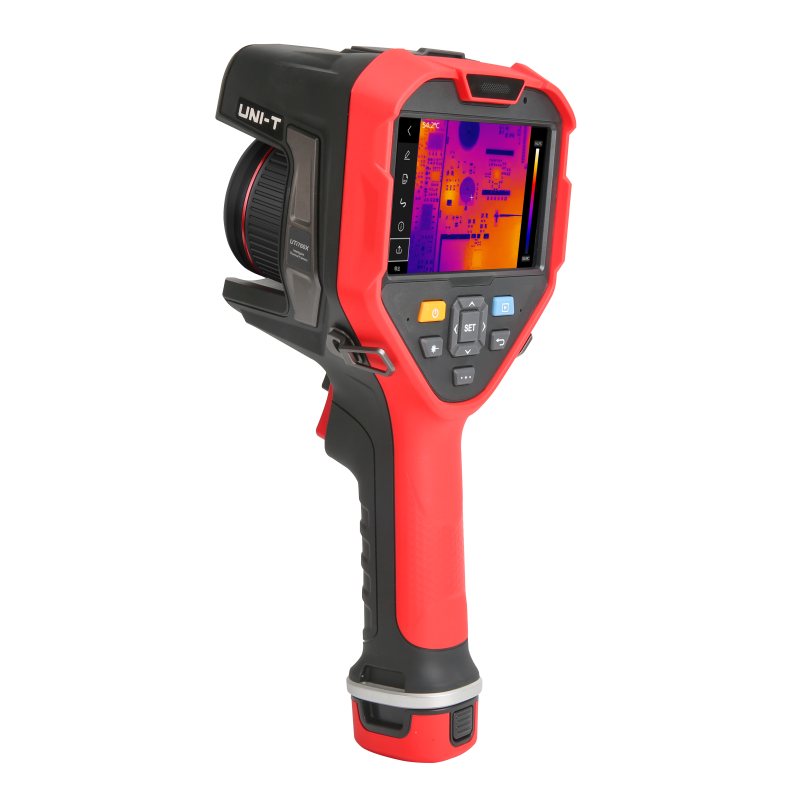

UTi760X
Expert Thermal Imager
UTi760X features a high resolution infrared detector of 640×512 pixels and a 13MP digital camera. The high-precision thermal camera designed specifically for industrial field. 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range and the optional camera lens meet the requirements of numerous severe measurement scenarios.
Description
Features :
- 640×512 pixels (upgrade to 1280×1024 when Super Resolution is on)
- Temp. measurement range from -20℃ to 1200℃ (up to 2200℃ when High temperature lens is installed)
- Interchangeable camera lens (support lens autocal)
- Multiple focus modes (Continuous AF/Contrase AF/Laser AF/Touch AF/Manual Focus/Automatic)
- With T-Mix image fusion algorithm technology
- High-prevision measurement (accuracy is up to ±1.0℃ or ±1.0%)
- Smart meter
- AI voice
- Laser rangefinder
- OTA upgrade
Specifications
| Display | 5′ IPS Touch (1280×720) | |||||
| IR resolution(Pixels) | 640×512 | |||||
| Super resolution(Pixels) | 1280×1024 | |||||
| Spectral range | 7.5～14μm | |||||
| Pixel size | 12μm | |||||
| Frame rate | 30Hz | |||||
| Thermal sensitivity(NETD) | 35mK | |||||
| Focus mode | Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus | |||||
| Focusing time | <2s | |||||
| Lens recognition | ✔ | |||||
| Lens calibration | ✔ | |||||
| Lens | Standard | Macro | Wide-Angle | Telephoto | Ultra Telephoto | High Temperature |
| Lens focal length | 18mm | 18mm | 9.6mm | 36mm | 62.8mm | 18mm |
| Aperture | F1.0 | F1.1 | F1.0 | F1.0 | F1.3 | F1.0 |
| Field of view(FOV) | 24°(H)×19.3°(V) | / | 46°(H)×37°(V) | 12°(H)×9.6°(V) | 7°(H)×5.6°(V) | 24°(H)×19.3°(V) |
| Spatial resolution(IFOV) | 0.66mard | / | 1.28mard | 0.33mard | 0.19mard | 0.66mard |
| Imaging distance | 0.15m (Minimum) | 20~38mm | 0.1m (Minimum) | 1m (Minimum) | 2m (Minimum) | 0.15m (Minimum) |
| Optimal measurement distance | 0.6m | / | 0.5m | 1m | 2m | 0.6m |
| Temperature measurement range | Conventional Lens: -20℃～1200℃ High Temp. Lens: 1000℃～2200℃ | |||||
| Accuracy | ±2°C for -10°C~0°C ±1.0°C/±1.0% for 0°C~120°C ±1.5°C/±1.5% for 120°C~1200°C ±1.5% for 1000°C~2200°C (whichever is greater, room temperature of 25℃, conventional lens) |
|||||
| Functions | ||||||
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported | |||||
| Image modes | Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image | |||||
| On screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported | |||||
| Level & span | Auto/Manual/Touch | |||||
| HI/LO temperature alarm | LCD animation, LED flashlight, Buzzer | |||||
| HI/LO temperature tracking | ✔ | |||||
| ROI correction | Supports regional emissivity correction | |||||
| Digital camera resolution | 13MP | |||||
| Digital zoom | ✔ | |||||
| Photo capturing / Video recording | ✔ | |||||
| Full-screen thermal radiometric video stream | ✔ | |||||
| T-Contrast | ✔ | |||||
| T-Sharp | ✔ | |||||
| Smart meter | ✔ | |||||
| AI voice | ✔ | |||||
| OTA upgrade | ✔ | |||||
| QR code scanning | ✔ | |||||
| Text/Voice annotation | ✔ | |||||
| HDMI display extension | ✔ | |||||
| WiFi / Wi-Fi live streaming | ✔ | |||||
| Bluetooth | ✔ | |||||
| Laser pointer | ✔ | |||||
| LRF | 0.1～50m (Class 2, red) | |||||
| LED lighting | ✔ | |||||
| Analysis software | PC+APP | |||||
| General Characteristics | ||||||
| Battery | 7.2V/5000mAh rechargeable & detachable Li-ion battery pack | |||||
| Operating time | ≥5 hours | |||||
| Charging system | Type-C direct charging / Independent charging of the battery pack | |||||
| Charging time | Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack) | |||||
| USB | Type-C USB, Micro HDMI | |||||
| Storage | Built-in 128G, support SD expansion | |||||
| Image storage format | JPG | |||||
| Video storage format | MP4/UIR | |||||
| Working temperature | -20℃～55℃ | |||||
| Storage temperature | -40℃～60℃ | |||||
| Working humidity | 10%～95%RH，noncondensing | |||||
| Protection | IP54 & 2m drop proof | |||||
| Certificates | CE, FCC, RoHS | |||||
| Languages | EN, FR, DE, IT, ES, SV, PL, CS | |||||

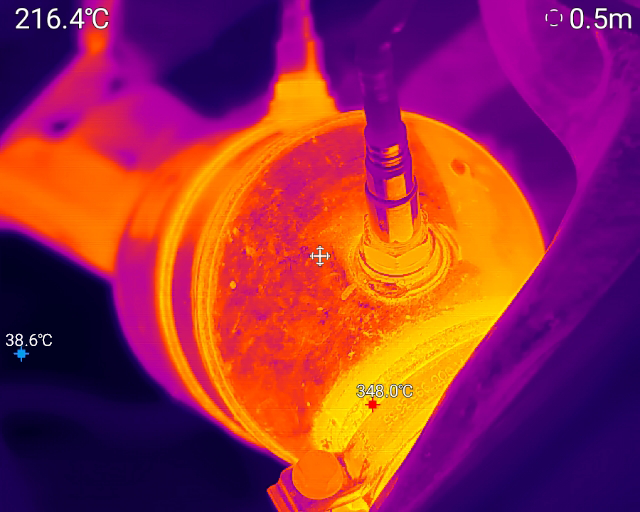

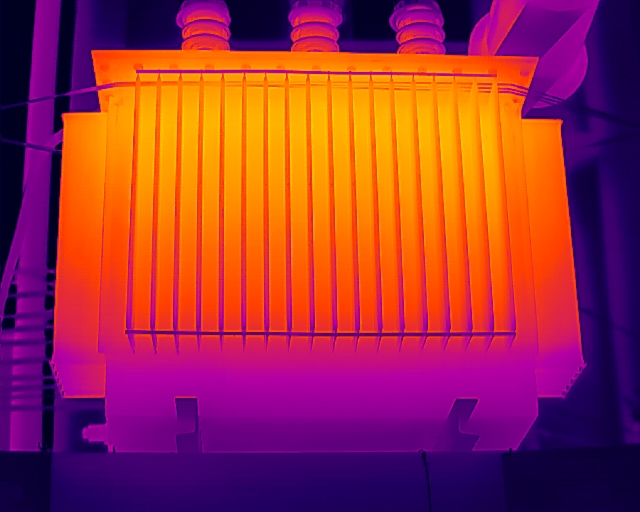

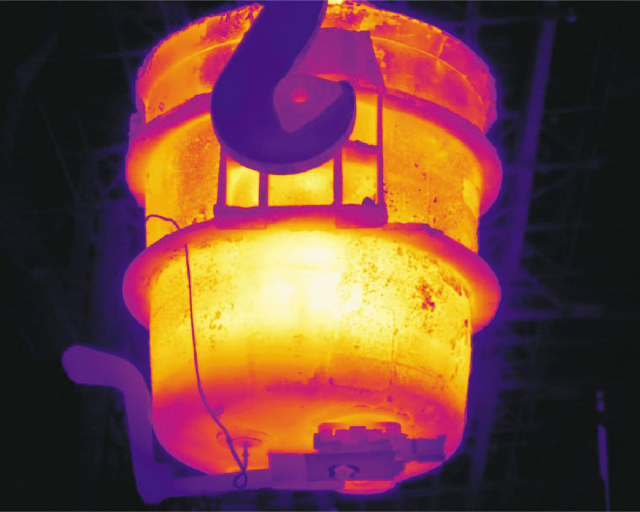

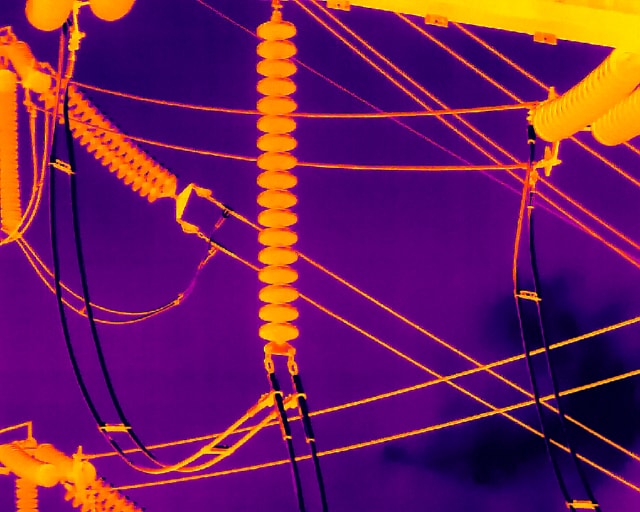

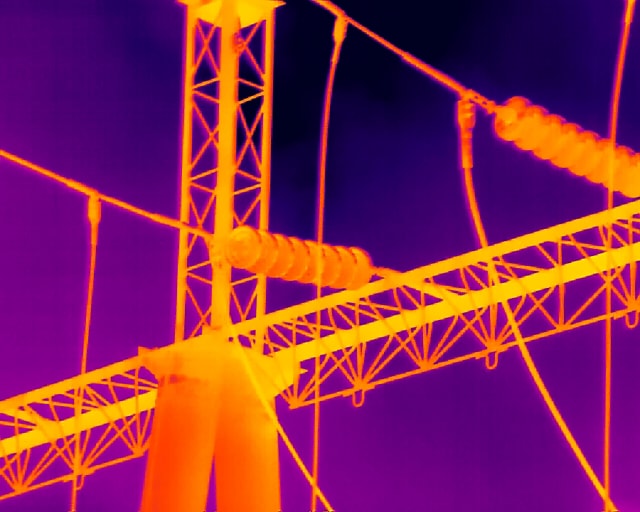

Applications
