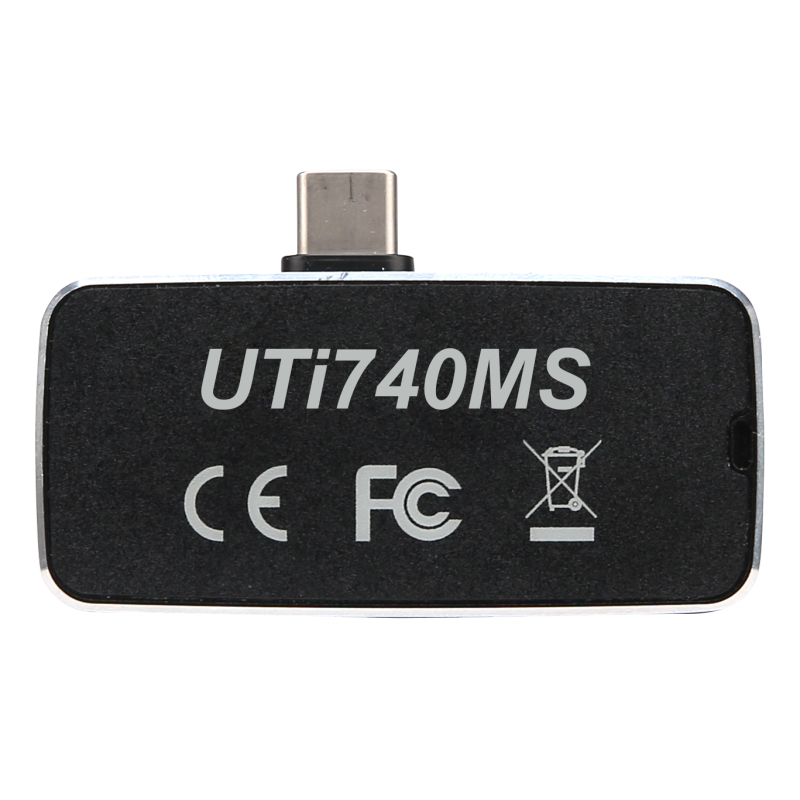

UTi740MS
Thermal Imager for Smart Phone

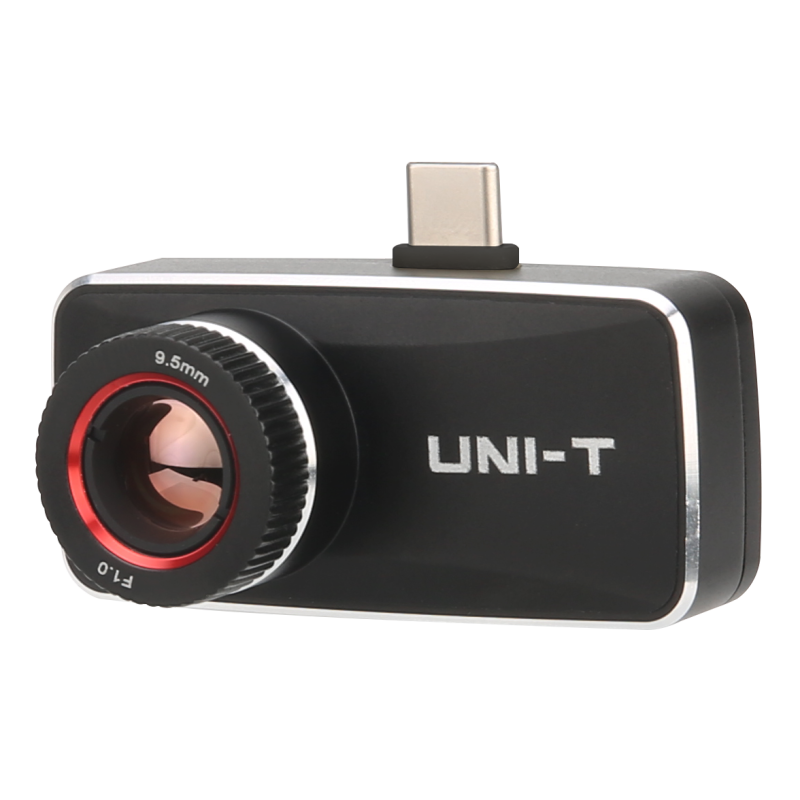

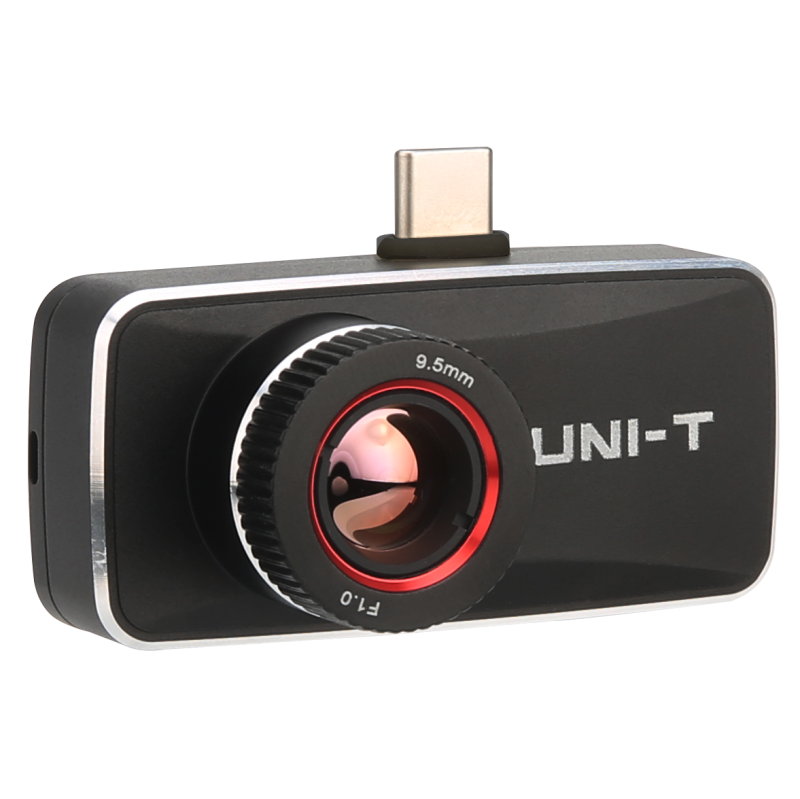

UTi740MS thermal camera module with manual focus feature is specially design for Android & iOS mobile devices with Type-C USB interface. With light-weight & battery-free design. Plug & play with “Thermal Mobile ”APP. User-friendly, fast imaging. Perfect measurement tool for building inspection & DIY use.
Description
Features :
- 400×300 pixels (upgrades to 800×600 when Super Resolution is on)
- Temp. measurement range from -20℃ to 550℃
- Compatible with Android 7.0/iOS15 and later

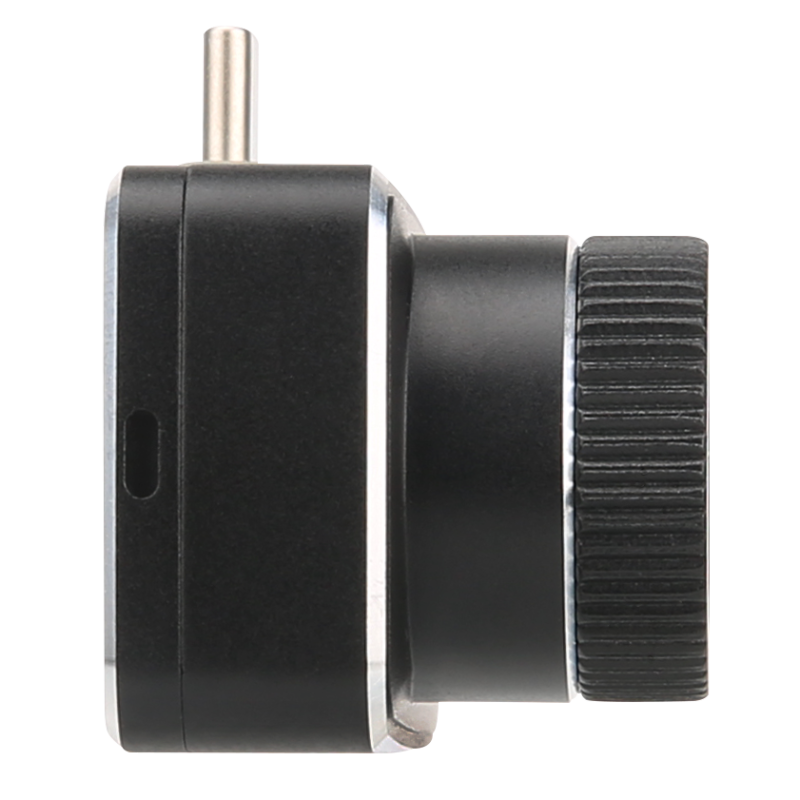

- Manual Focus
- Plug & play with “Thermal Mobile” APP
- PDF analysis report generation
- Light-weight and easy-to–use
- Battery-free design
Specifications
| Technical Data | |
| IR resolution(Pixels) | 400×300 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤45mK @25℃ |
| Focus | Manual Focus |
| Lens focal length | 9.5mm |
| Field of view(FOV) | 29°(H) × 21.5°(V) |
| Measurement modes | Industrial & EST screening |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | Industrial: ±2° or ±2% whichever is greater (-10℃~550℃) EST: ±0.5° (20℃~50℃) |
| Functions | |
| Color palettes | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Fusion, PIP |
| On screen analyzer | 5 Points/1 Lines/3 Rectangles/3 Circles |
| Isotherm | Auto/Below/Above/Section/Manual |
| Hi/Lo temperature alarm | LCD animation & Buzzer |
| Hi/Lo temperature tracking | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Image storage format | JPG |
| Video storage format | MP4 |
| Certificates | CE, FCC, RoHS |
| Languages | ZH, EN, FR, DE, IT, ES, SV, PL, CZ |
| Weight | 46g |
| Dimension | 58mm×27mm×28.6mm |

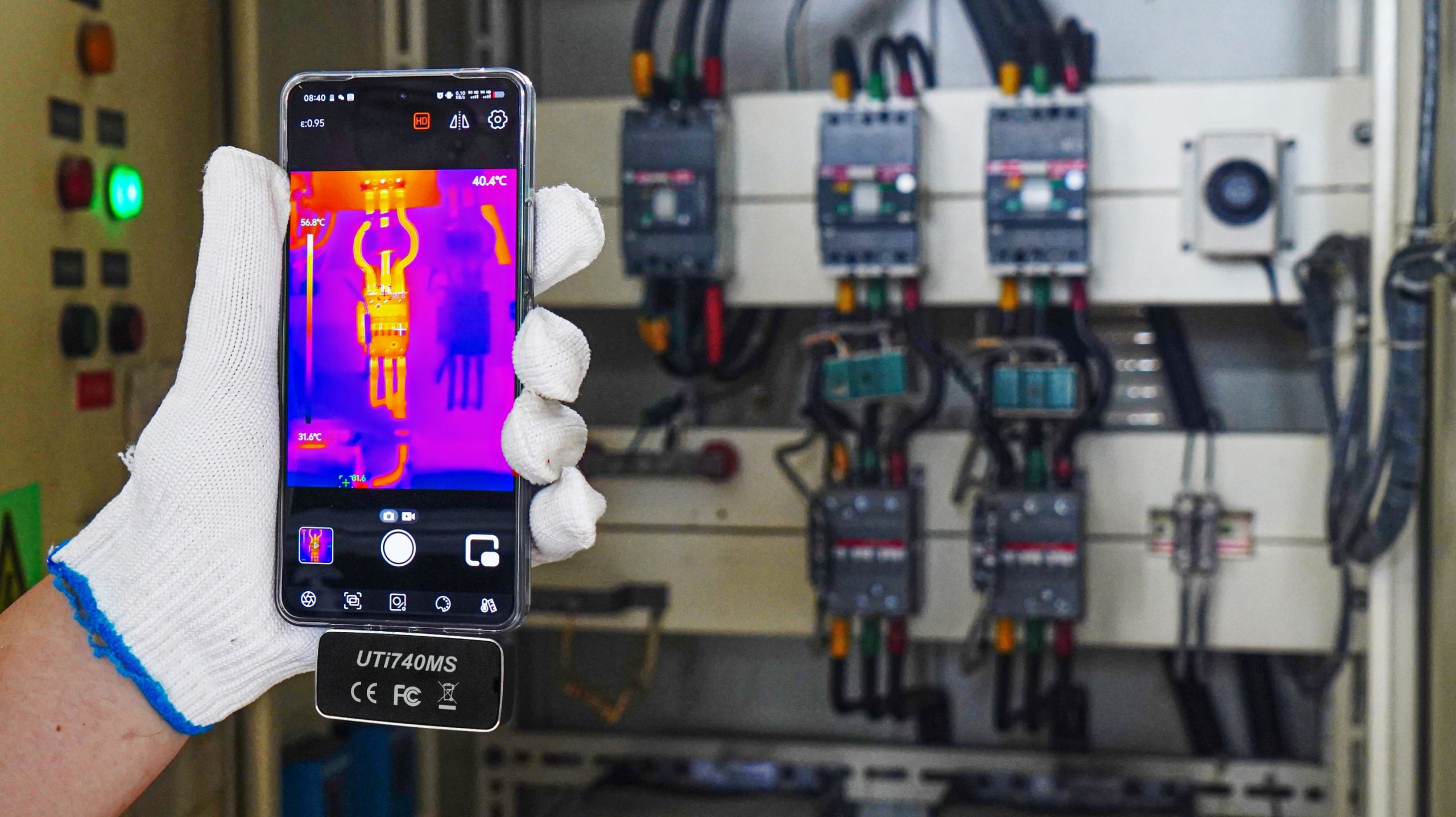

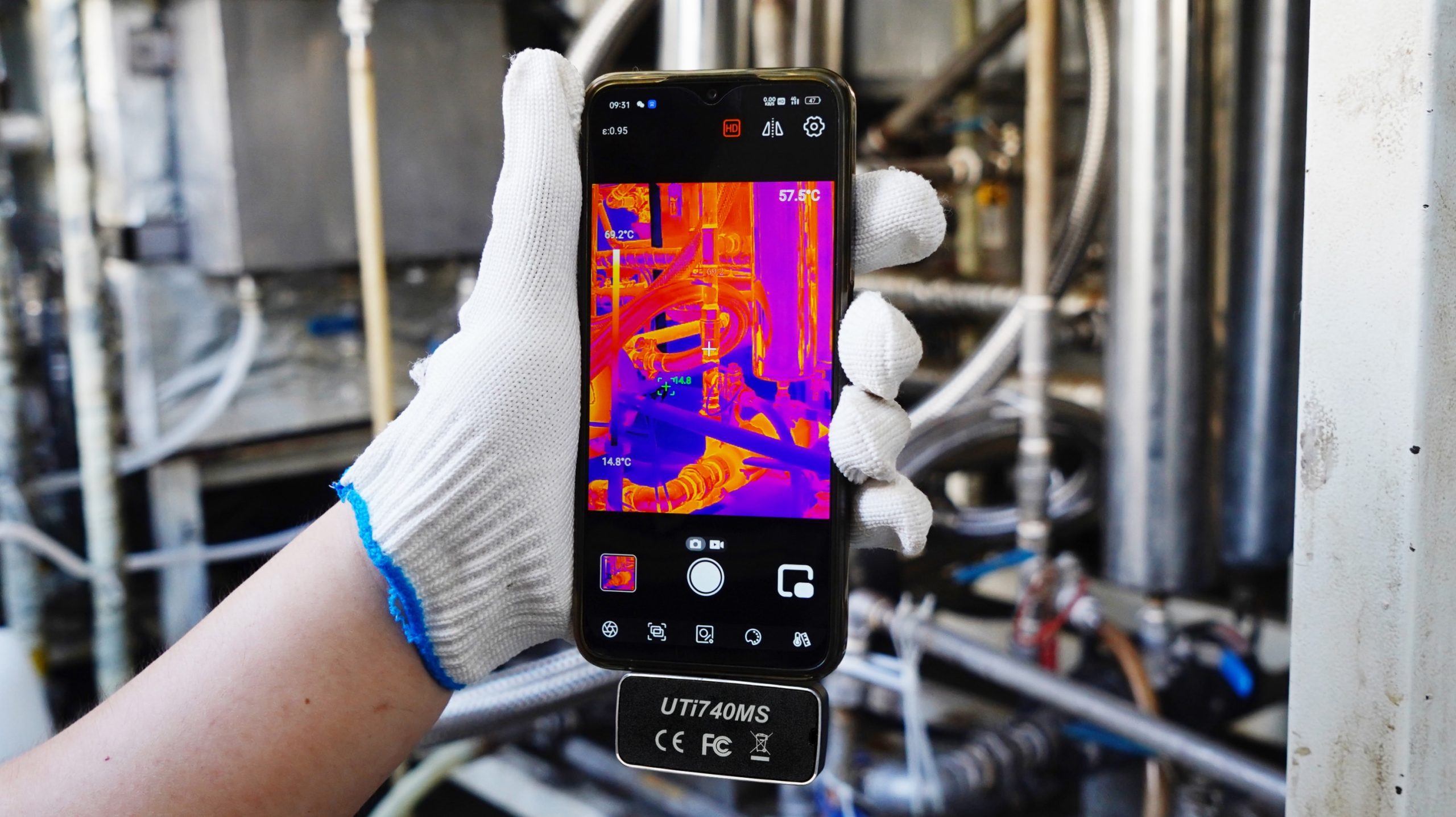

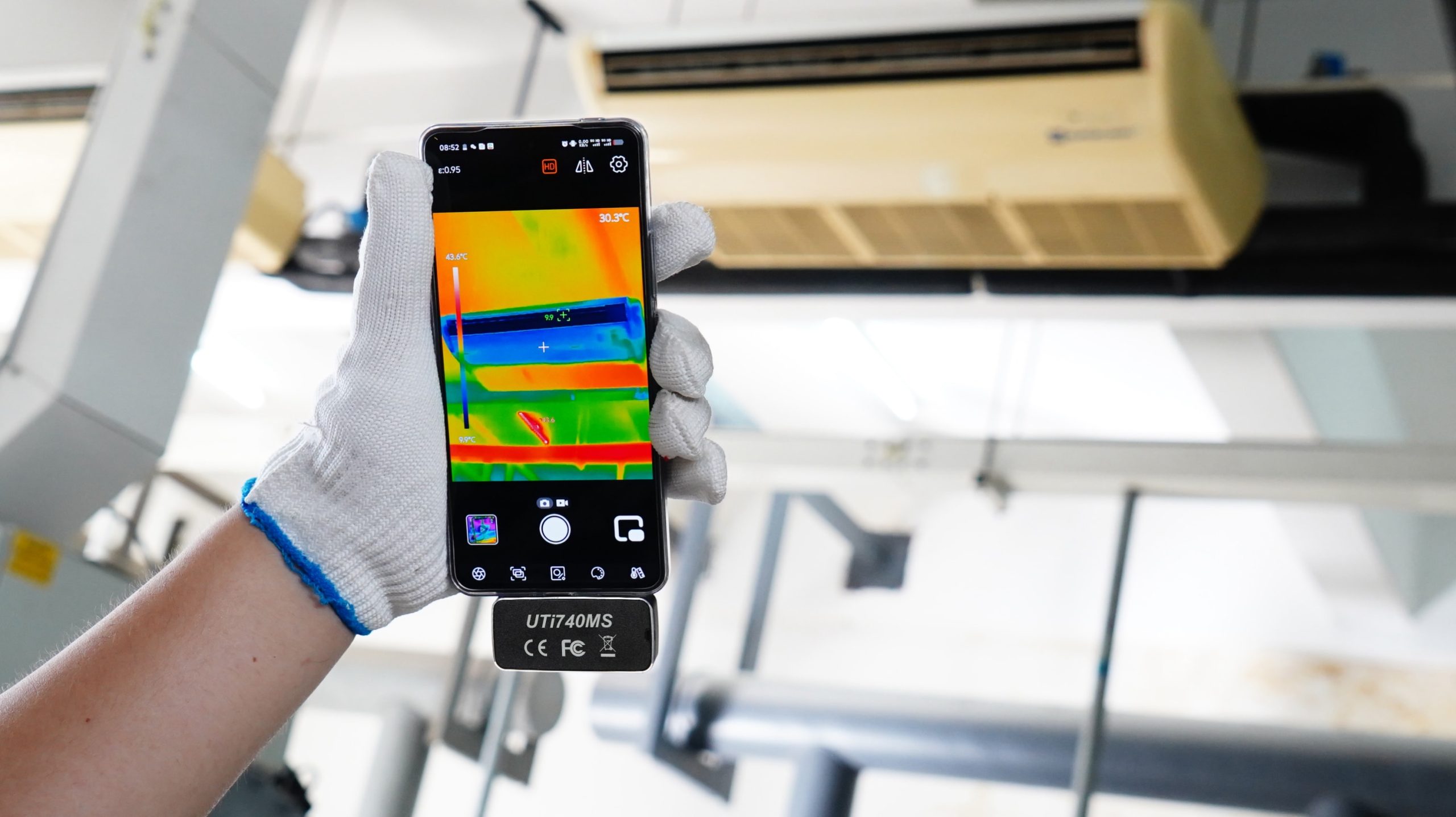

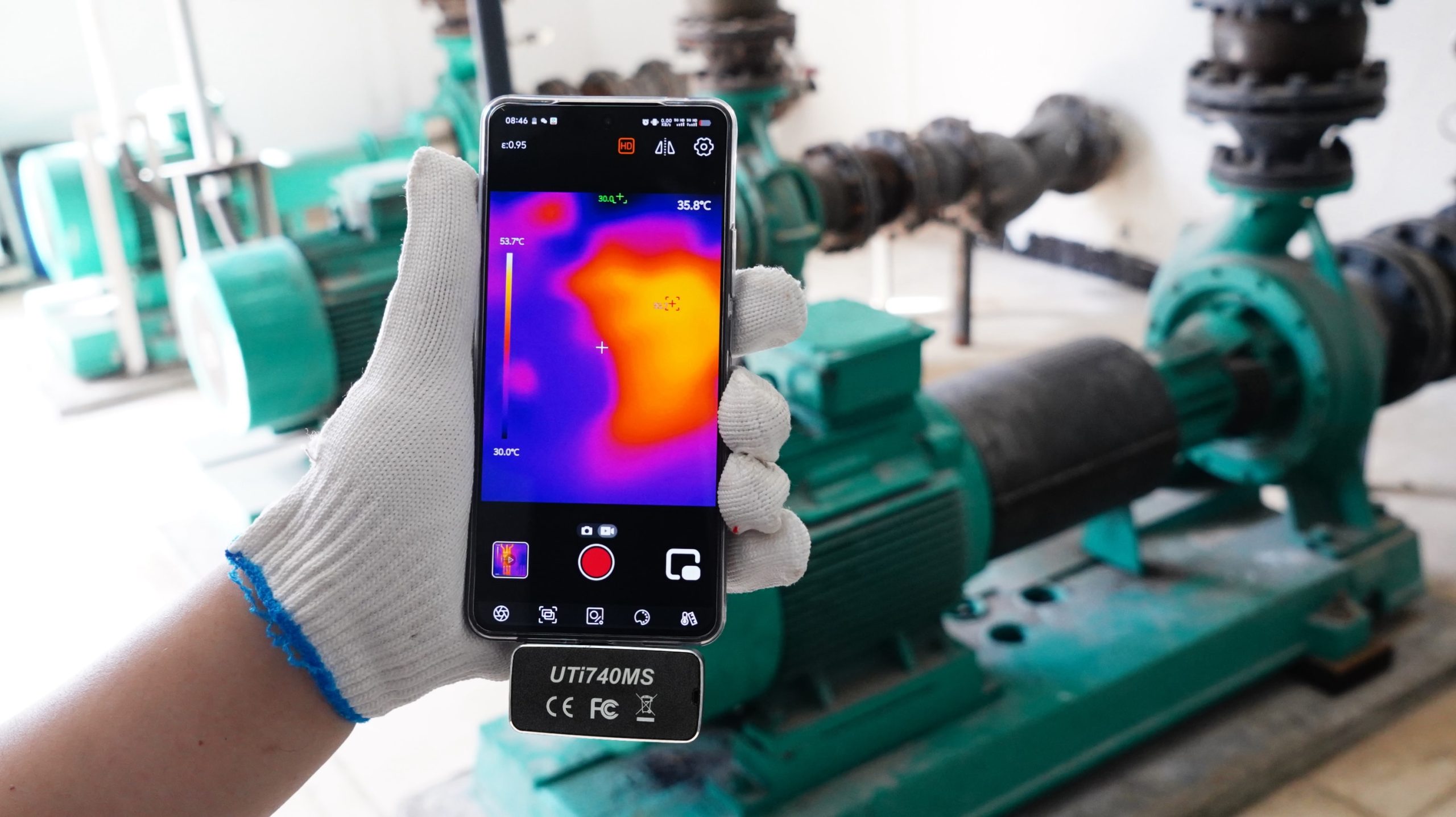

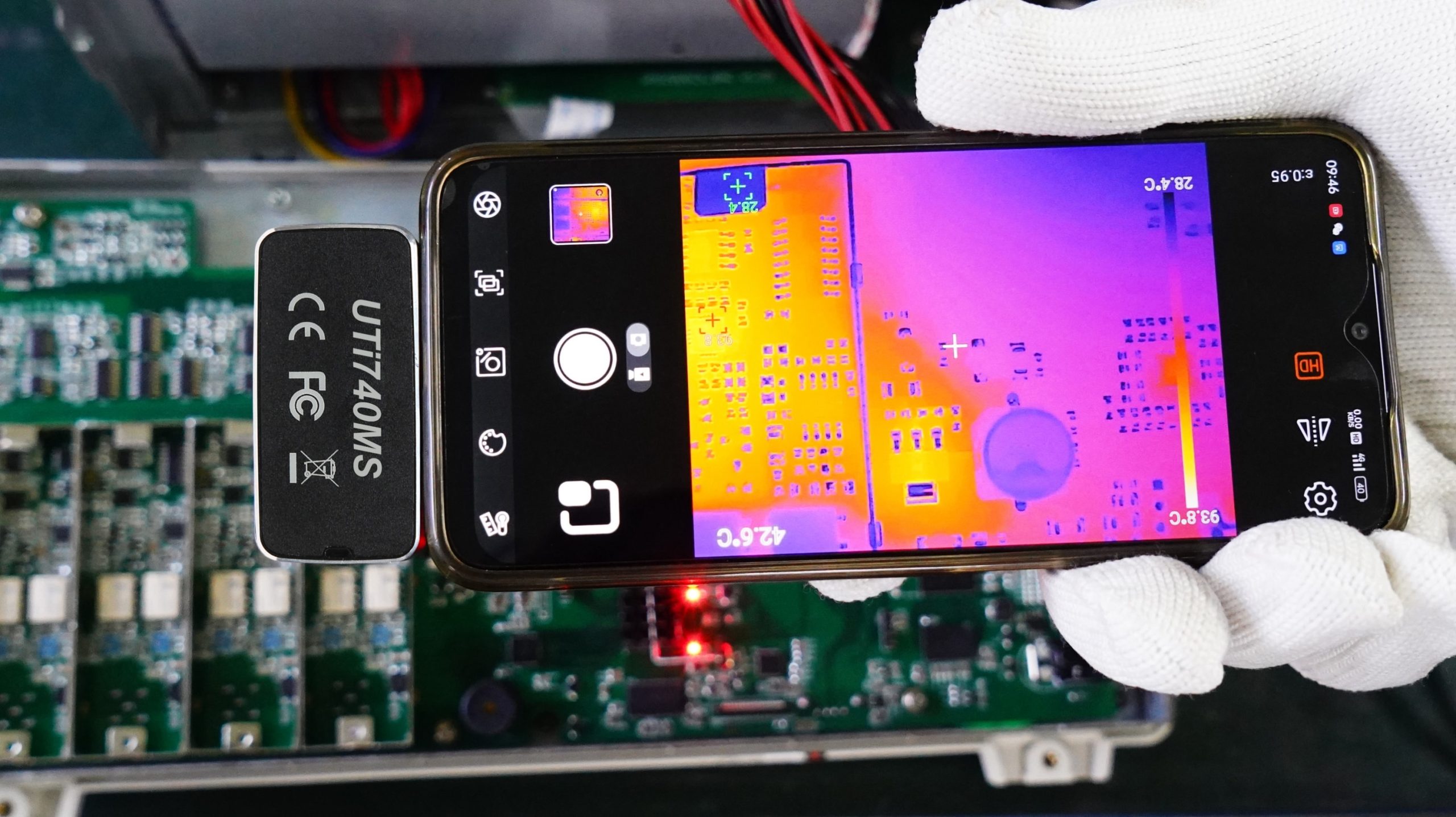

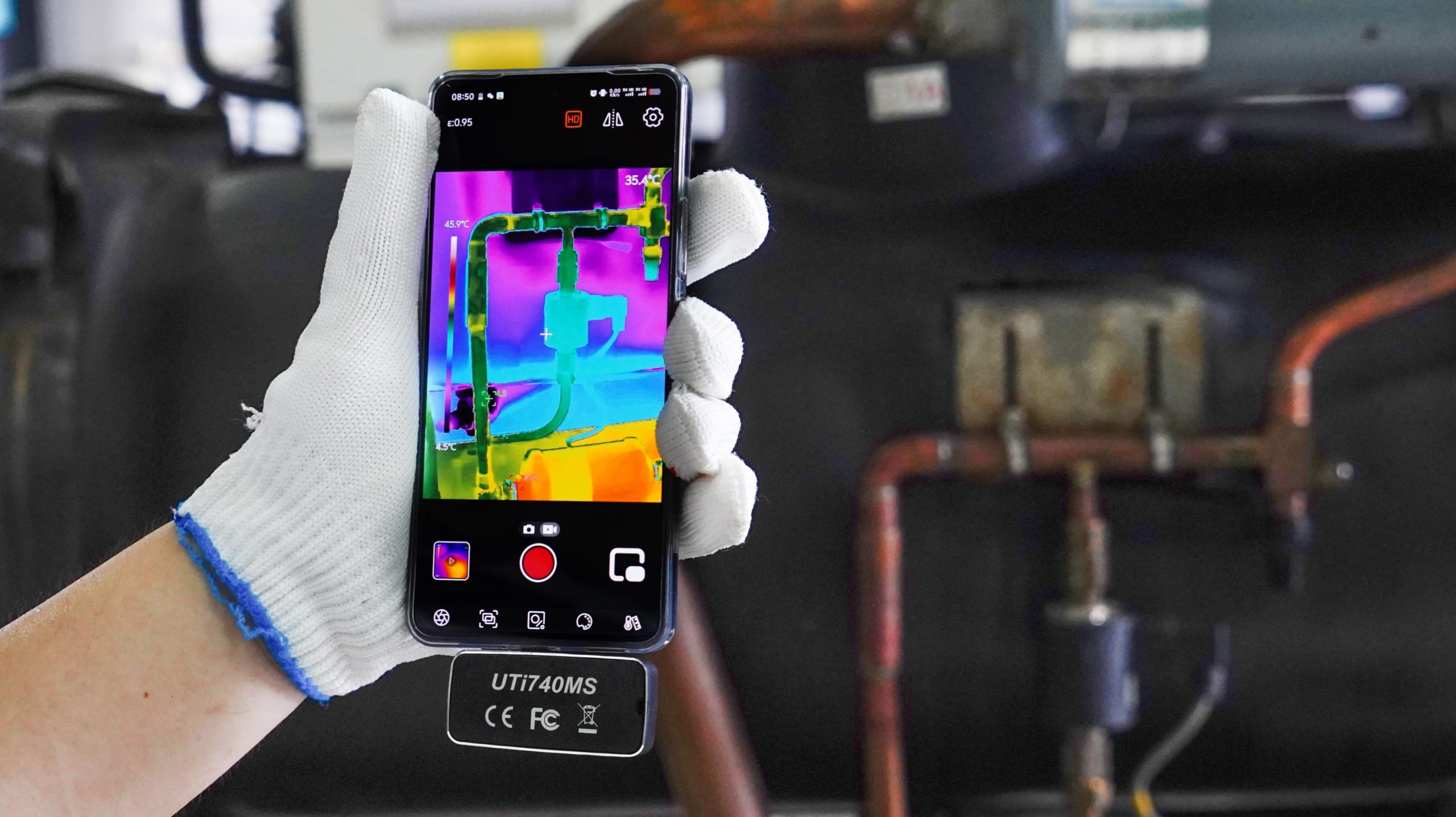

Applications
