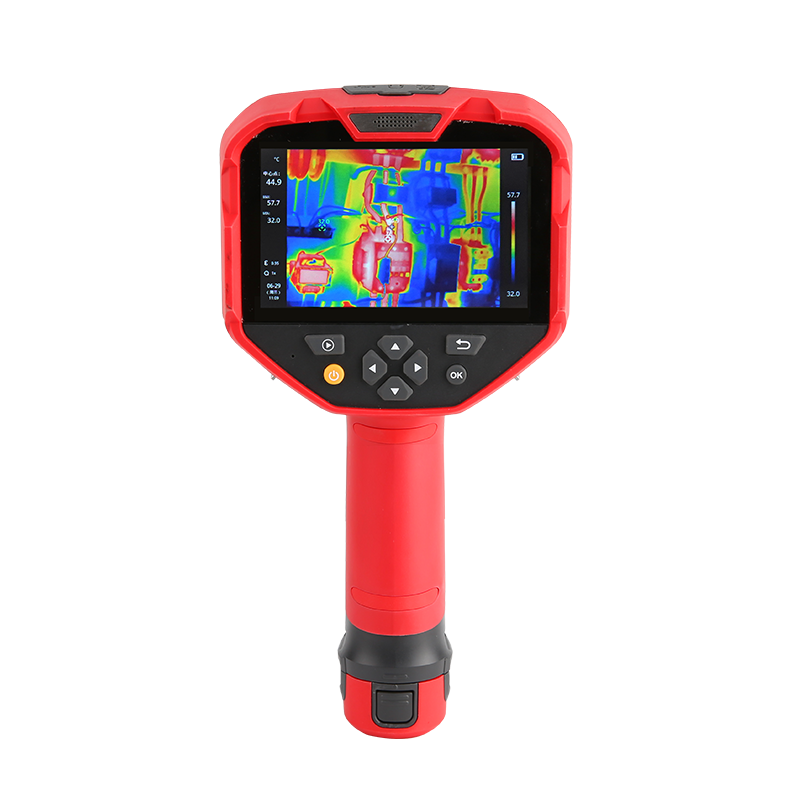

UTi740H

Professional Enhanced Thermal Camera
Rated 0 out of 5
(be the first to review)

UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. UTi740H thermal camera is also with other features :such as WiFi capability ,Isotherm, on screen analyzer,etc. It is a perfect troubleshooting tools for many industrial applications.

Description

Professional Enhanced Thermal Camera

UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. UTi740H thermal camera is also with other features :such as WiFi capability ,Isotherm, on screen analyzer,etc. It is a perfect troubleshooting tools for many industrial applications.

Features :

  • 4.3″ IPS display (800×480)
  • IR resolution:384×288
  • Temperature measurement range: -30℃ to  650℃
  • On screen analyzer :5 Points/1 Line/5 Rectangles/5 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm:2(Auto/Manual)
  • Wi-Fi connection through Mobile App
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof

Product Specifications of UTi740H

Technical Data
IR resolution (Pixels) 384×288
Display 4.3″ IPS (800×480)
Field of view(FOV) 28°×21°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 1.3mrad
Frame rate ≤25Hz
Focus Manual
Temperature measurement range  -30℃ ~ 650℃
Accuracy  -20℃ ~ 650℃, ±2℃ or ±2%
whichever is greater (ambient temperature at 25℃)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 5 Points/1 Line/5 Rectangles/5 Circles
Digital camera resolution 5MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon
Isotherm 2
(Auto/Manual)
Software analysis PC+APP
Wi-Fi
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time About 5 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 32G Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
Languages EN, FR, DE, IT, ES, SV
Product net weight 806g
Product size 266.02mm×126.66mm×136mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, English manual, Li-ion battery pack, Hand strap
Standard individual packing Toolbox,Gift box
Standard Qty per carton 1
Standard carton size 400mm×185mm×345mm
Standard carton G.W. 4.13kg

Applications of UTi740H

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
