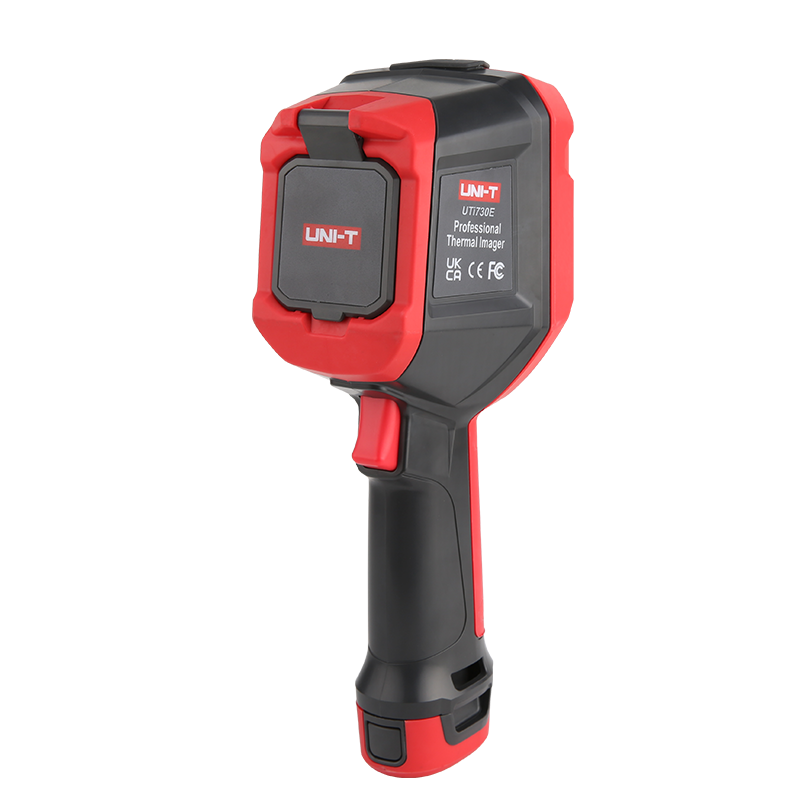

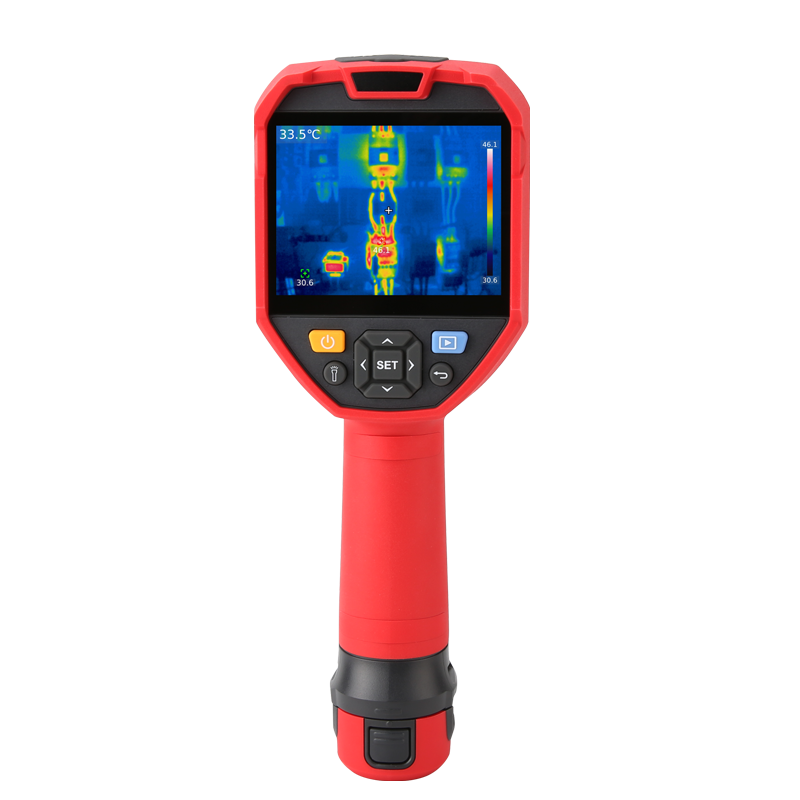

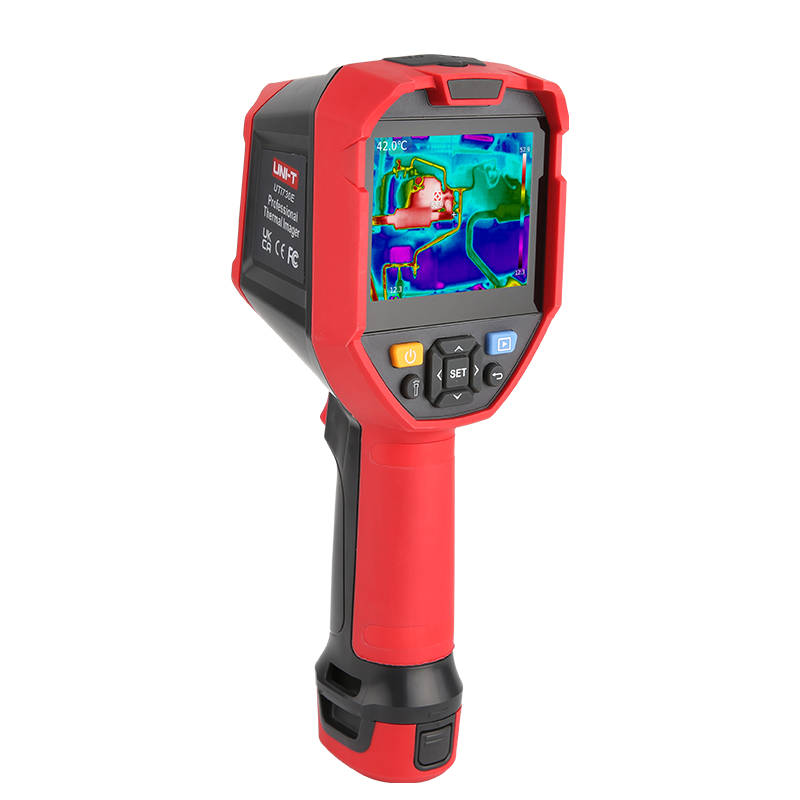

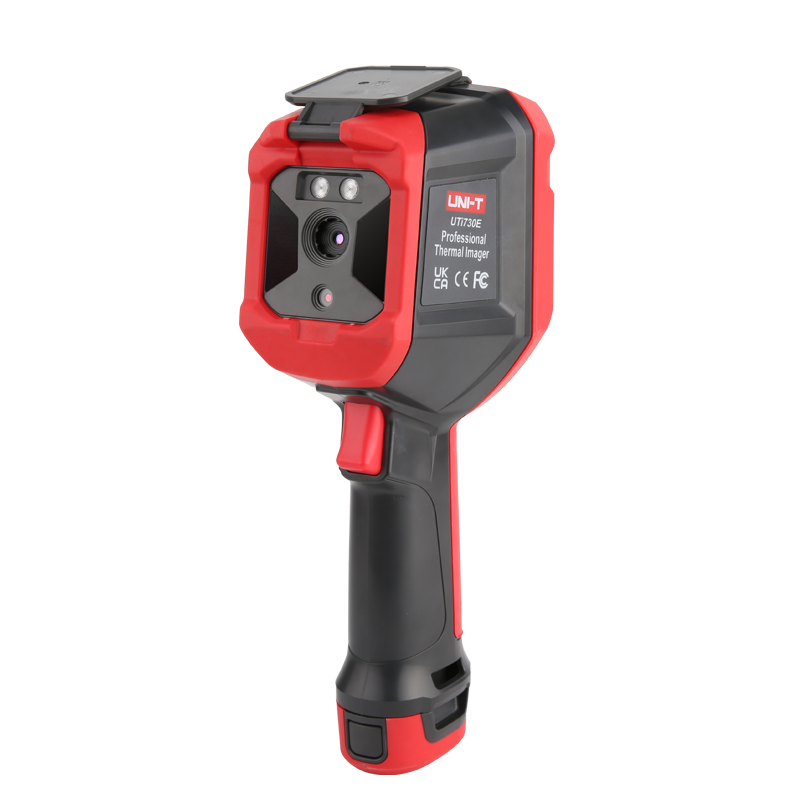

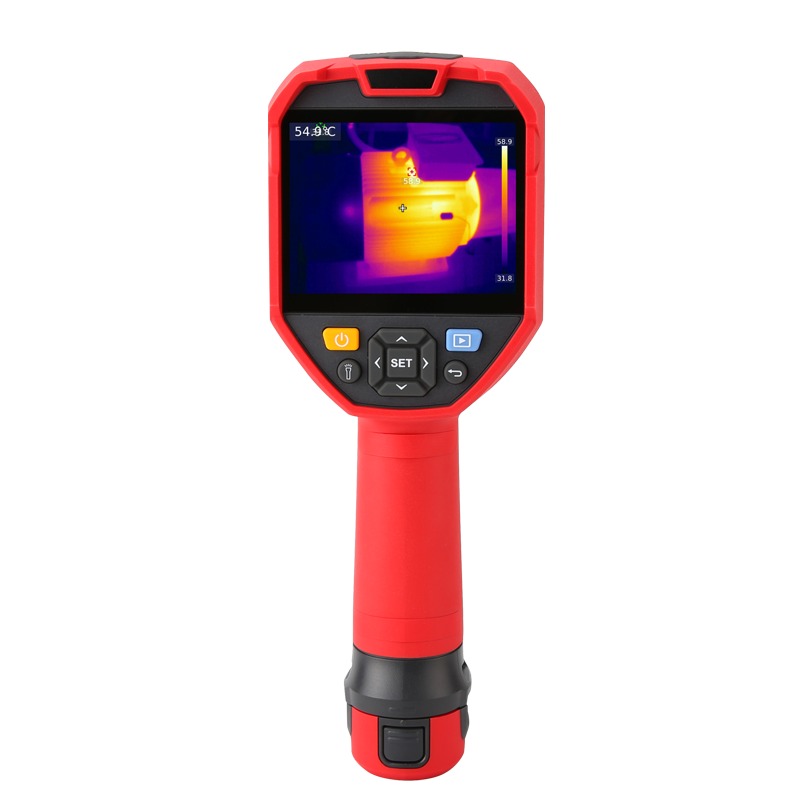

UTi730E
UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s 5200mAh detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.
Description
Enhanced Thermal Camera
UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.
Features :
- 3.5”IPS display screen (640×480 Pixels)
- IR resolution: 320×240
- Temperature measurement range: -20℃to 550℃ / -4℉ to 1022℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles
- Image capture
- Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Image modes: Thermal, Visual image, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm(Auto/Ratio/Below/Above/Section/Manual)
- LED flashlight
- Wi-Fi connection through Mobile App
- QR Code – photo management
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery pack (Type-C rechargeable)

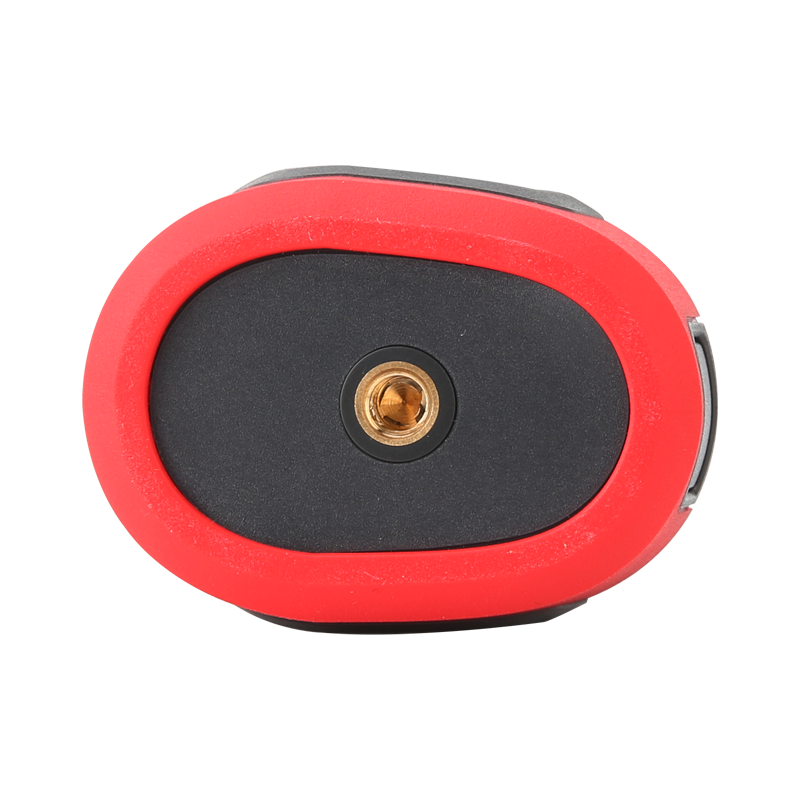

- 1/4”tripod mounting hole
- IP54
- 2m drop proof
Product Specifications of UTi730E
| Technical Data | |
| Display | 3.5″ IPS (640×480) |
| IR resolution(Pixels) | 320×240 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤65mK |
| Focus | Focus Free |
| Field of view(FOV) | 56°(H) × 42°(V) |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Image modes | Thermal, Visual image, Fusion, PIP |
| On screen analyzer | 5 Points/1 Line/3 Rectangles/3 Circles |
| Isotherm | Auto/Ratio/Below/Above/Section/Manual |
| Hi/Lo temperature alarm | LCD animation & LED flashlight |
| Hi/Lo temperature tracking | ✔ |
| Digital camera resolution | 2MP |
| Digital zoom | 2x, 4x |
| Wi-Fi | ✔ |
| LED lighting | ✔ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 5200mAh detachable Li-ion battery pack (UT-M17) |
| Operating time | ≥3 hours (with Wi-Fi off) |
| USB | Type-C |
| Storage | 32GB Micro SD card |
| Image storage format | JPG |
| Protection | IP54 & 2m drop proof |
| Certificates | CE, UKCA, FCC, RoHS |
| Languages | EN, FR, DE, ES, RU |
| Weight | 654g |
| Dimension | 260mm×97mm×99mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Micro SD card, Li-ion battery pack, English Manual, Documents Download Operation Guide |
| Standard individual packing | Toolbox & Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 400mm×185mm×345mm |
| Standard carton G.W. | 3.7kg |
Applications of UTi730E

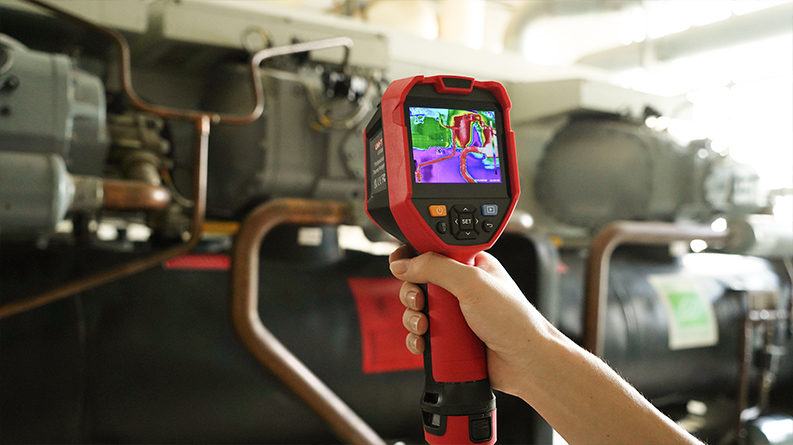

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.

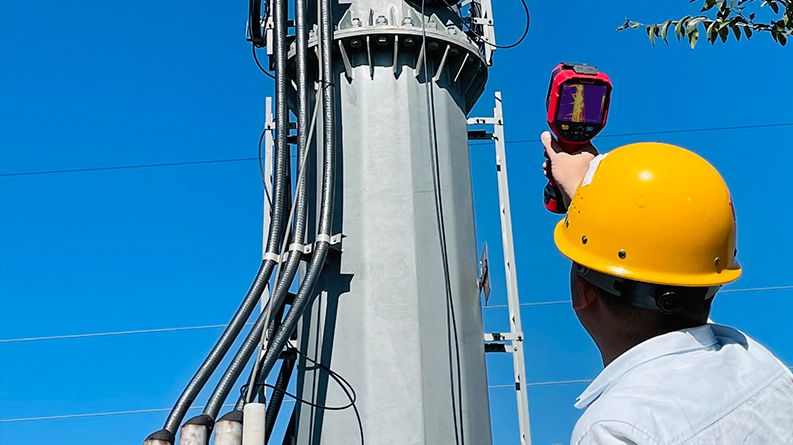

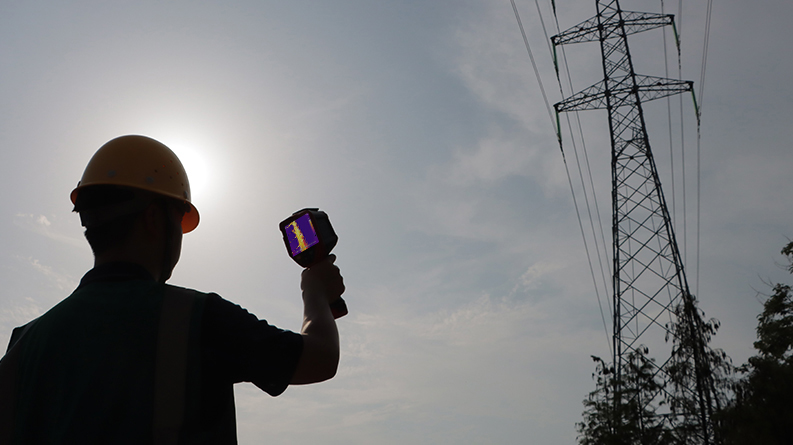

Electric power tower inspection

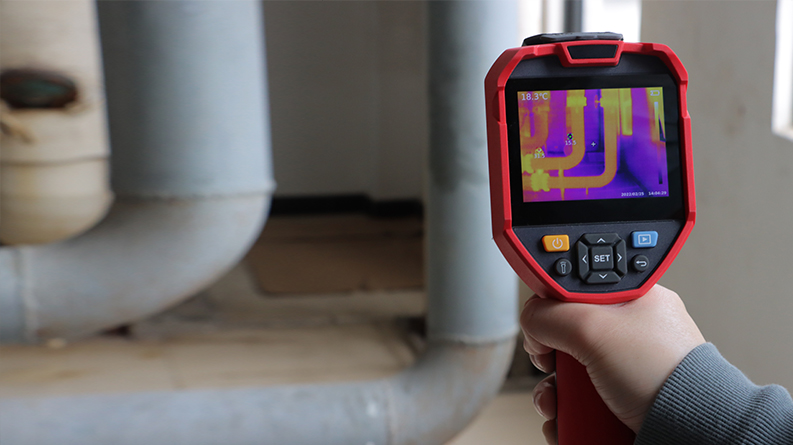

Pipeline Inspection

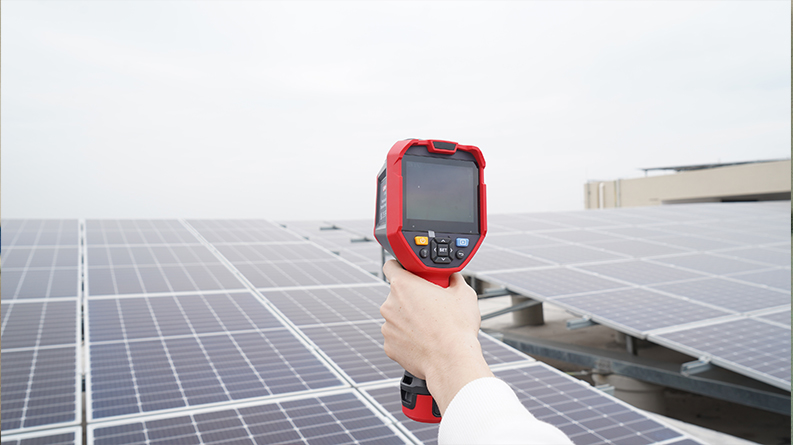

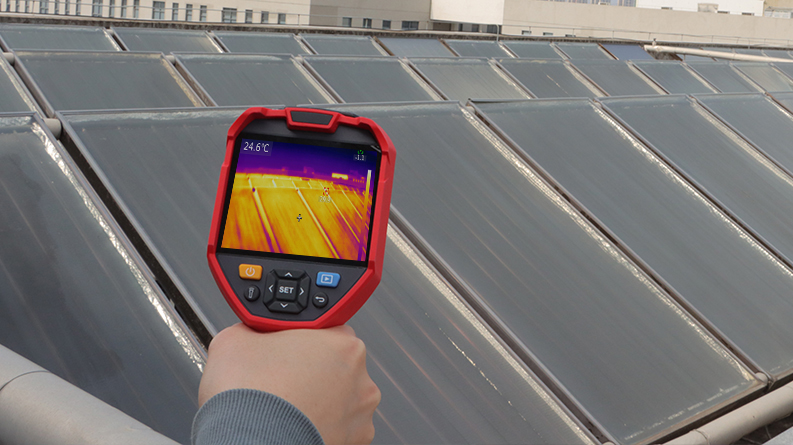

Solar panel inspection

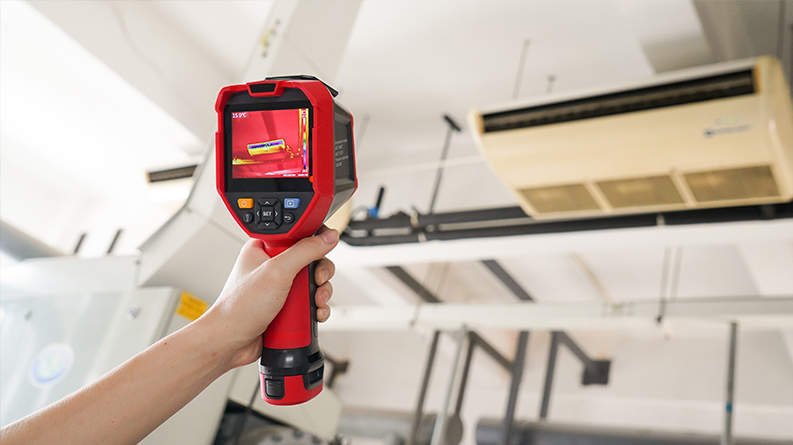

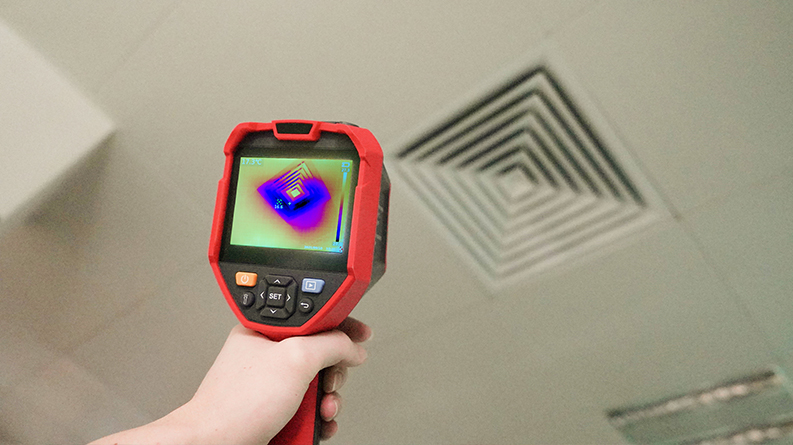

HVAC inspection
