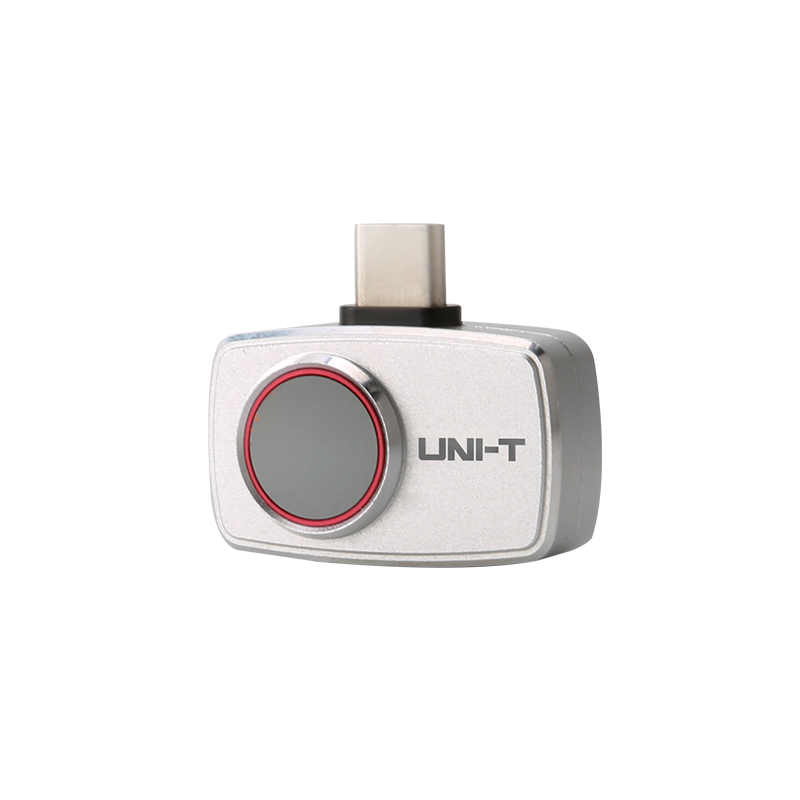

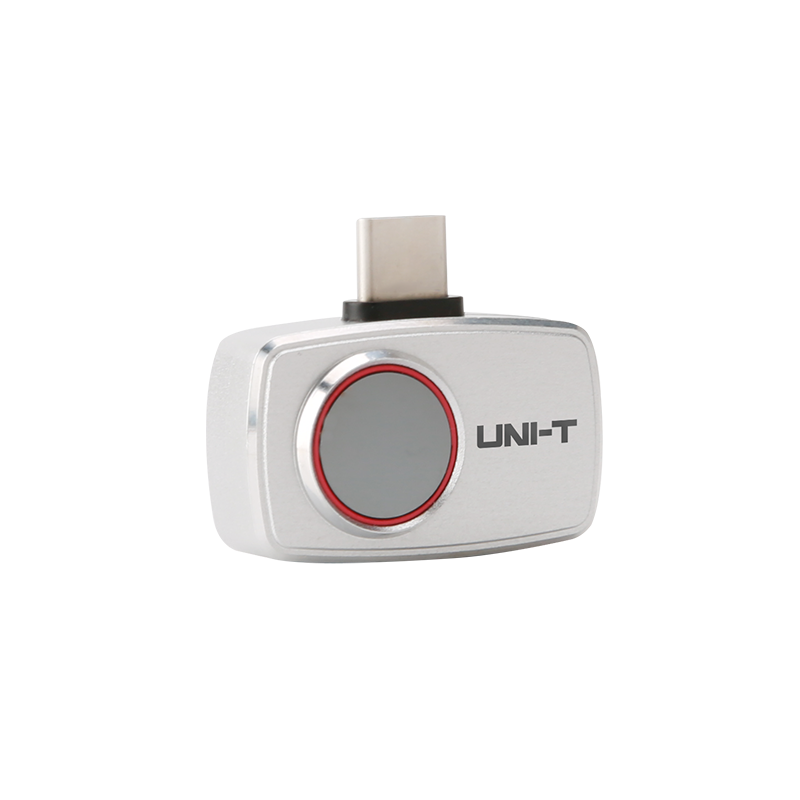

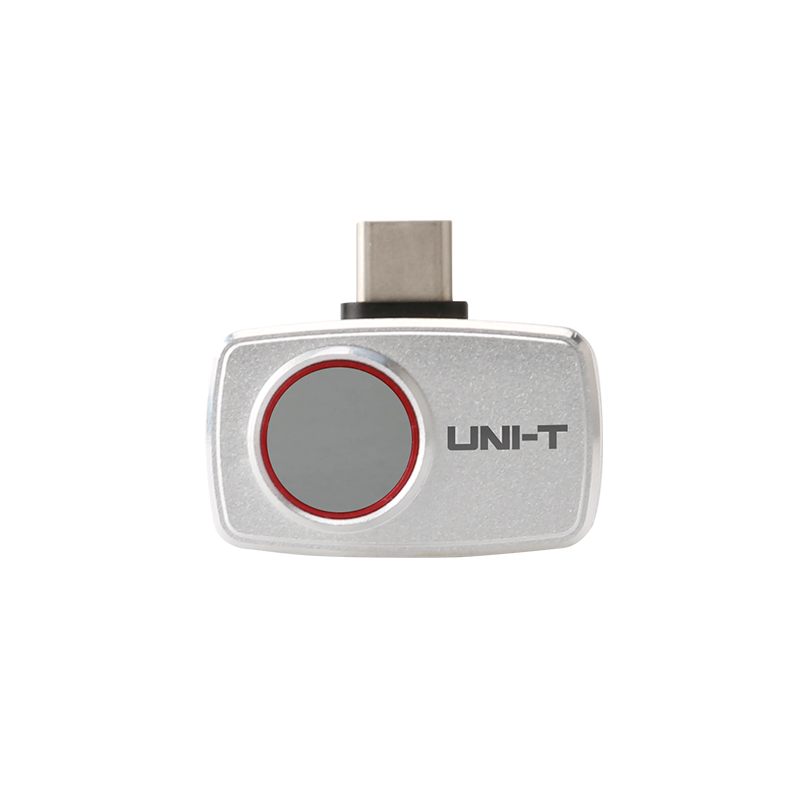

UTi720M
UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.

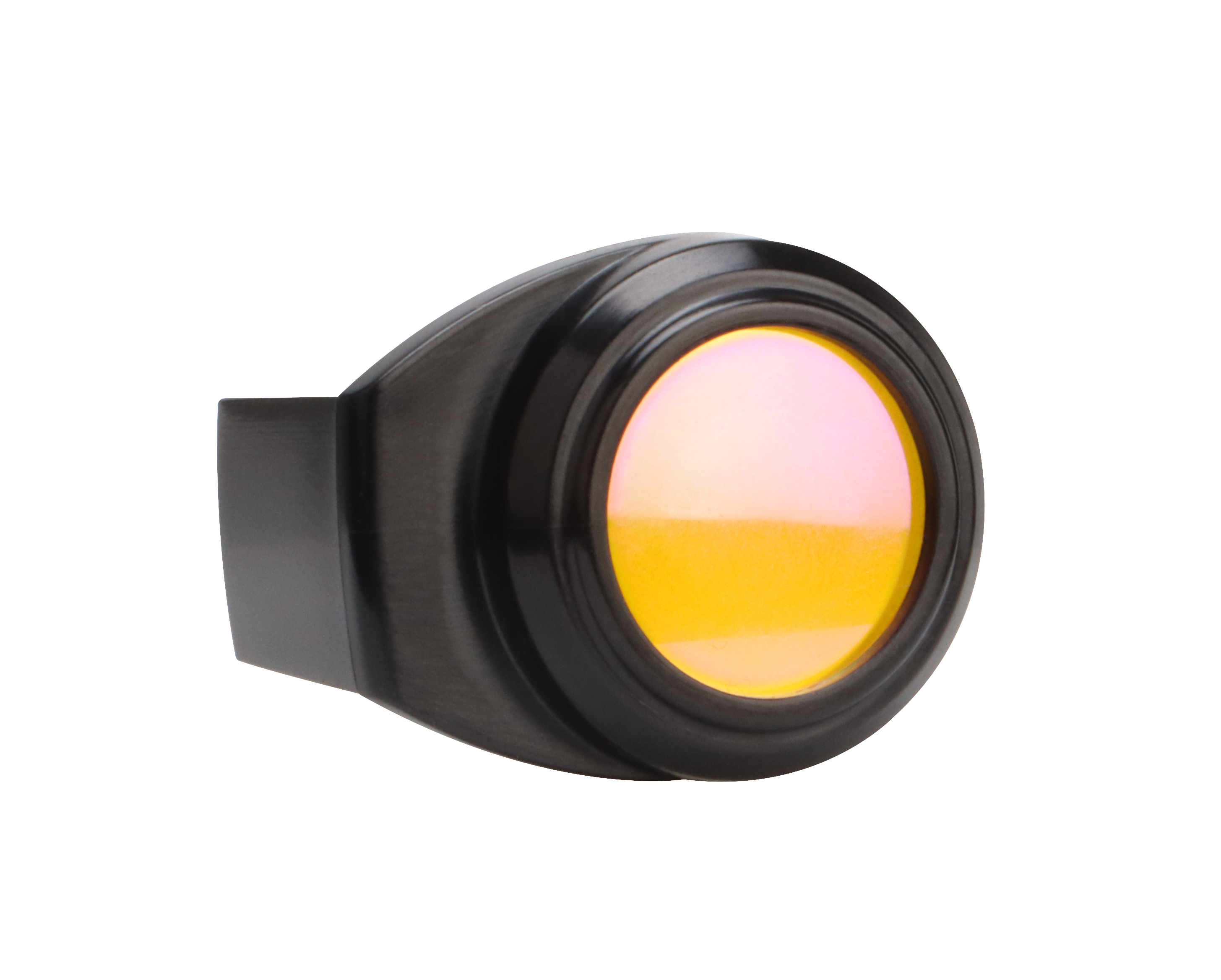

It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.
Description
Smartphone Thermal Camera Module for Android
UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
Features :
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: 3 Points/3 Lines /3 Rectangles
- Image capture
- Video recording
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android (USB Type-C interface)
- 1m extension cable
- 1m drop proof
Product Specifications of UTi720M
Technical Data | |
IR resolution (Pixels) | 256×192 |
Field of view(FOV) | 56.0°×42.2° |
Thermal sensitivity(NETD) | ≤50mK @25℃ |
Spatial resolution(IFOV) | 3.8mrad |
Frame rate | ≤25Hz |
Spectral range | 8~14µm |
Focus | Focus free |
Lens focal length | 3.2mm |
Temperature measurement range | -20℃ ~ 200℃ |
Accuracy | ±2° or ±2% whichever is greater |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
Image modes | Thermal,Fusion,PIP |
On screen analyzer | 3 Points/3 Lines/3 Rectangles |
Hi/Lo temperature alarm | √ |
Video recording | √ |
General Characteristics | |
USB | Type-C |
Drop proof | 1m |
Image/Video storage format | JPEG, MP4 |

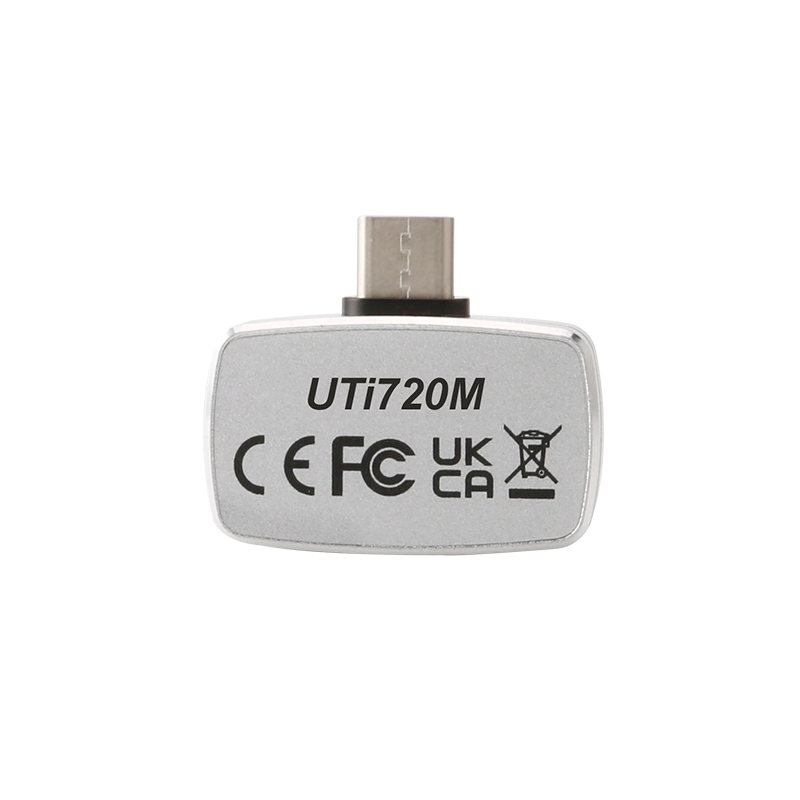

Certificates | CE,UKCA,FCC,RoHS |
Product net weight | 12g |
Product size | 33mm×28.2mm×11.3mm |
Packing Details | |
Standard accessories | USB cable, English manual, Documents download operation guide card; Macro Lens–UT-Z005 (Optional) |
Standard individual packing | Gift box |
Standard Qty per carton | 20pcs |
Standard carton size | 290mm×265mm×325mm |
Standard carton G.W. | 4.4kg |
Applications of UTi720M
PCBA inspection,power distribution cabinet inspection,house water leakage inspection,pipeline inspection, HVAC & Building inspection,Outdoor&night vision, etc.
Software
UTi720M /UTi721M Mobile App (.apk)
UTi720M/UTi721M Mobile App (.zip)
Technical Documents
UTi720M,UTi721M User Manual-English
UTi720M,UTi721M User Manual-French
UTi720M,UTi721M User Manual-German
UTi720M,UTi721M User Manual-Italian
UTi720M,UTi721M User Manual-Spanish
UTi720M,UTi721M User Manual-Swedish
UTi720M-Product Flyer
