UTi716S

Cost-effective Thermal Camera
Rated 0 out of 5
(be the first to review)

UTi716S is equipped with a 12μm infrared detector with 160×120 pixels and 2MP digital camera, combined with Super resolution function and self-developed T-Mix auto-adaptive dual-light fusion algorithm technology for gernerating high-definition IR images with visible details. Its extended temp. measurement range and the built-in LED light & laser pointer meet more application scenarios. 4-button and light-weight design make inspection work easily. Widely used in HVAC, Automotive inspection and electric utility.

Description

Features :

  • 160×120 pixels / 12μm infrared detector
  • Temp. measurement range from -20℃ to 550℃
  • 2MP digital camera
  • Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
  • Super resolution is supported (Available on PC analysis software)
  • Multi-languages OS
  • With LED light & Laser pointer
  • IP54 and wistand the drop of 2m height

Specifications

Technical Data
Display 2.4” TFT (320×240)
IR resolution(Pixels) 160×120
Super resolution(Pixels) √(640×480)
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤25Hz
Thermal sensitivity(NETD) ≤50mK
Focus Focus Free
Field of view(FOV) 40°(H) × 30°(V)
Spatial resolution(IFOV) 4.62mrad
Temperature measurement range -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Functions
Color palettes White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image modes Thermal, Visual image, Fusion (T-Mix), PIP
Hi/Lo temperature alarm LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking
Digital camera resolution 2MP
Laser pointer / LRF √ / —
LED lighting
Analysis software PC
General Characteristics
Battery 2600mAh rechargeable Li-ion battery
Operating time ≥6 hours
USB Type-C
Storage 32GB Internal
Image storage format JPG
Protection IP54 & 2m drop proof
Certificates CE, FCC, RoHS
Languages EN, FR, DE, ES, IT, SV, PL, CZ
Weight 600g
Dimension 197mm×72mm×60mm

Applications

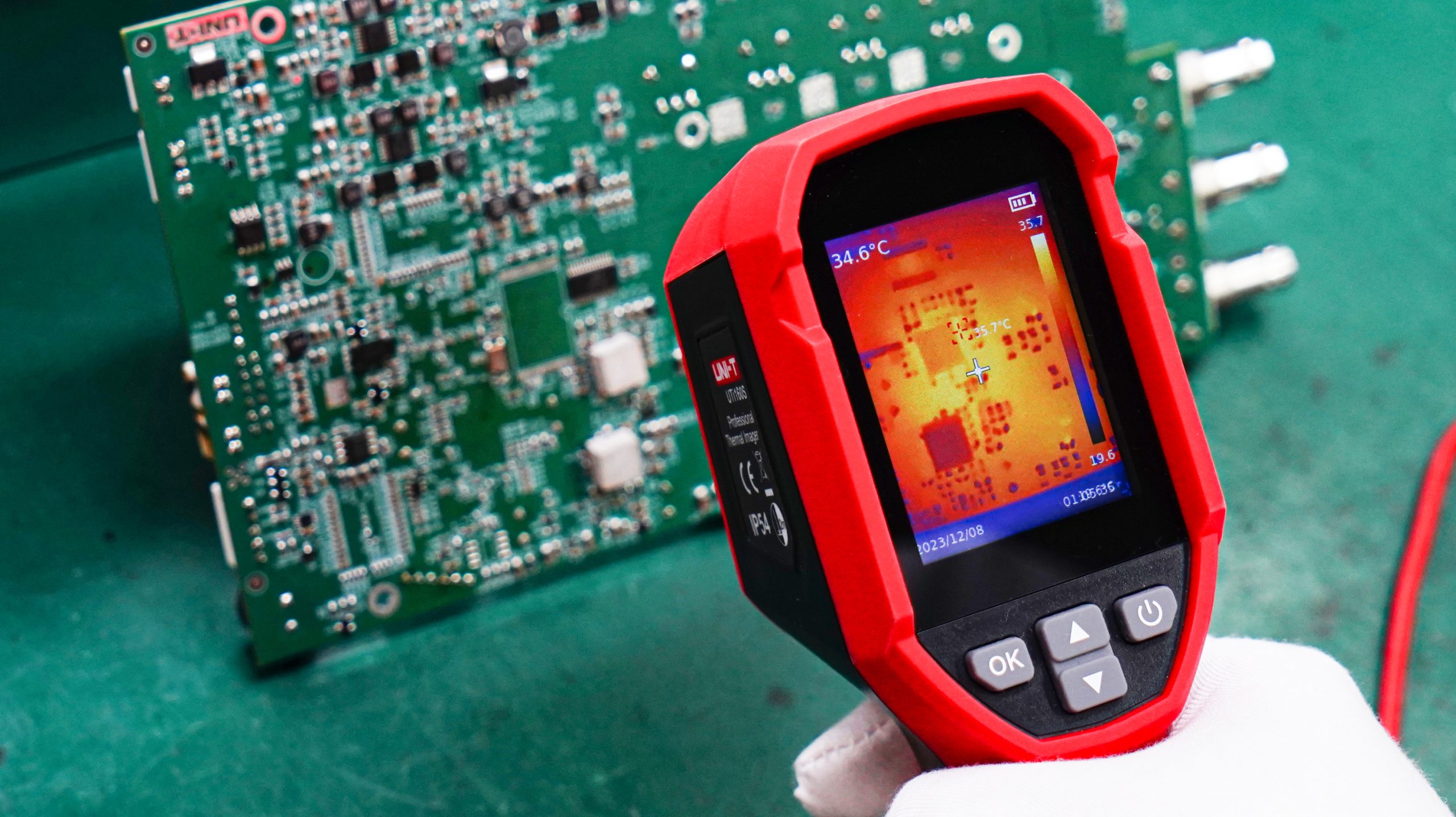

UTi716S Application-1

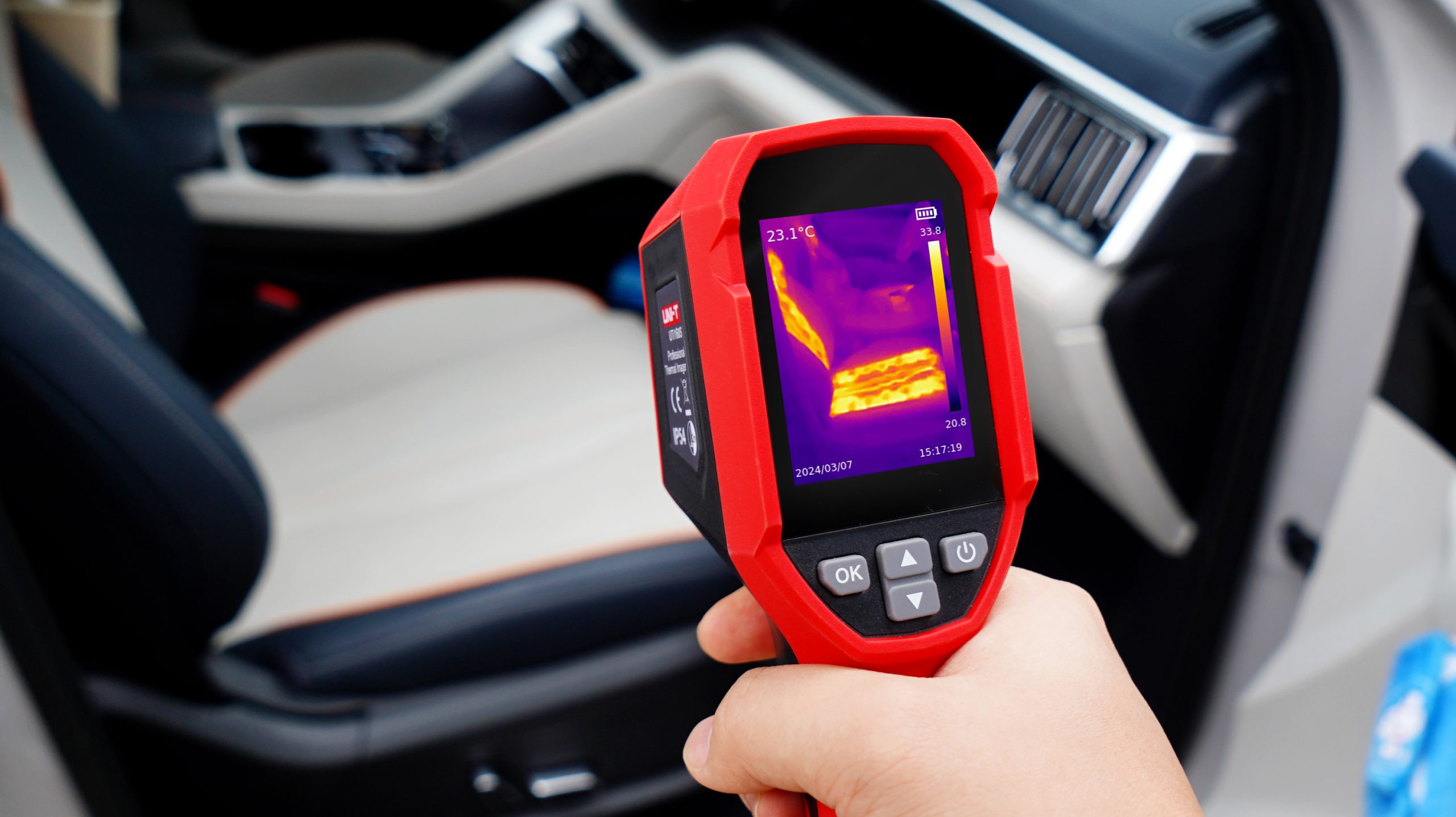

UTi716S Application-2

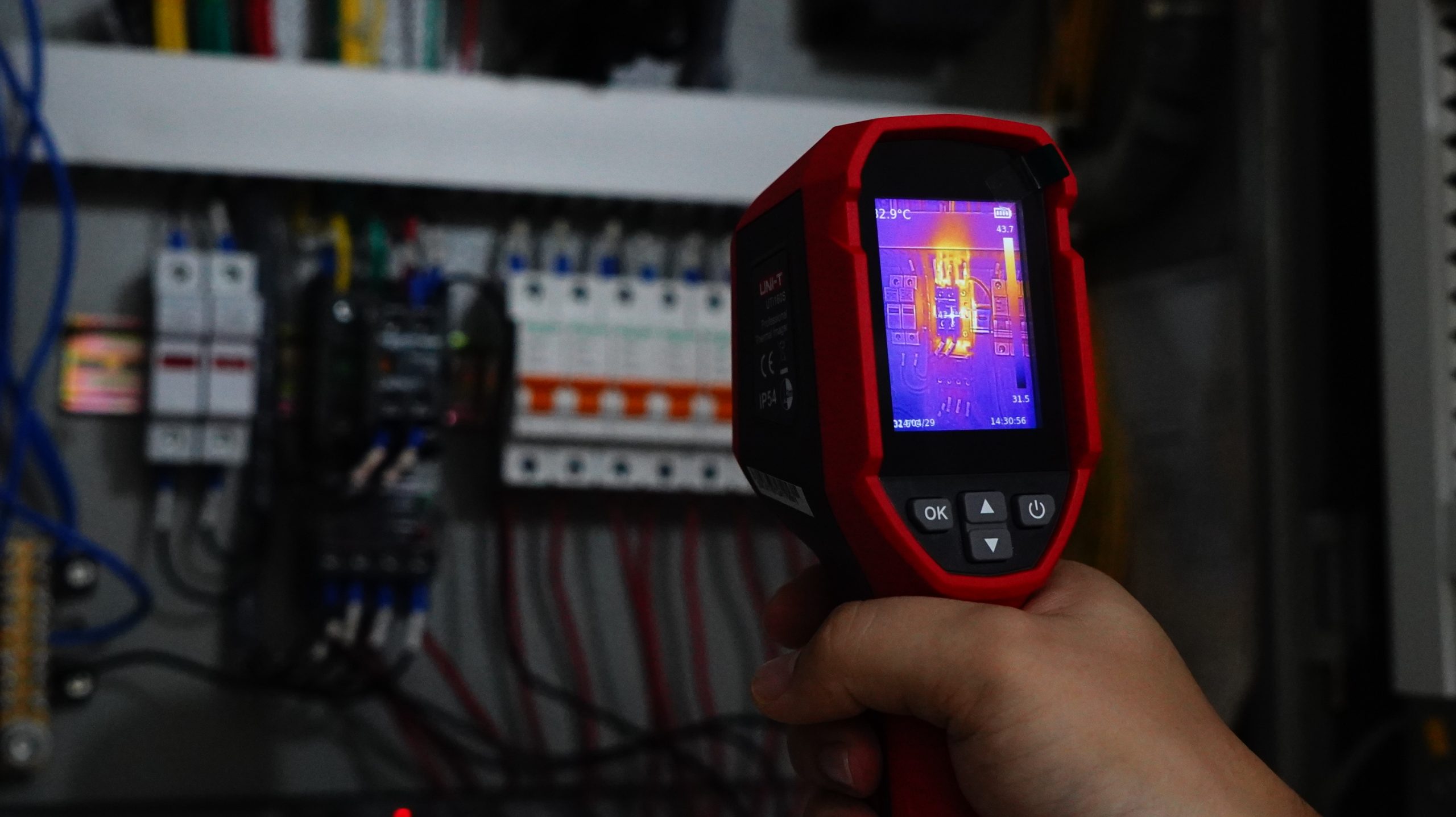

UTi716S Application-3

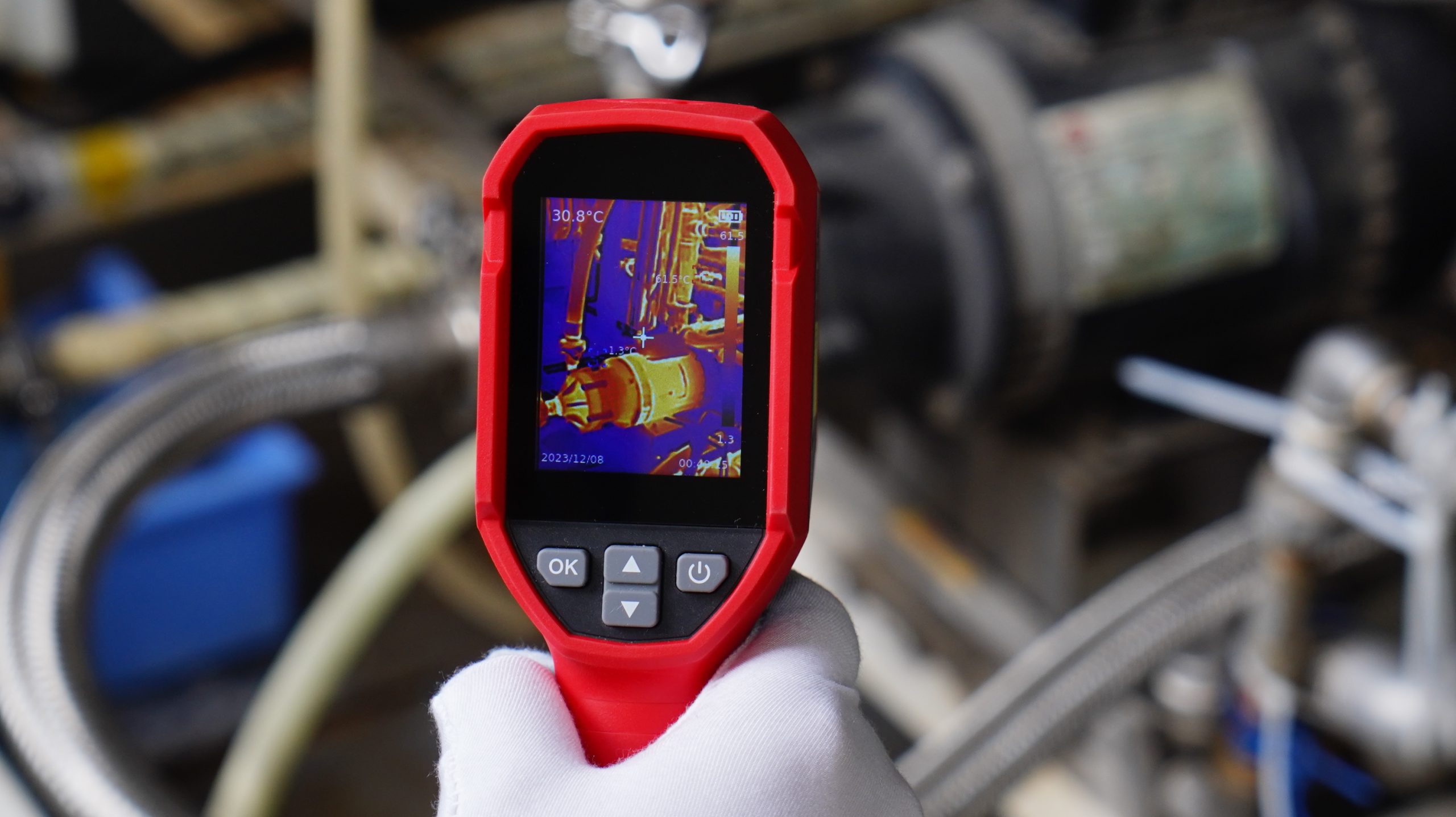

UTi716S Application-4
