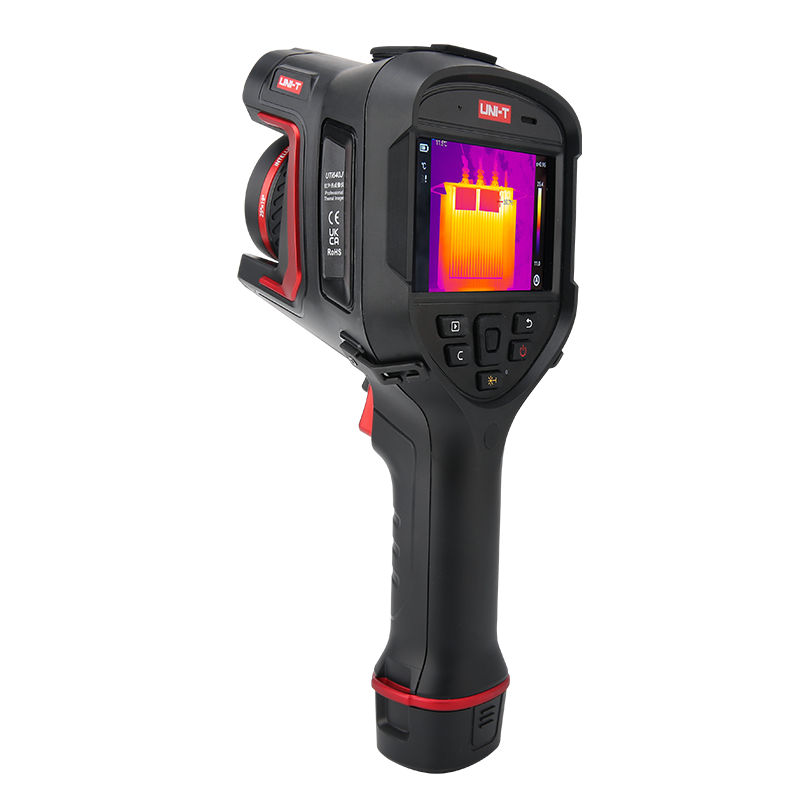

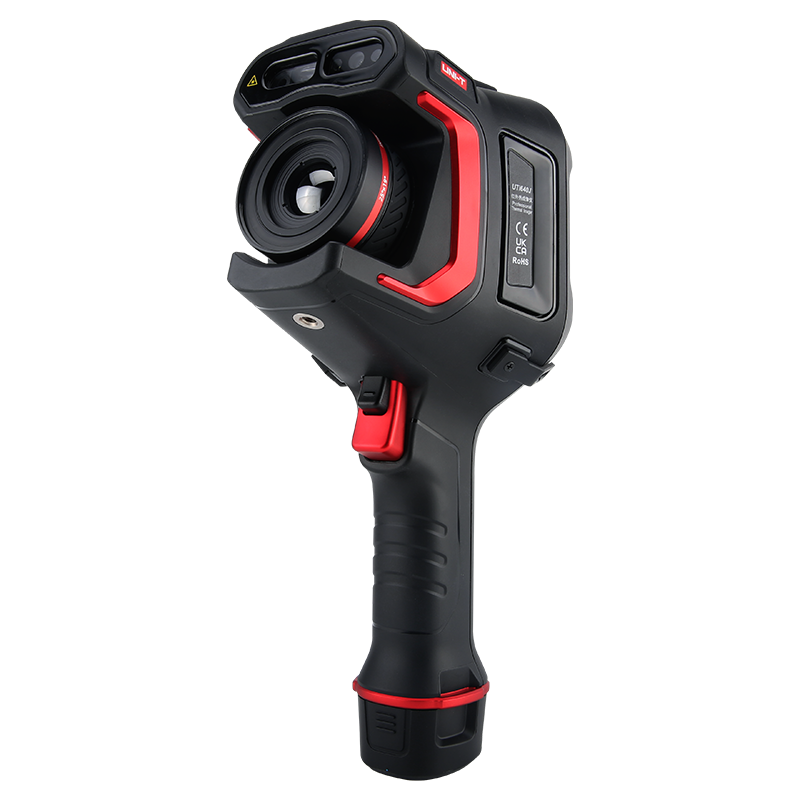

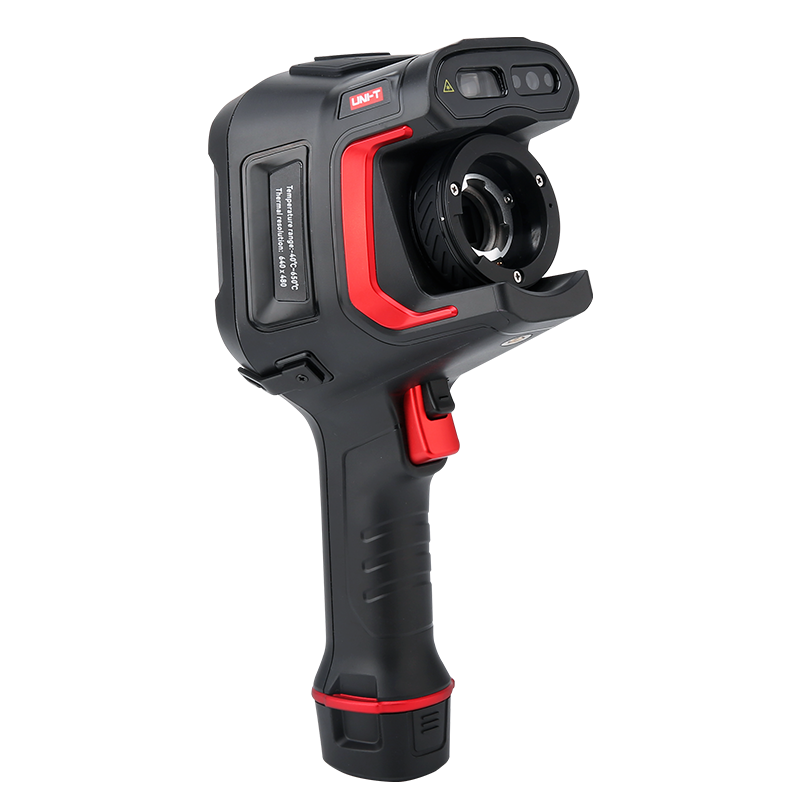

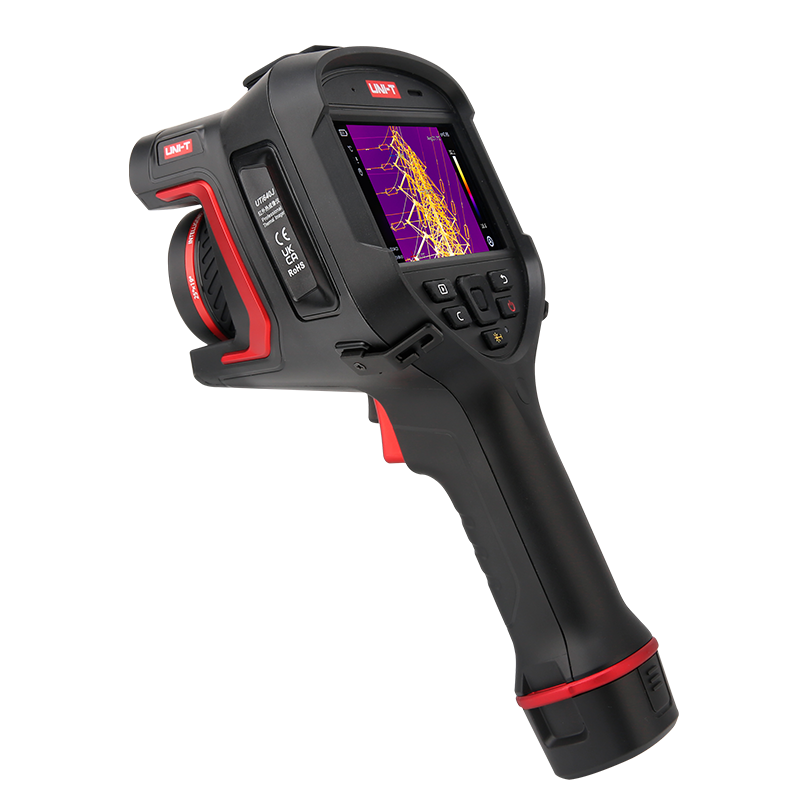

UTi640J
Intelligent Thermal Camera
With a built-in high-sensitivity infrared detector with 640×480 pixels, a 13MP digital camera, and 5 focusing modes. The high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” design. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets.
Description
Features :
- 640×480 pixels IR resolution
- Super resolution (upgraded to 1280×960)
- 13MP digital camera
- Multiple focusing modes (Manual / Automatic / Touch autofocus / Continuous autofocus)
- Interchangeable camera lens (Macro lens/ Wide-angle lens/Medium tele lens/Tele lens/High-temp lens)
- 20x magnification
- Rich color palettes (Customized palette is supported)
- Level & Span mode
- Image outline
- Panoramic stitching
- Dual-light video recording
- LRF
- Image/Text/Voice annotations
- Wi-Fi live streaming
Specifications
| Technical Data | ||||||
| Display | 4.3” LCD Touch (800×480) | |||||
| IR resolution(Pixels) | 640×480 | |||||
| Super resolution | √(1280×960) | |||||
| Spectral range | 7.5~14μm | |||||
| Pixel size | 12μm | |||||
| Frame rate | 30Hz | |||||
| Thermal sensitivity(NETD) | ≤40mK | |||||
| Focus | Manual / Automatic / Touch autofocus / Continuous autofocus | |||||
| Lens recognition | Automatic | |||||

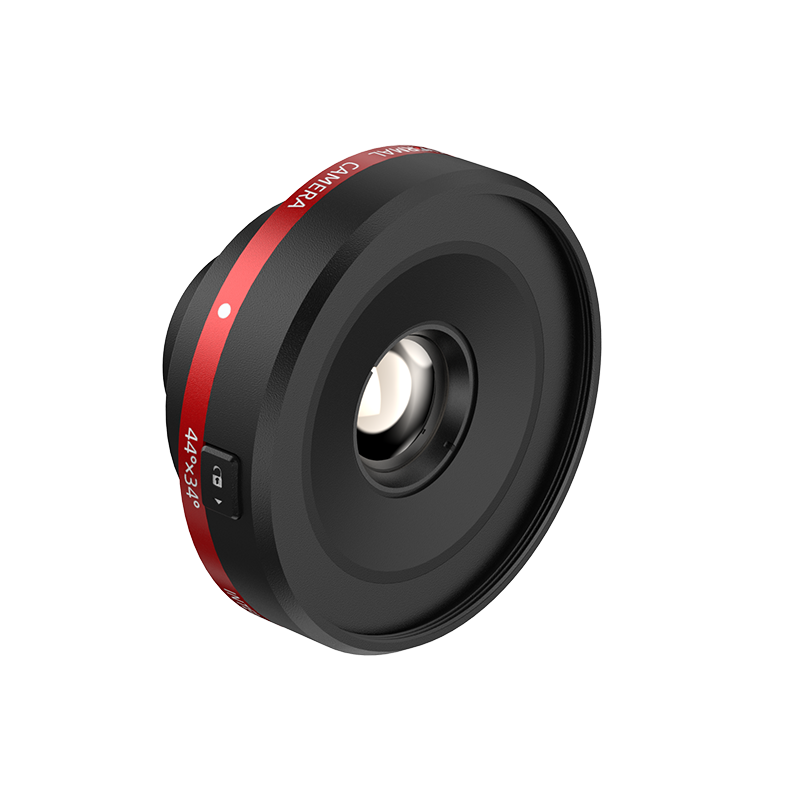

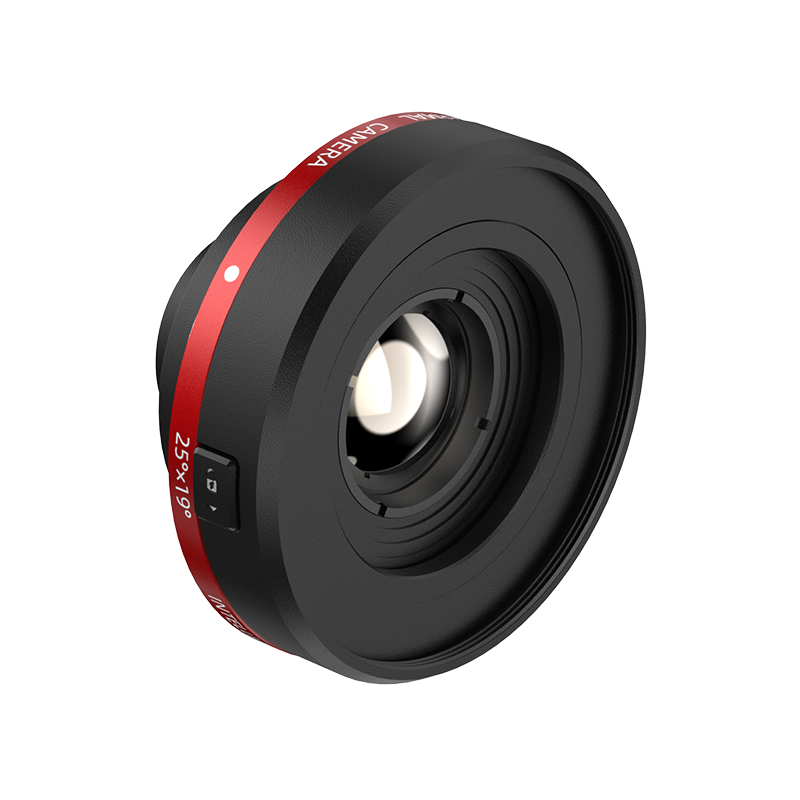

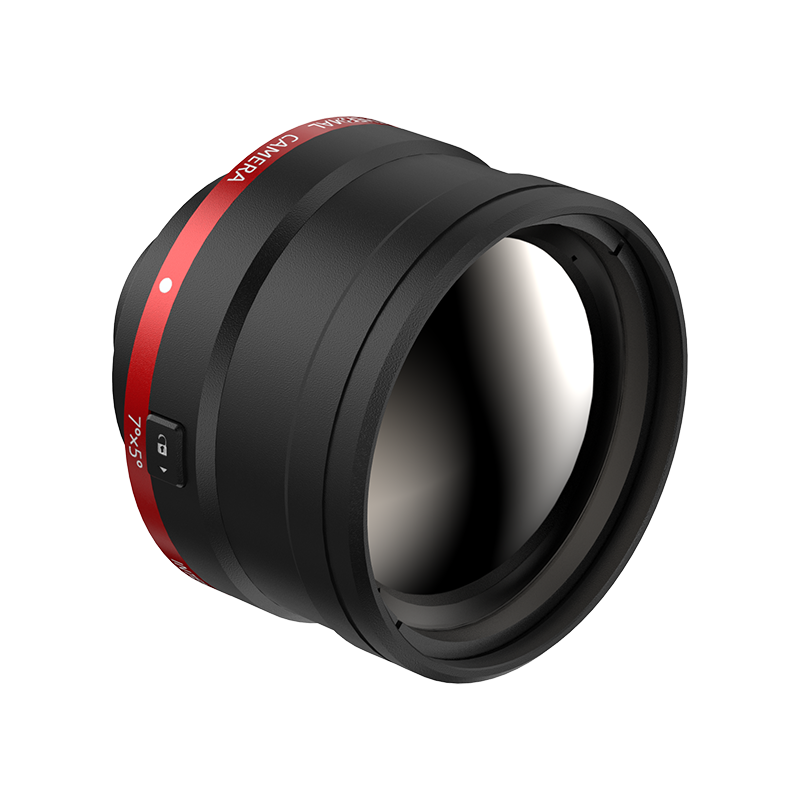

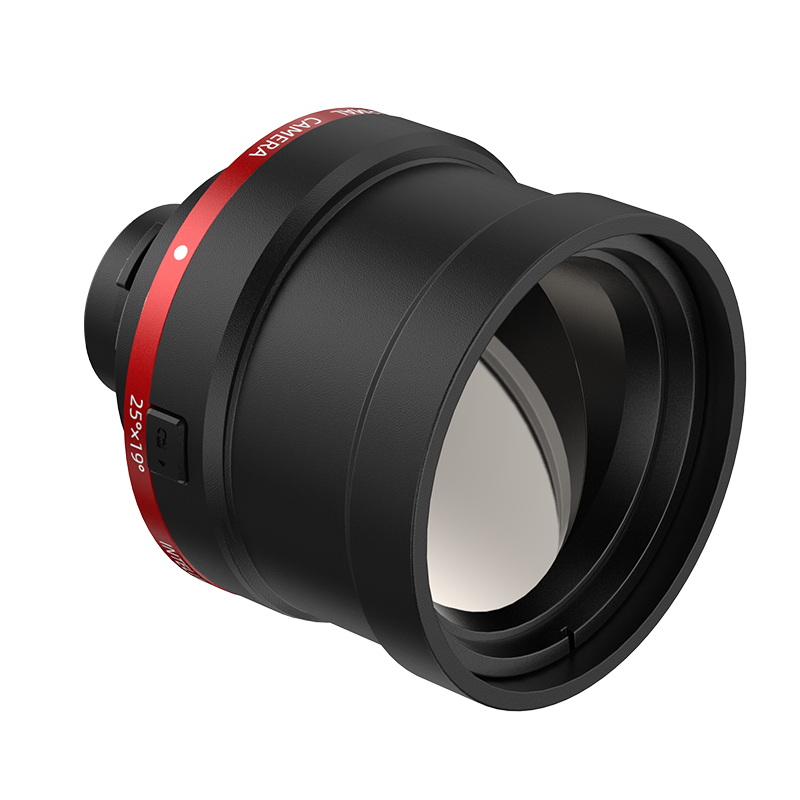

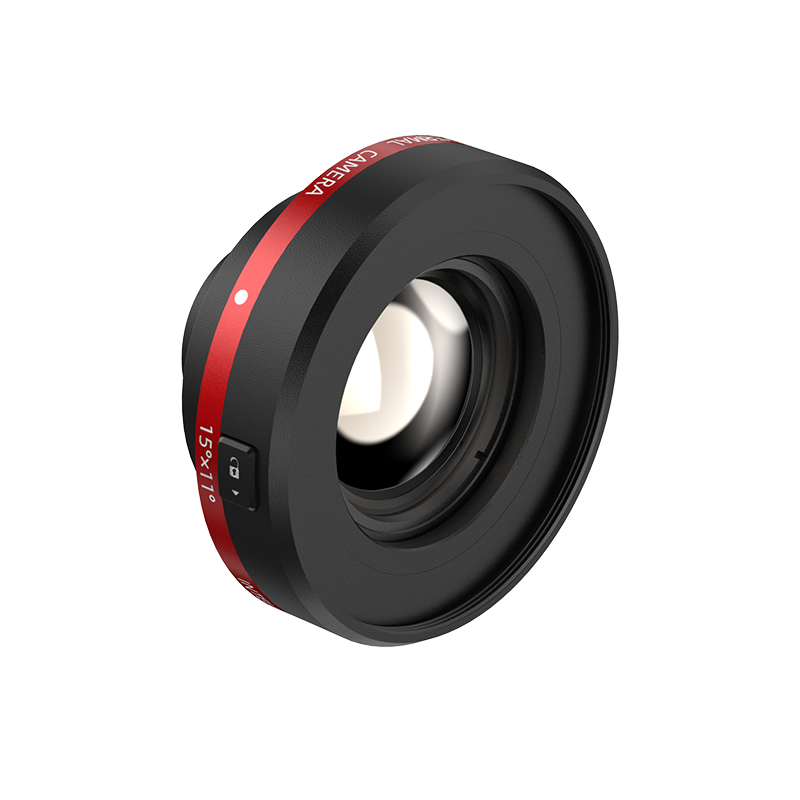

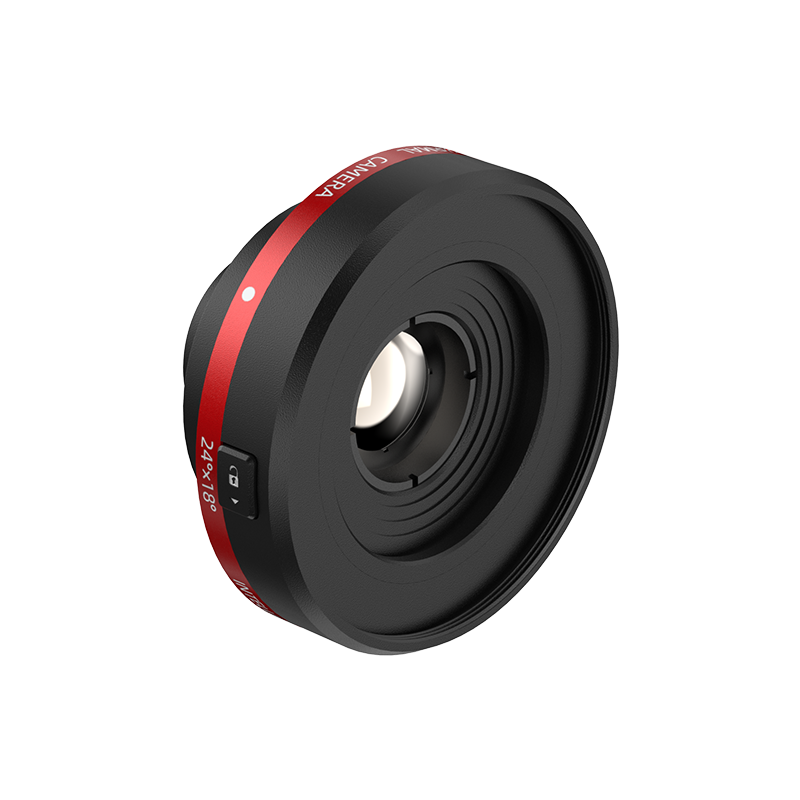

| Infrared lens | Standard lens | Marco lens (Optional) | Wide-angle lens (Optional) | Medium tele lens (Optional) | Tele lens (Optional) | High-temp lens (optional) |
| Lens focal length | 17.7mm | 16.2mm | 10.0mm | 29.0mm | 62.9mm | / |
| Field of view(FOV) | 25°×19° | / | 44°×34° | 15°×11° | 7°×5° | 25°×19° |
| Temperature measurement range | Support auto-switching: -40°C~150°C, 0°C ~650°C 500°C ~2000°C (Optional Hi-temp. Lens) |
|||||
| Accuracy | ±2℃ or ±2% whichever is greater | |||||
| Functions | ||||||
| Color palettes | White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized | |||||
| Image modes | Thermal, Visual image, Fusion, PIP | |||||
| On screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles | |||||
| Isotherm | Automatic, Semi-automatic, Manual | |||||
| Level & Span | √ | |||||
| Image outline | √ | |||||
| Panoramic stitching | √ | |||||
| Hi/Lo temperature alarm | LCD animation, LED flashlight, Buzzer | |||||
| Hi/Lo temperature tracking | √ | |||||
| All-around voice assistant | √ | |||||
| Annotation | Text, Voice, Image | |||||
| Digital camera resolution | 13MP | |||||
| Digital zoom | 1.1x~20x | |||||
| Video recording | √ | |||||
| Voice recording | √ | |||||
| Wi-Fi / Wi-Fi live streaming | √ | |||||
| Bluetooth | √ | |||||
| GPS | √ | |||||
| Laser pointer / LRF | √ | |||||
| LED lighting | √ | |||||
| Analysis software | PC+APP | |||||
| General Characteristics | ||||||
| Battery | 3350mAh detachable Li-ion battery pack | |||||
| Operating time | ≥4 hours (with Wi-Fi off) | |||||
| USB | Type-C | |||||
| Storage | 64GB Internal & 64GB Micro SD card | |||||
| Image storage format | Jpg | |||||
| Video storage format | MP4 & Irgd | |||||
| Protection | IP54 & 2m | |||||
| Languages | ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR | |||||
| Weight | ≤1.15KG (included standard lens & battery) | |||||
| Dimension | 292mm×125mm×125mm | |||||

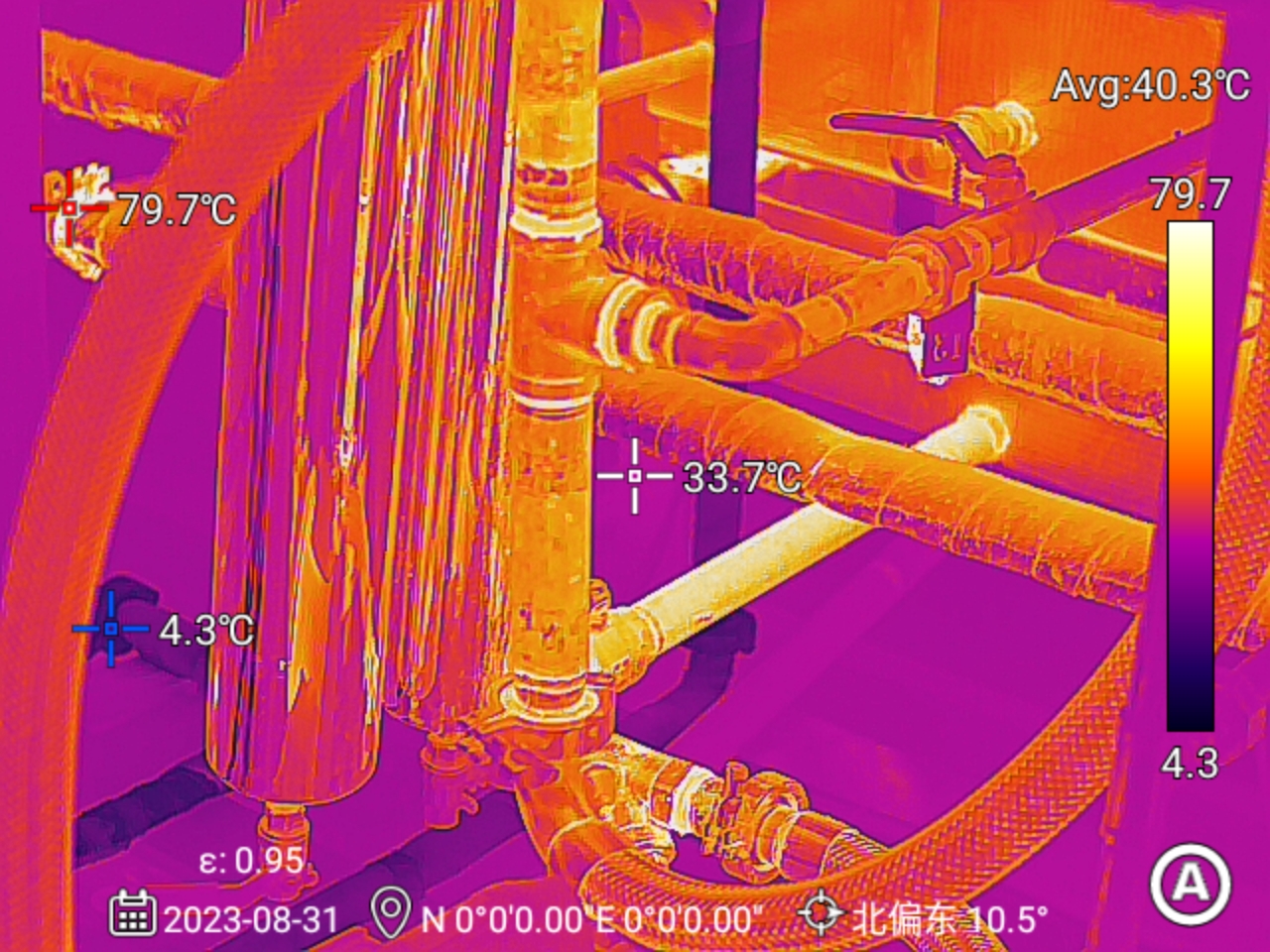

Applications
