UTi640C
UTi640 is the flagship model for UNI-T brand. Like smart phones, it is specially designed for the users who work in the infrared temperature measurement industry. UTi640C adopts infrared sensors with high sensitivity and resolution, which provides crystal clear infrared images along with higher temperature measurement range and accuracy. Other features include Android operating system, large display screen display, and rotating lens structure.UTi640C can also synchronously collect visible and infrared images, and display key observation positions by PIP and MIF methods. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal image application platform. Giving users more outstanding visual effects and convenient operation experience.
Description
Intelligent Pro-grade Thermal Camera
UTi640 is the flagship model for UNI-T brand. Like smart phones, it is specially designed for the users who work in the infrared temperature measurement industry. UTi640C adopts infrared sensors with high sensitivity and resolution, which provides crystal clear infrared images along with higher temperature measurement range and accuracy. Other features include Android operating system, large display screen display, and rotating lens structure.
UTi640C can also synchronously collect visible and infrared images, and display key observation positions by PIP and MIF methods. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal image application platform. Giving users more outstanding visual effects and convenient operation experience.
Features :
- 5” touch display screen (1280×720 Pixels)
- Flexible flip display screen
- IR resolution: 640×480
- Temperature measurement range: -40℃ to 800℃ , external lens up to 2000℃ / -40℉ to 1472 ℉, external lens up to 3632℉
- Interchangeable lens (Optional Telephoto lens / High Temp lens)
- Electric/manual Focus
- 70 degrees rotating optical lens part
- 4” Viewfinder (1280*960 LCOS display screen)
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: Point 10/Line 5/Rectangle 5/Circle 5
- Image capture
- Video recording
- Voice recording
- Image modes: Thermal,Visual image,Fusion,PIP
- Digital Zoom: 1.1~10x (continuous zoom)
- Color palettes: 10 (White hot, Lava, Ironbow, Hot iron, Medical, North pole, Rainbow1, Rainbow2, Black hot, Red)
- Isotherm: 2(Above, Below)
- LED flashlight
- Laser pointer
- GPS & Compass
- Bluetooth connection
- Wi-Fi connection through Mobile APP
- PC software analysis and real-Time image projection
- Replaceable battery pack
- IP54
- 1m drop proof
Product Specifications of UTi640C
| Technical Data | |
| IR resolution (Pixels) | 640×480 |
| Display | 5” TFT LCD Touch (1280×720) |
| Field of view(FOV) | 24.6°×18.5° |
| Thermal sensitivity(NETD) | ≤30mk |
| Spatial resolution(IFOV) | 0.67mrad |
| Frame rate | ≤25Hz/9Hz |
| Spectral range | 7.5~14µm |
| Focus | Electric/Automatic |
| Temperature measurement range | -20℃~150℃,150℃~800 (standard lens) 800~2000℃ (optional lens) |
| Accuracy | ±2℃ or ±2% whichever is greater (standard lens) ±1℃ or ±1% whichever is greater (optional lens) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 10 (White hot, Lava, Ironbow, Hot iron, Medical, North pole, Rainbow1, Rainbow2, Black hot, Red) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 10 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution | 5MP |
| Digital zoom | 1.0~10x continuous |
| Hi/Lo temperature alarm | Icon,LED flashlight,Buzzer |
| Isotherm | Above, Below |
| Software analysis | PC |
| Video recording | √ |
| Voice recording | √ |
| Wi-Fi / Bluetooth | √ |
| GPS | √ |
| Laser pointer | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery (11.1V 2900mAh) |
| Battery operation time | ≥ 4 hours |
| USB | HDMI,Micro USB |
| IP rating | IP54 |
| Storage | 16G Internal, 16GB SD card |
| Image/Video storage format | Pic: JPEG; Video: irgd |
| Product net weight | 1350g |
| Product size | 206mm x145mm×135mm |
| Packing Details | |
| Standard accessories | Li-ion battery, Adapter, Adapter plug (5 pcs), 16GB SD Card, Shoulder strap, USB cable, HDMI cable, Ethernet cable, CD-ROM, User Manual, Quick operation manual, Parts list |
| Standard individual packing | Toolbox,Gift box |
| Standard Qty per carton | 1 |
| Standard carton size | 480mm×370mm×235mm |
Applications of UTi640C

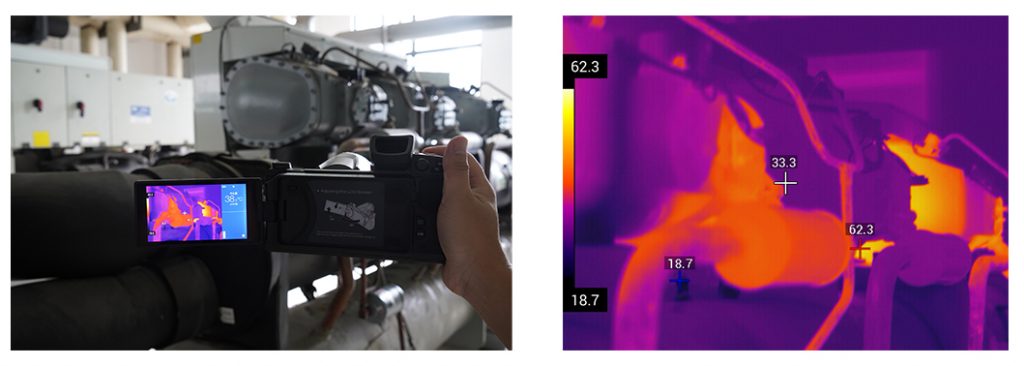

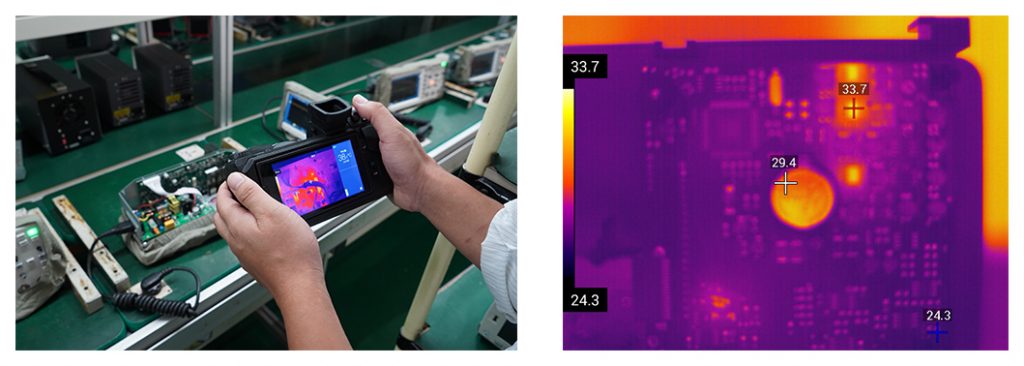

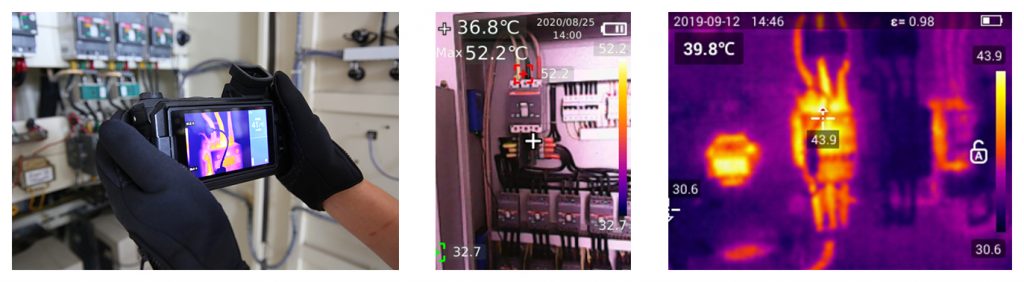

Solar panel inspection, electric power tower inspection,electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petro chemical,metallurgy,industry etc.
