UTi384M

Intelligent Pro-grade Thermal Camera
Rated 0 out of 5
(be the first to review)

UTi384M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step, so that first-time users can also become experts! UTi192M/UTi384M is equipped with a high intensity light, so that you can easily take clear visible light and infrared contrast pictures, easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature  (1500℃ ) for different applications.

Description

Intelligent Pro-grade Thermal Camera

UTi384M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step, so that first-time users can also become experts! UTi192M/UTi384M is equipped with a high intensity light, so that you can easily take clear visible light and infrared contrast pictures, easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature  (1500℃ ) for different applications.

Features :

  • 4” Touch display screen (480×800 Pixels)
  • IR resolution: 384×288
  • Temperature measurement range: -20℃ to 650℃ , external lens up to 1500℃ / -4℉ to 1202 ℉, external lens up to 2732℉
  • Interchangeable lens (Optional Telephoto lens / High Temp lens)
  • Manual focus
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 5 Points/2 Lines/5 Rectangles/5 Circles
  • Image capture
  • Video recording
  • Voice recording
  • Bluetooth connection
  • Digital camera resolution: 5MP
  • Digital zoom: 1.1~4x (continuous zoom)
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
  • Isotherm : 2(Above, Below)
  • LED flashlight
  • Laser pointer
  • Wi-Fi connection through Mobile APP
  • PC software analysis and real-time image projection
  • Replaceable battery pack
  • IP54

Product Specifications of UTi384M

Technical Data
IR resolution (Pixels) 384×288
Display 4” LCD Touch (800×480)
Field of view(FOV) 28.4°×21.5°
Thermal sensitivity(NETD) ≤45mK
Spatial resolution(IFOV) 1.29mrad
Frame rate ≤25Hz
Focus Manual
Temperature measurement range  -20℃~650℃(standard lens)
650~1500℃ (optional lens)
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Functions
Color palettes 8
(White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 5 Points/2 Lines/5 Rectangles/5 Circles
Digital camera resolution 5MP
Digital zoom 1.0~4x continuous
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
Isotherm 2
(Above, Below)
Software analysis PC
Video recording
Voice recording
Wi-Fi / Bluetooth
Bluetooth
Laser pointer
General Characteristics
Battery Detachable Li-ion battery (7.2V 2300mAh)
Battery operation time  ≥ 4 hours
USB HDMI,Micro USB
IP rating IP54
Storage 16GB Internal, 16GB Micro SD card
Image/Video storage format Pic: JPEG
Video: irgd
Certificates CE,FCC,RoHS
Languages ZH, EN, FR, DE, IT, ES, SV, PL, CZ, PT, RU, JA, KO, NL, HU
Product net weight 840g
Product size 274mm×106mm×78mm
Packing Details
Standard accessories Lithium battery, Adapter, Adapter plugs, USB cable, Wristband, HDMI cable, CTP gloves, Quick start guide, English manual, TF card
Standard individual packing Toolbox,Gift box
Standard Qty per carton 1
Standard carton size 480mm×370mm×235mm
Standard carton G.W. 7.6kg

Applications of UTi384M

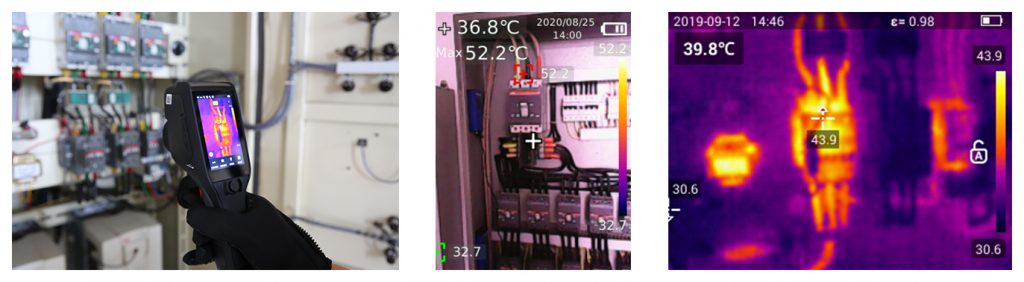

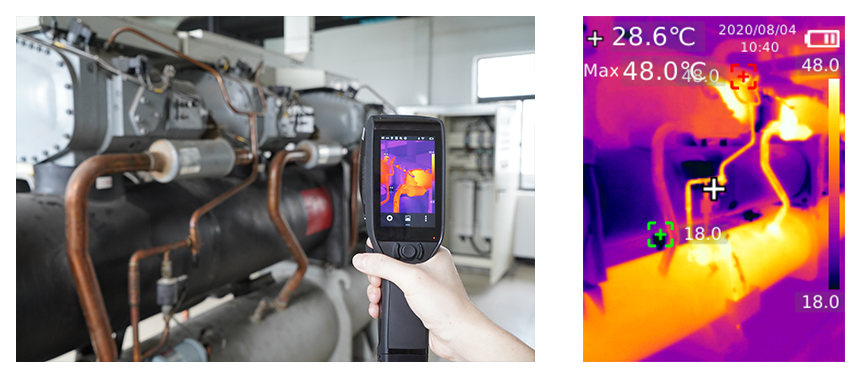

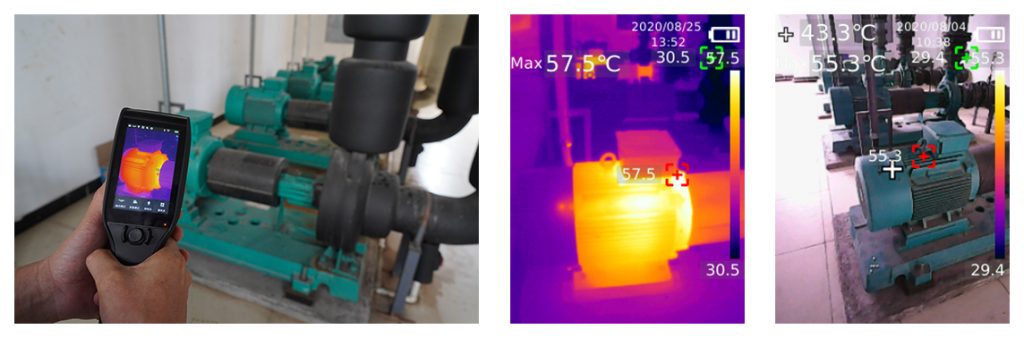

Solar panel inspection, electric power tower inspection,electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petro chemical,metallurgy,industry etc.
