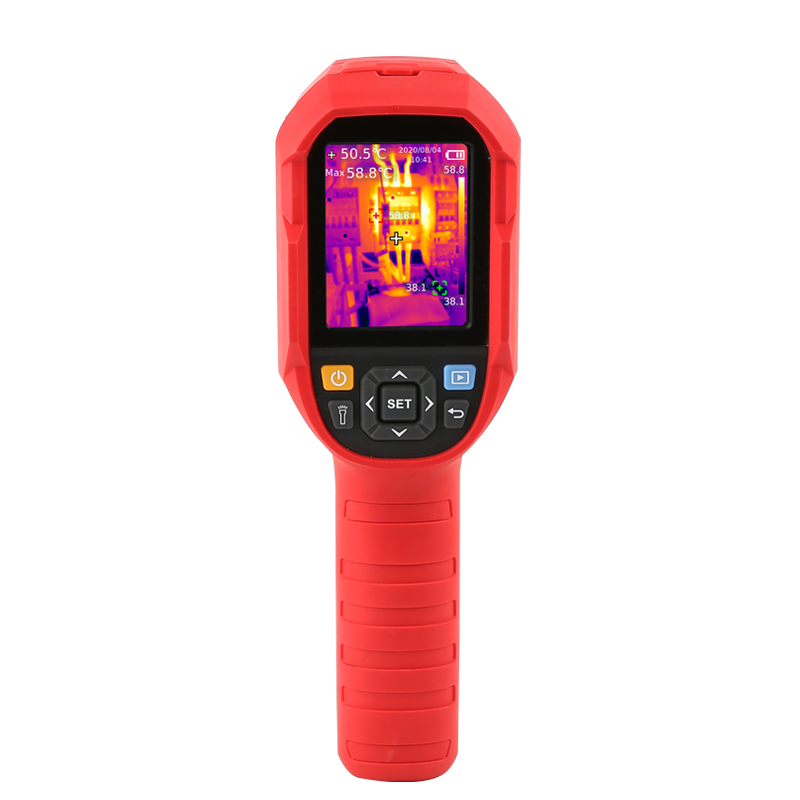

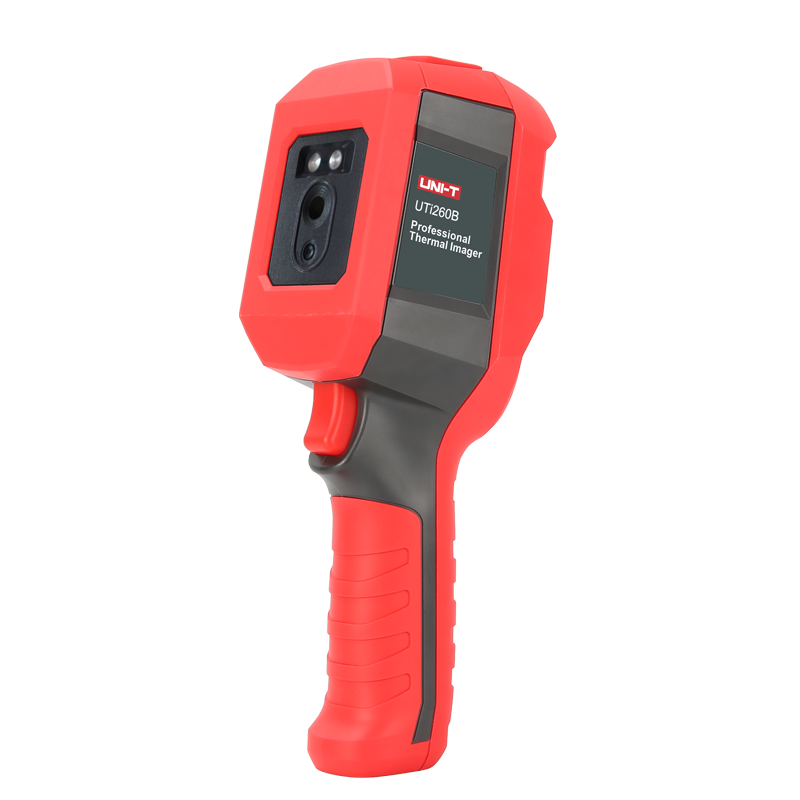

UTi260B

Heavy Duty Thermal Camera
Rated 0 out of 5
(be the first to review)

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture.  It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Description

Heavy Duty Thermal Camera

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture.  It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Features :

  • Durable and user-friendly
  • 2.8” TFT display screen (320×240 Pixels)
  • IR resolution: 256×192
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points
  • Image capture
  • Image modess: Thermal,Visual image,Fusion,PIP
  • Digital camera resolution: 640×480
  • Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • LED flashlight
  • PC software analysis and real-time image projection)
  • Rechargeable Li-ion battery

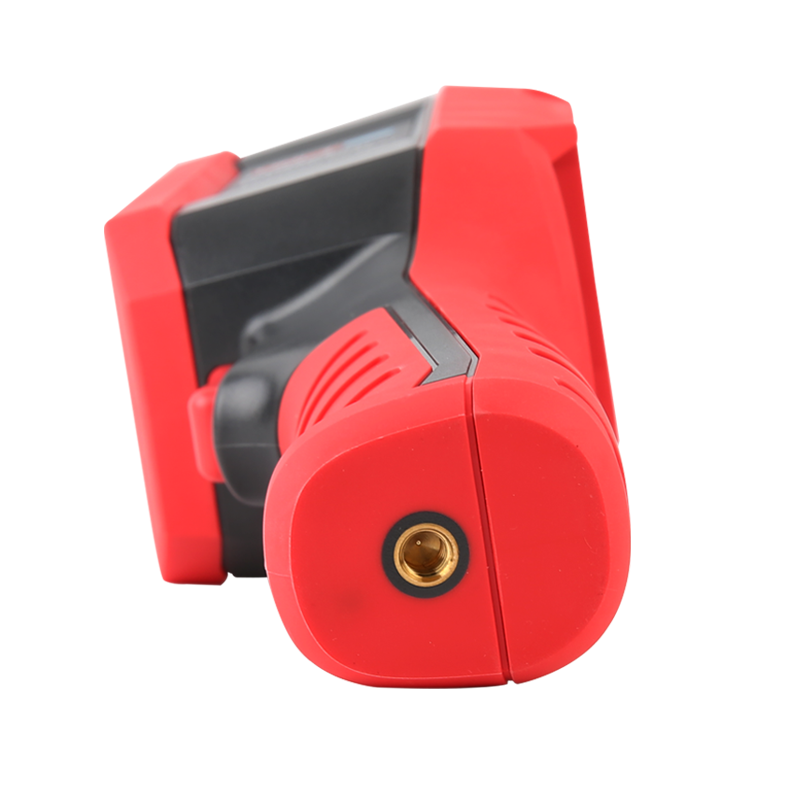

  • 1/4”Tripod Mounting Hole
  • IP65
  • 2m drop proof

Product Specification of UTi260B

Technical Data
IR resolution (Pixels) 256×192
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range   -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 3 Points
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time  ≥ 6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 10
Standard carton size 500mm×315mm×295mm
Standard carton G.W. 10.1kg

Applications of UTi260B

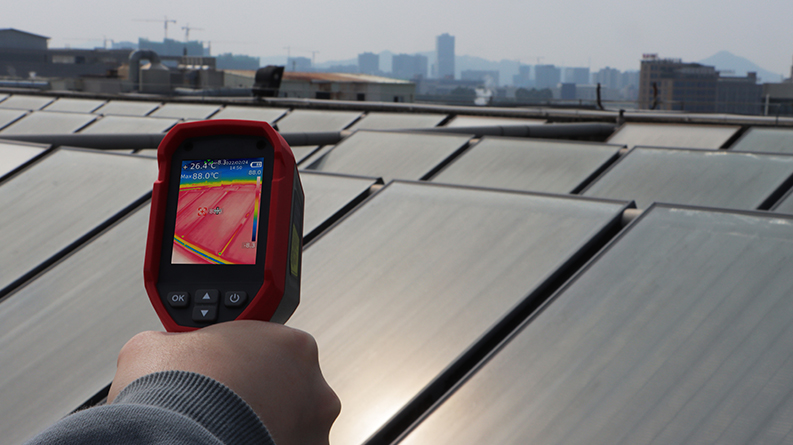

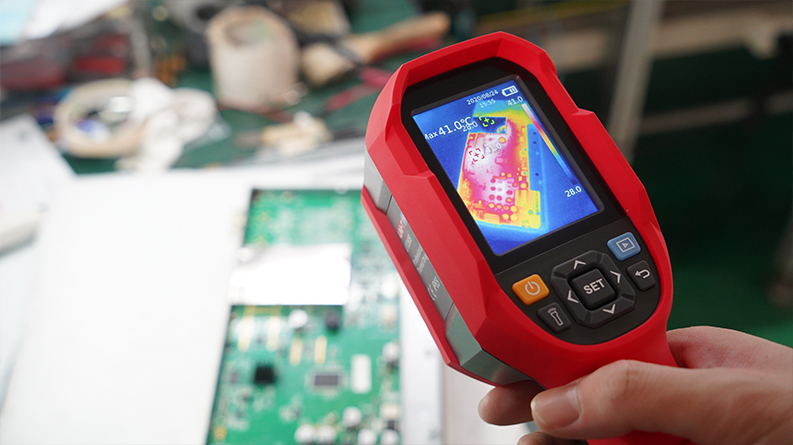

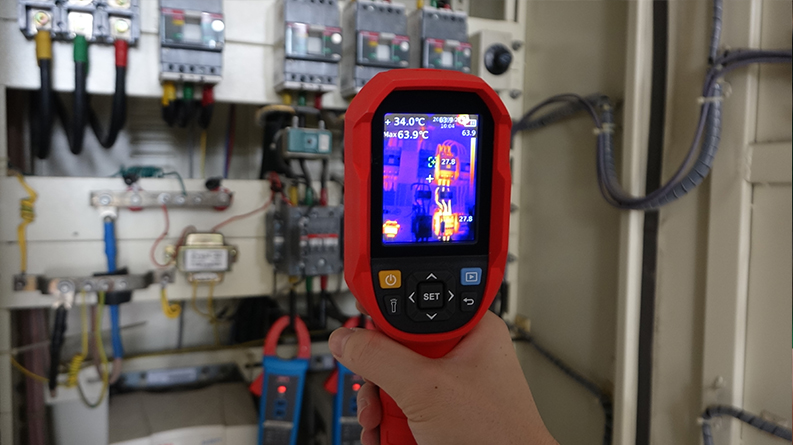

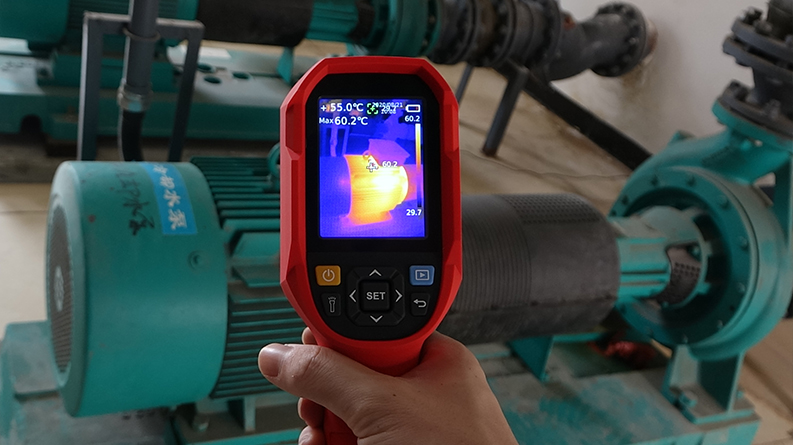

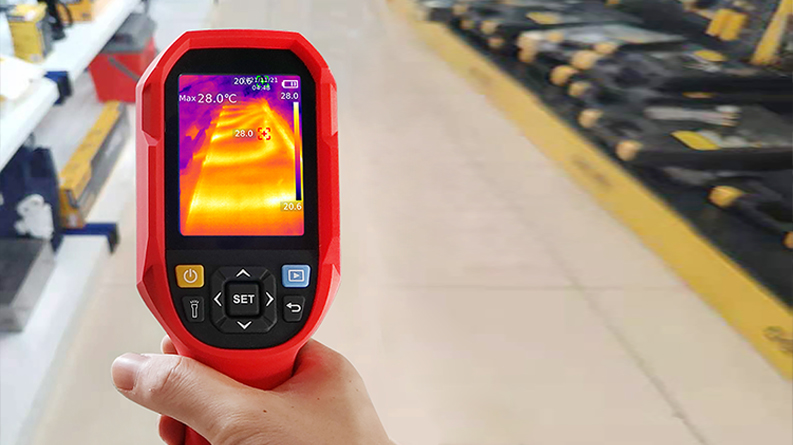

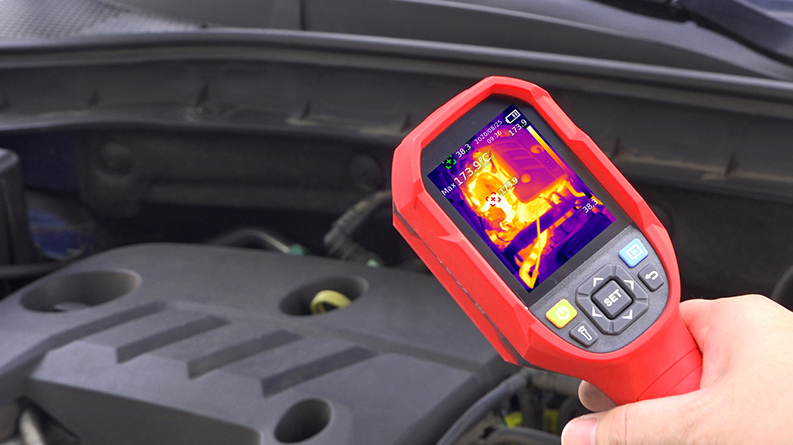

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.

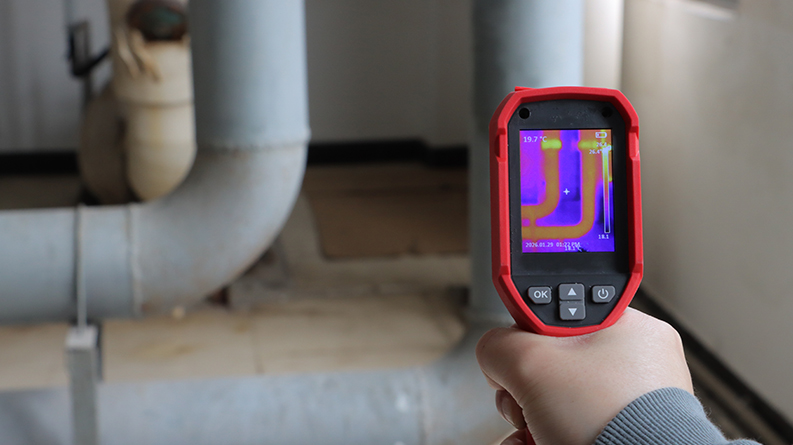

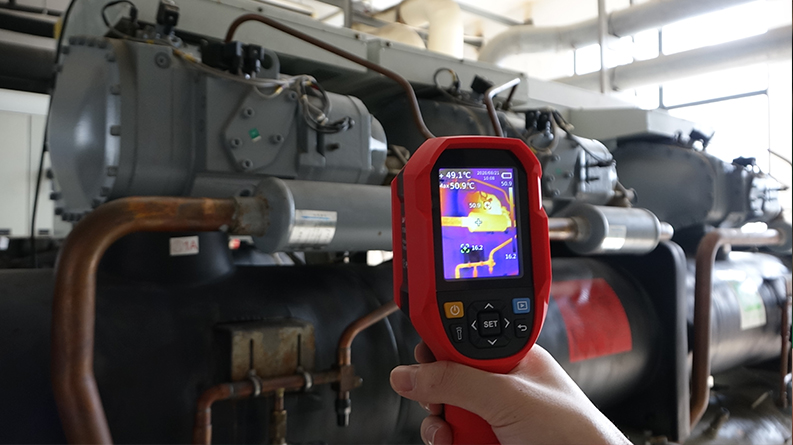

Pipeline Inpsection

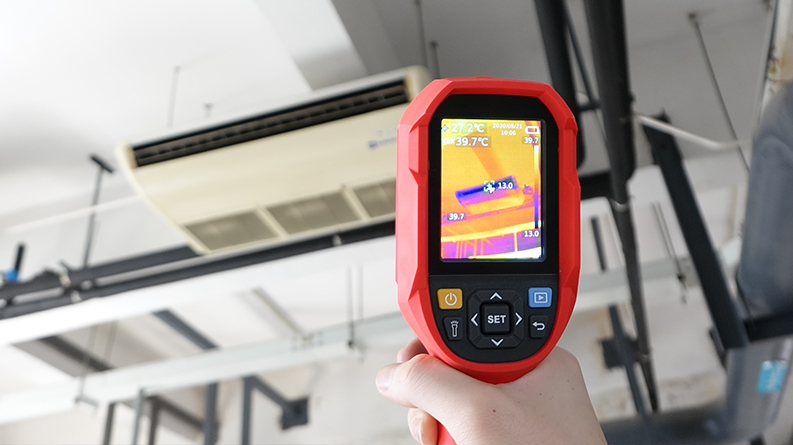

HVAC inspection
