UTi165K (Discontinued)

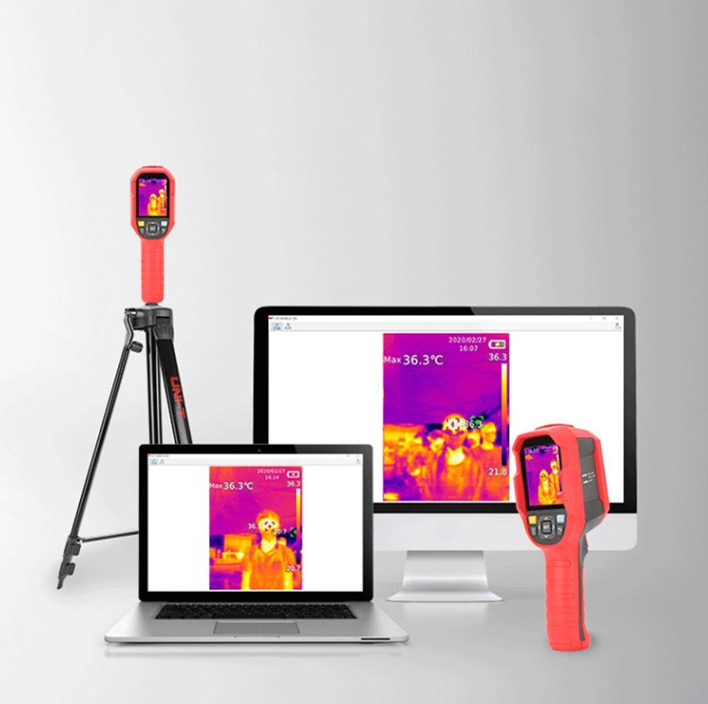

UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.
Description
Elevated Skin Temperature Thermal Cameras
UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also support real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.
Features :
- Durable and user-friendly
- IR resolution: 160×120
- 8” TFT display screen (320×240 Pixels)
- Temperature measurement range: 30℃ to 45℃
- Auto alarm for high temperature
- Image modess: Thermal,Visual image,Fusion
- Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
- PC software analysis
- Real-time image projection
- RIO
- LED flashlight
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
Product Specifications of UTi165K
| Technical Data | |
| IR resolution (Pixels) | 160×120 |
| Display | 2.8”TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤50mk |
| Spatial resolution(IFOV) | 6.1mrad |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | 30℃~45℃ (86℉-113℉) |
| Accuracy | ±0.5° (@25˚C ambient temperature) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC) |
| Image modes | Thermal,Visual Image,Fusion |
| On screen analyzer | 3 Points |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| Software analysis | PC |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 6 hours |
| USB | Type-C |
| Storage | 32G Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,FCC,RoHS |
| Product net weight | 910g |
| Product size | 236mm×75.5mm×86mm |
| Packing Details | |

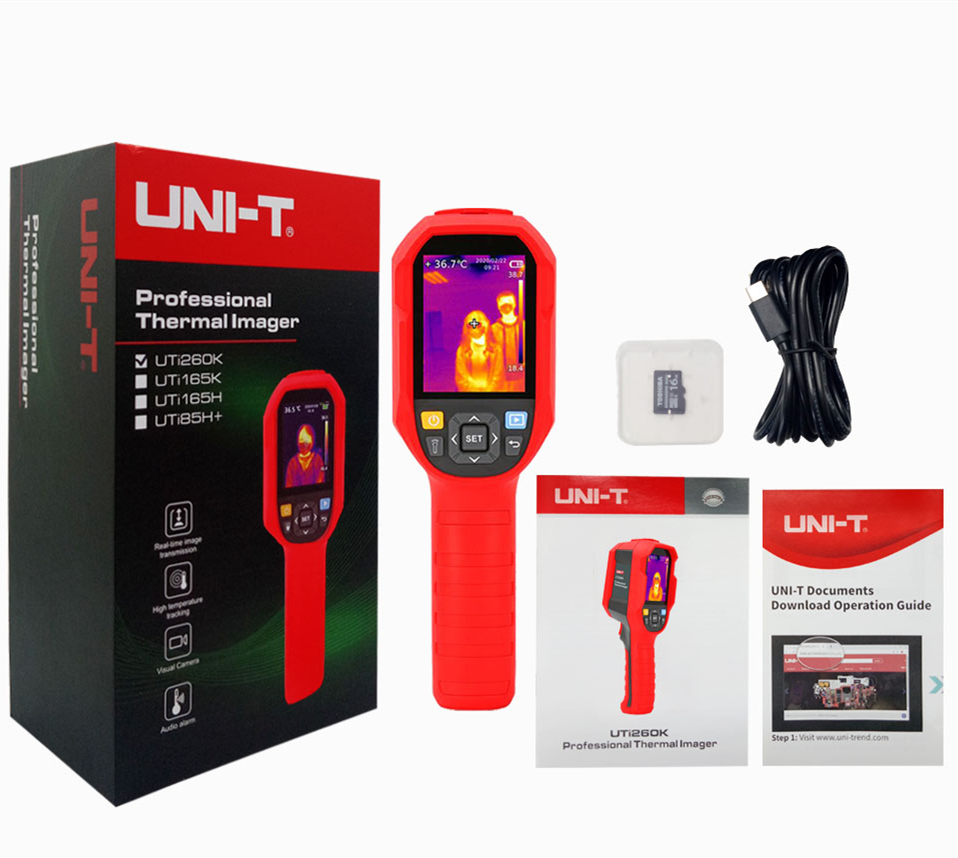

| Standard accessories | Type-C USB cable, Micro SD card, English manual |
| Standard individual packing | Gift box |
| Standard Qty per carton | 10pcs |
| Standard carton size | 500mm×315mm×295mm |
| Standard carton G.W. | 2.2kg |
Application of UTi165K
The thermal camera can be widely used in factories, office buildings,shopping malls, schools, airport,subway,community, residential quarters, etc.
