UTi120M

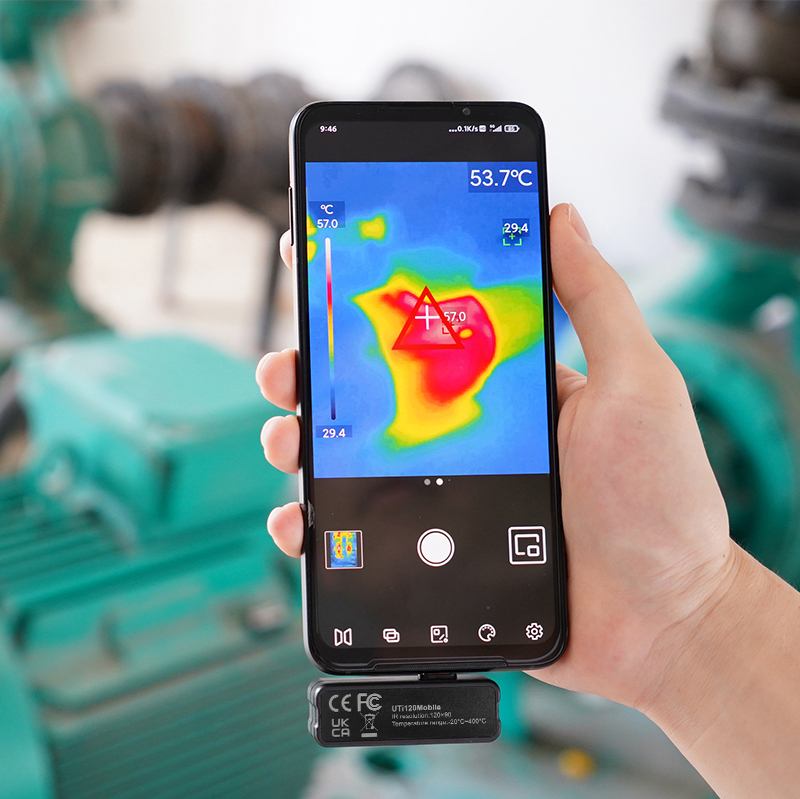

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
Description
Smartphone Thermal Camera Module for Android
UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
Features :
- IR resolution: 120×90
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
- Image capture
- Video recording

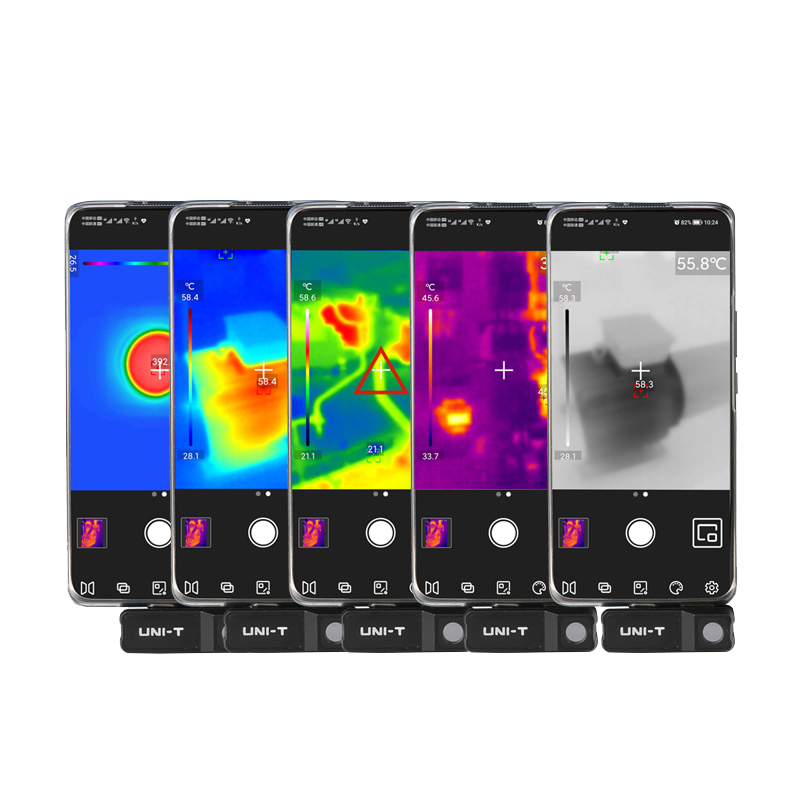

- Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android (USB Type-C interface)
- 1m extension cable
- 1m drop proof
Product Specifications of UTi120M
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal,Fusion,PIP |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Drop proof | 2m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
| Packing Details | |
| Standard accessories | Micro USB adapter, USB cable, English manual, Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 20pcs |
| Standard carton size | 290mm×265mm×325mm |
| Standard carton G.W. | 4.8kg |
