UT568A

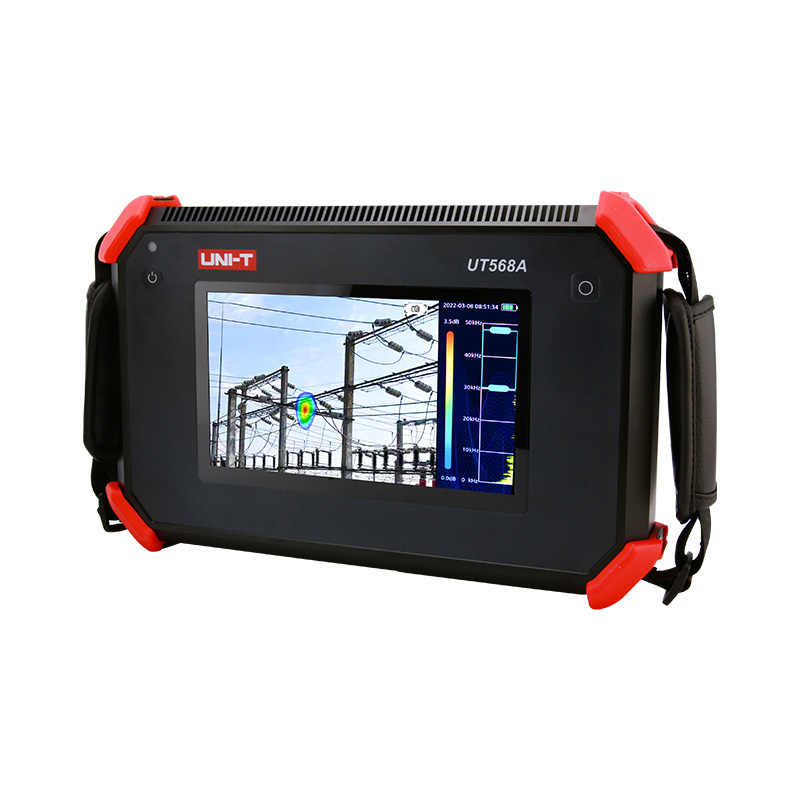

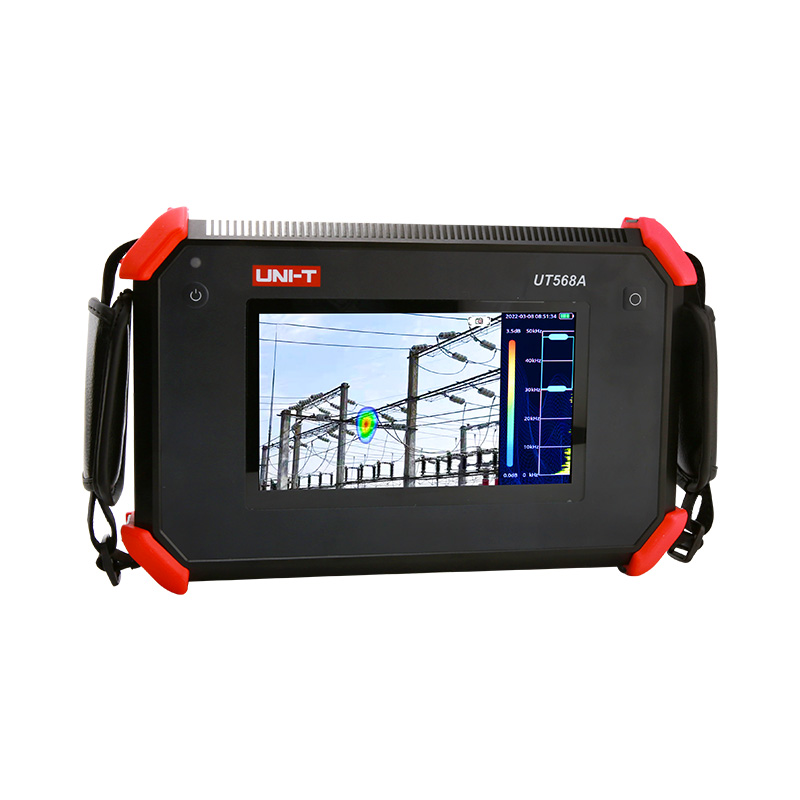

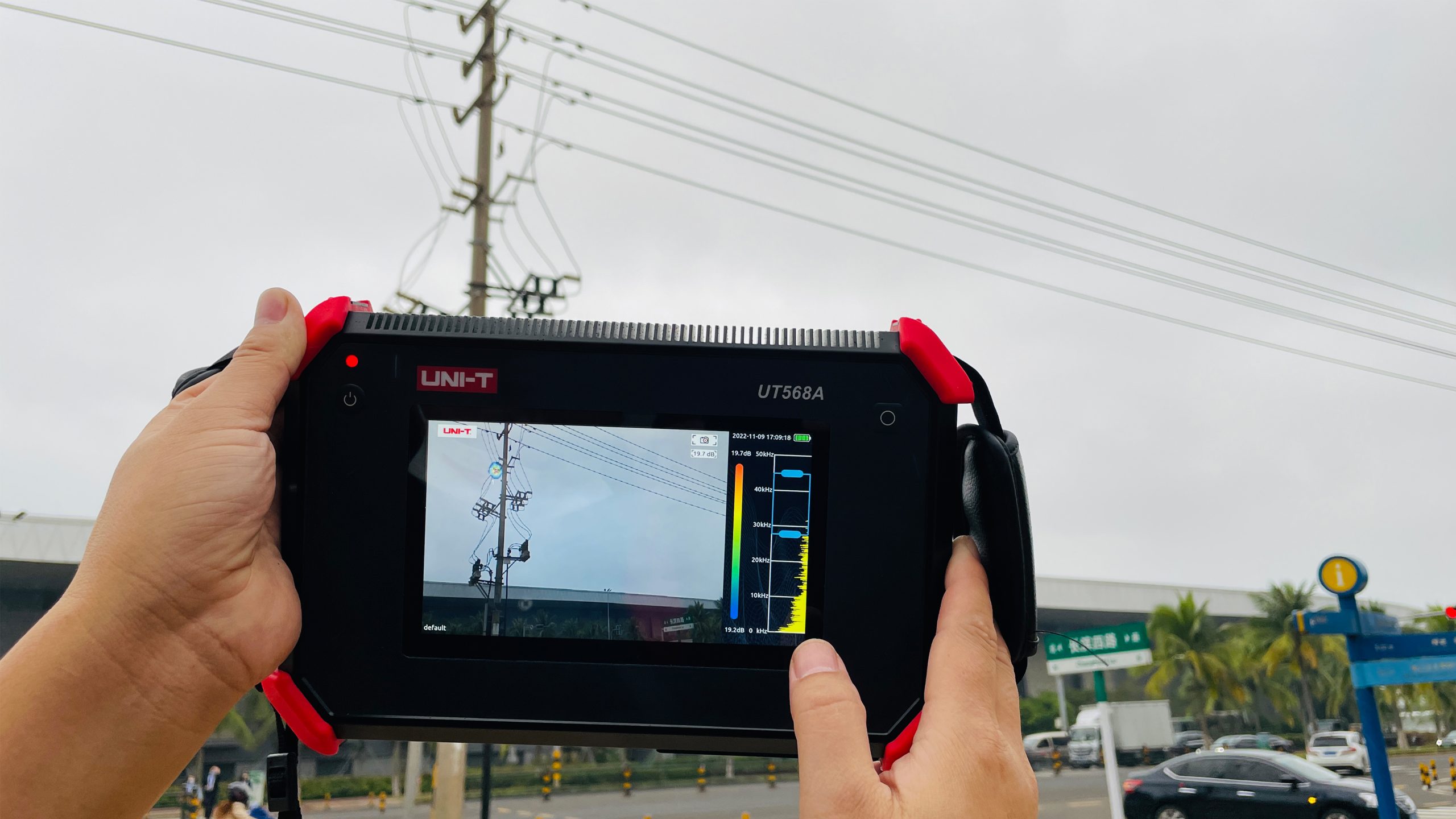

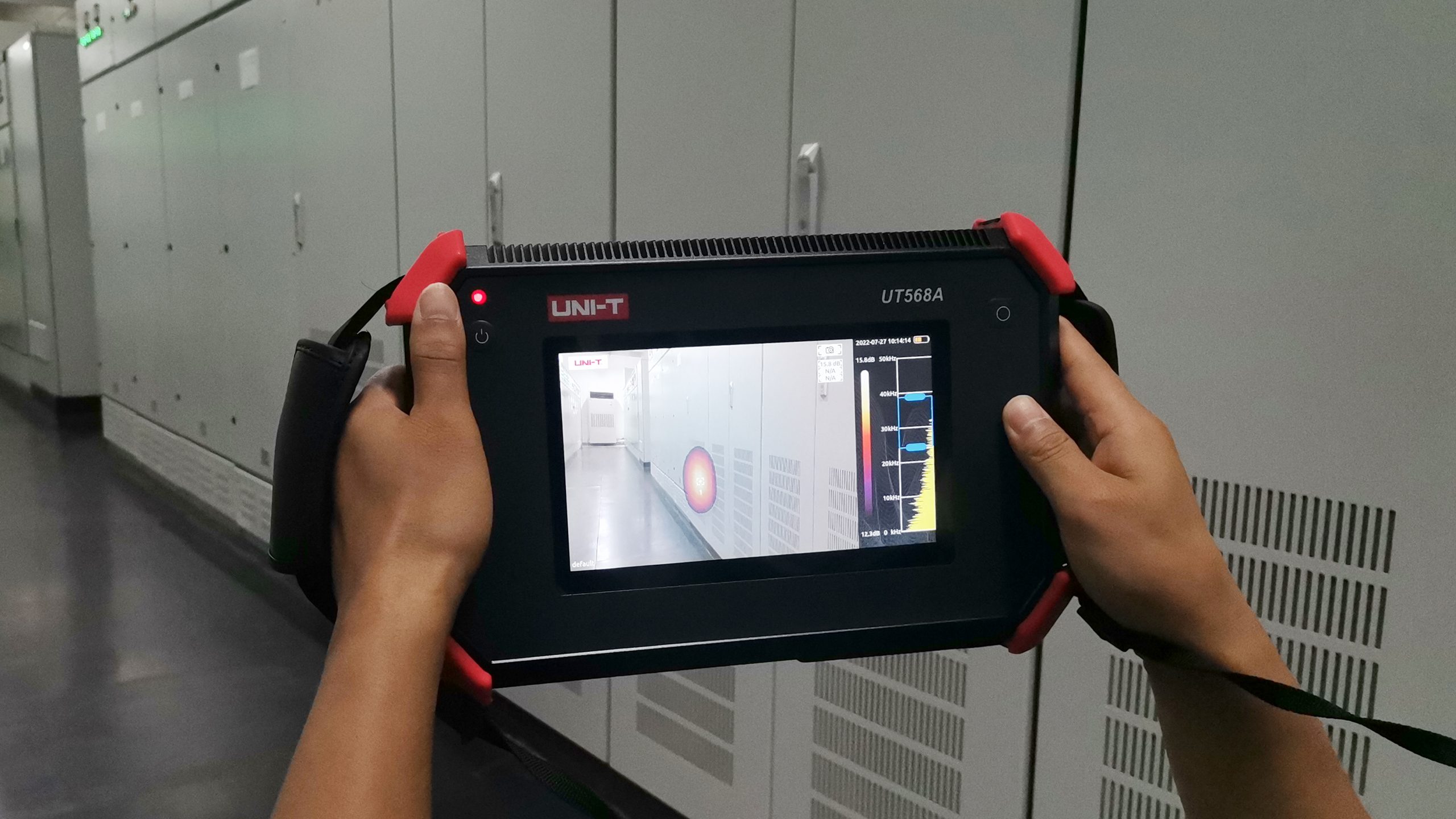

UT568A Acoustic lmager supports the ultrasonic frequency band. Through the combination of the sound source and video image, the constantly changing sound source distribution data is dynamically presented on the display screen, which is convenient for quickly identifying partial discharge phenomena and improving work efficiency.
Description
Features of UT568A Acoustic Imager
Certificates: ROW
● Large LCD, global scanning multi-point acoustic imaging

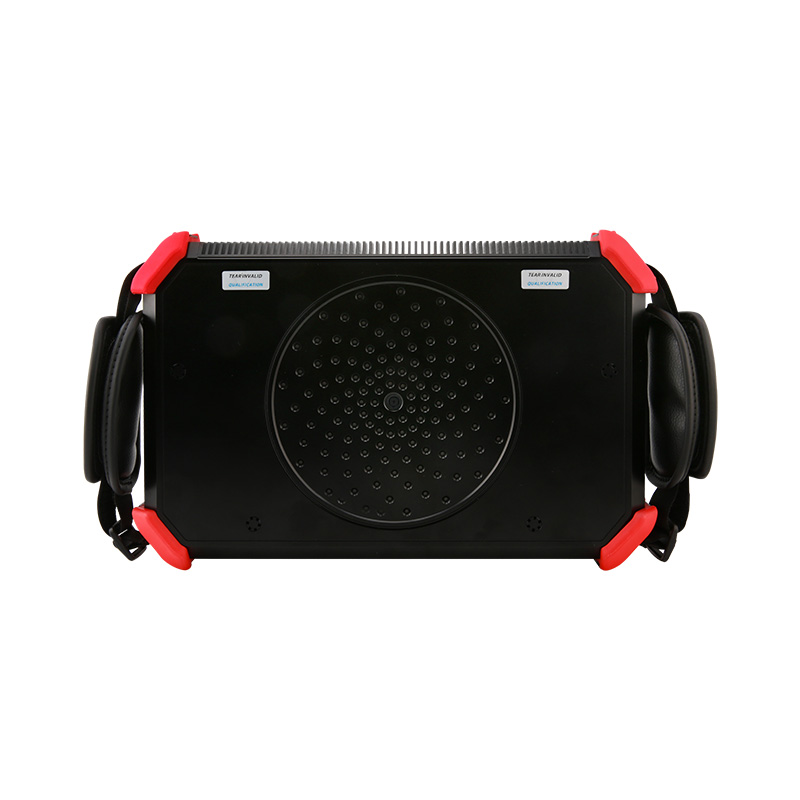

● 128-channel MEMS digital microphone
● Wide FOV of sound image (62°), 25FPS refresh rate, instant imaging
● 2kHz – 48kHz frequency adjustable, plus focus aperture, eliminate interference
● PRPD spectrum to identify the type of partial discharge
● Simple operation and convenient recording (photographing, video, TF card storage)
● IP54 protection level
Specifications
| Technical Specifications | |
| Sensors | |
| Microphones | 128-channel MEMS digital microphone |
| Frequency band | 2kHz ~ 48kHz |
| Field of view (Acoustic) | 62° |
| Frame rate(Acoustic) | >25FPS |
| Sound pressure sensitivity | 30dB-120dB |
| Display | |
| Resolution | 1024*600 |
| LCD size | 7 inch |
| Touch screen | Capacitive touch screen |
| Backlight | Adjustable (under-sunlight readable) |
| Digital camera | |
| Field of view (image) | 62° |
| Focus | 3.04mm (Fixed) |
| Camera resolution | 8 mega pixels |
| Power | |
| Battery capacity | 6600mAh@7.2V |
| Battery life | Around 4 hours |
| Charging interface | USB Type-C; USB PD protocol |
| Battery charging power | Charging power of protecting the battery: around 29W The single battery charging power: around 16W |
| Storage | |
| Extenal storage | TF card supported (up to 64GB) |
| Internal capacity | Around 8G |
| Image & video format | .JPG & .MP4 |
| Working environment | |
| Working conditions | (-10℃- +50℃), (10%-95%; No-condensing) |
| Storage temperature | (-20℃ ~ 40℃) |
| Charging temperature | 10℃ ~ 45℃ |
| Communication interface | |
| Digital export | Type-C(USB 3.0) |
| Audio interface | 3.5mm jack |
| Dimension and weight | |
| Dimensionn | 272mm x 174mm x 42mm (L*W*H) |
| Weight | Around 1.7kg (Hand strap, shoulder strap not included) |
